System Relay: Testing and Inspection

ON-VEHICLE SERVICE

POWER RELAY CHECK

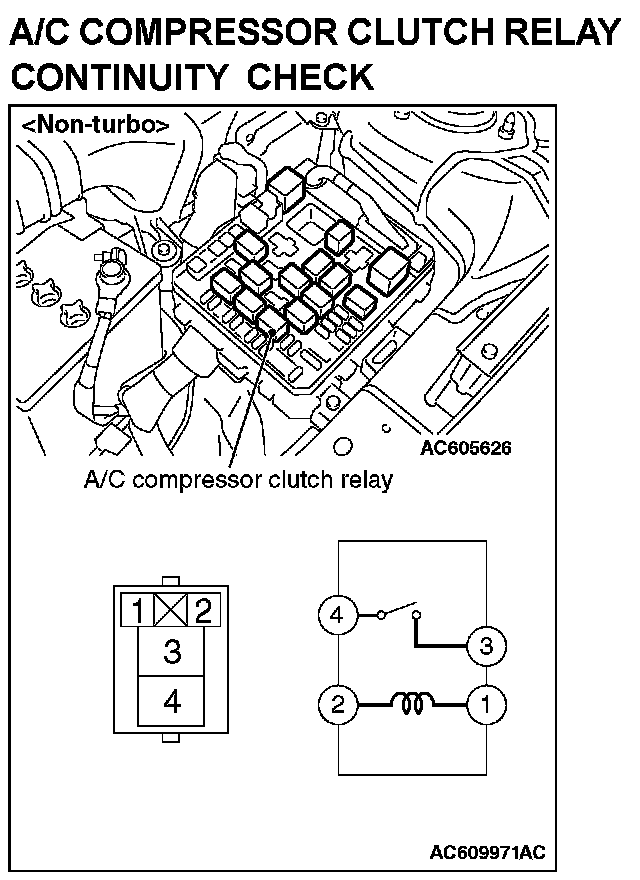

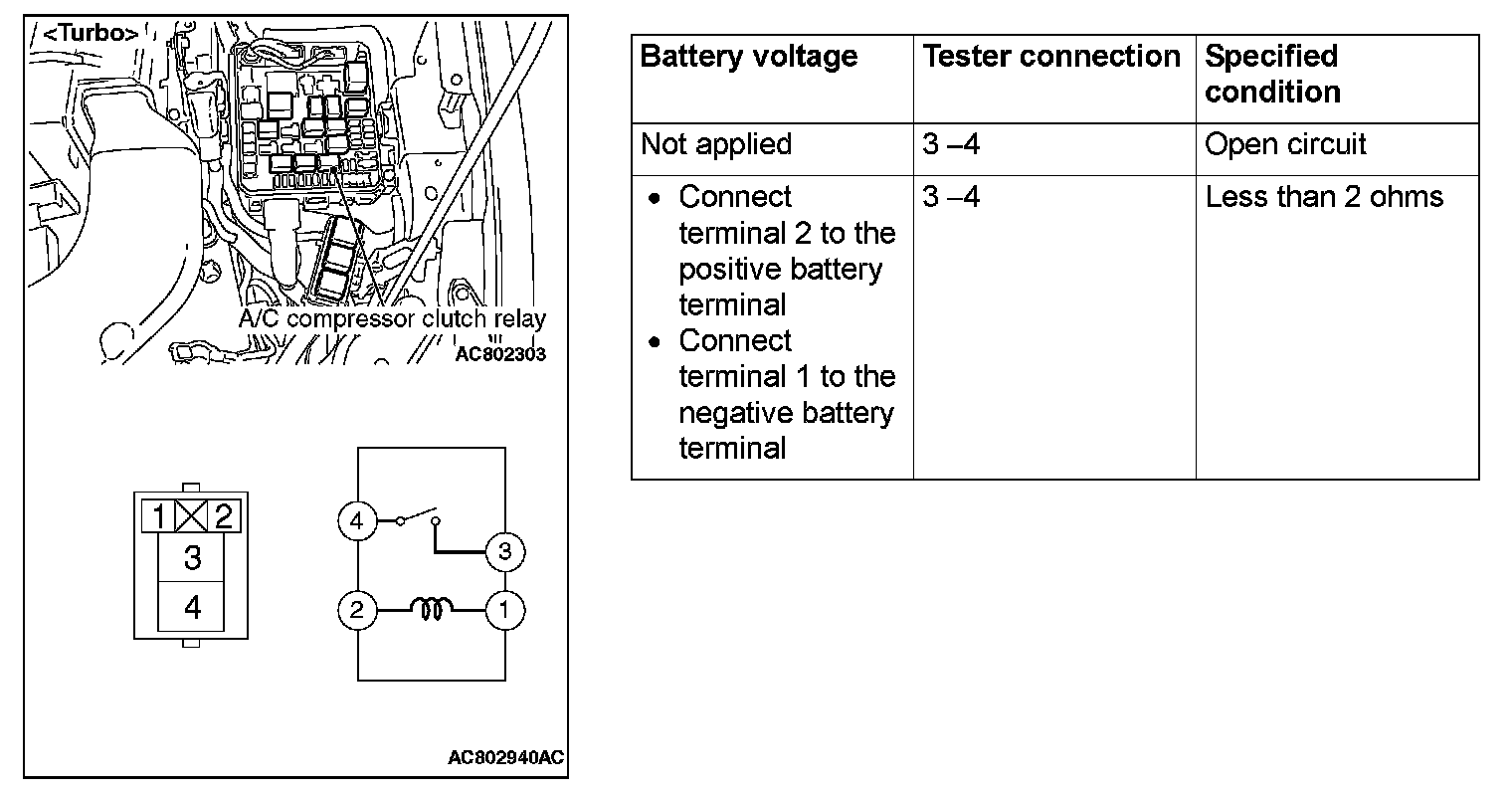

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK
