Home >> Mitsubishi >> 2011 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Specifications

Instrument Cluster / Carrier: Specifications

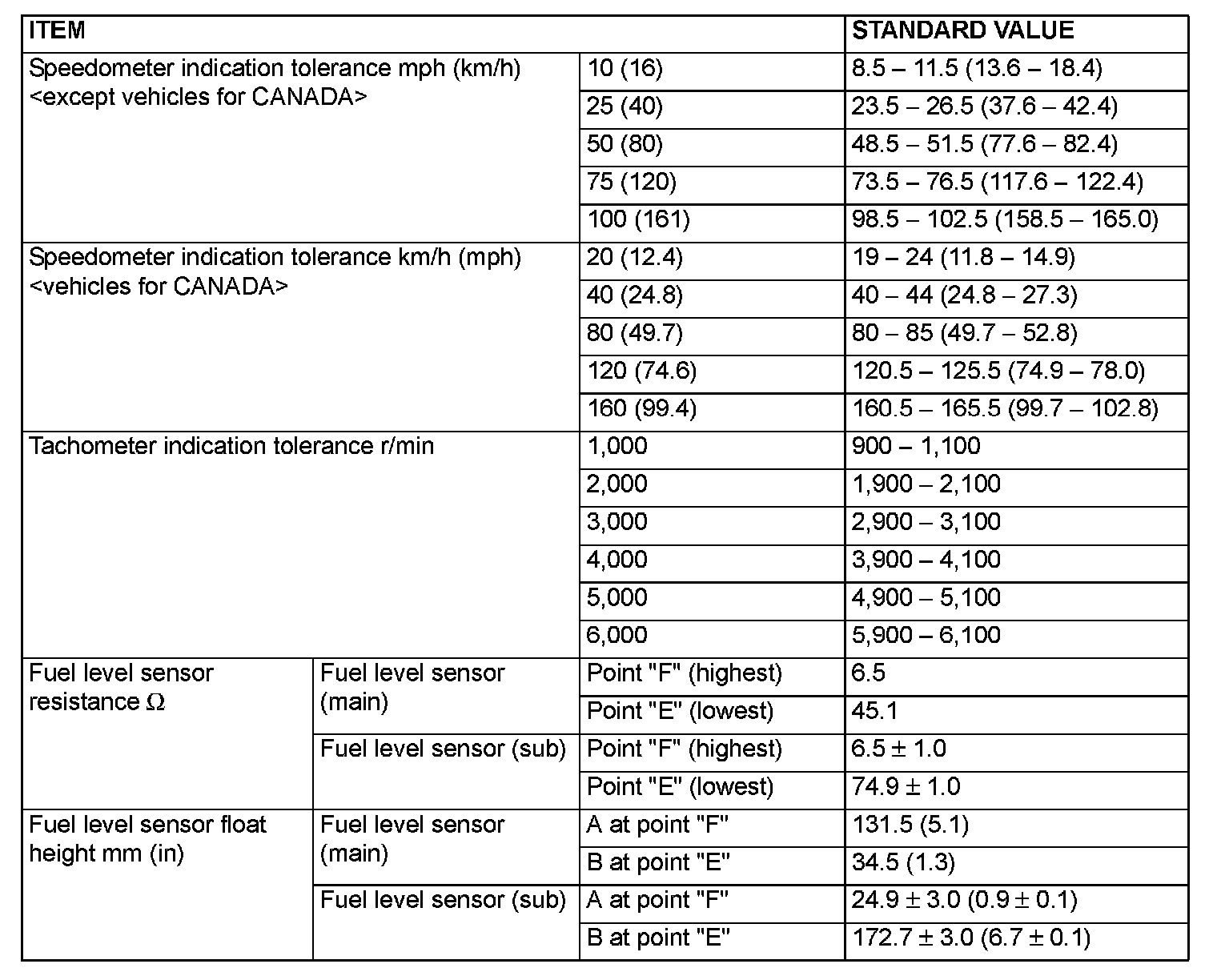

SERVICE SPECIFICATIONS

[COMBINATION METER]
