Door Ajar Warning Tone Alarm [A/T]
Door Ajar Warning Tone Alarm [A/T]

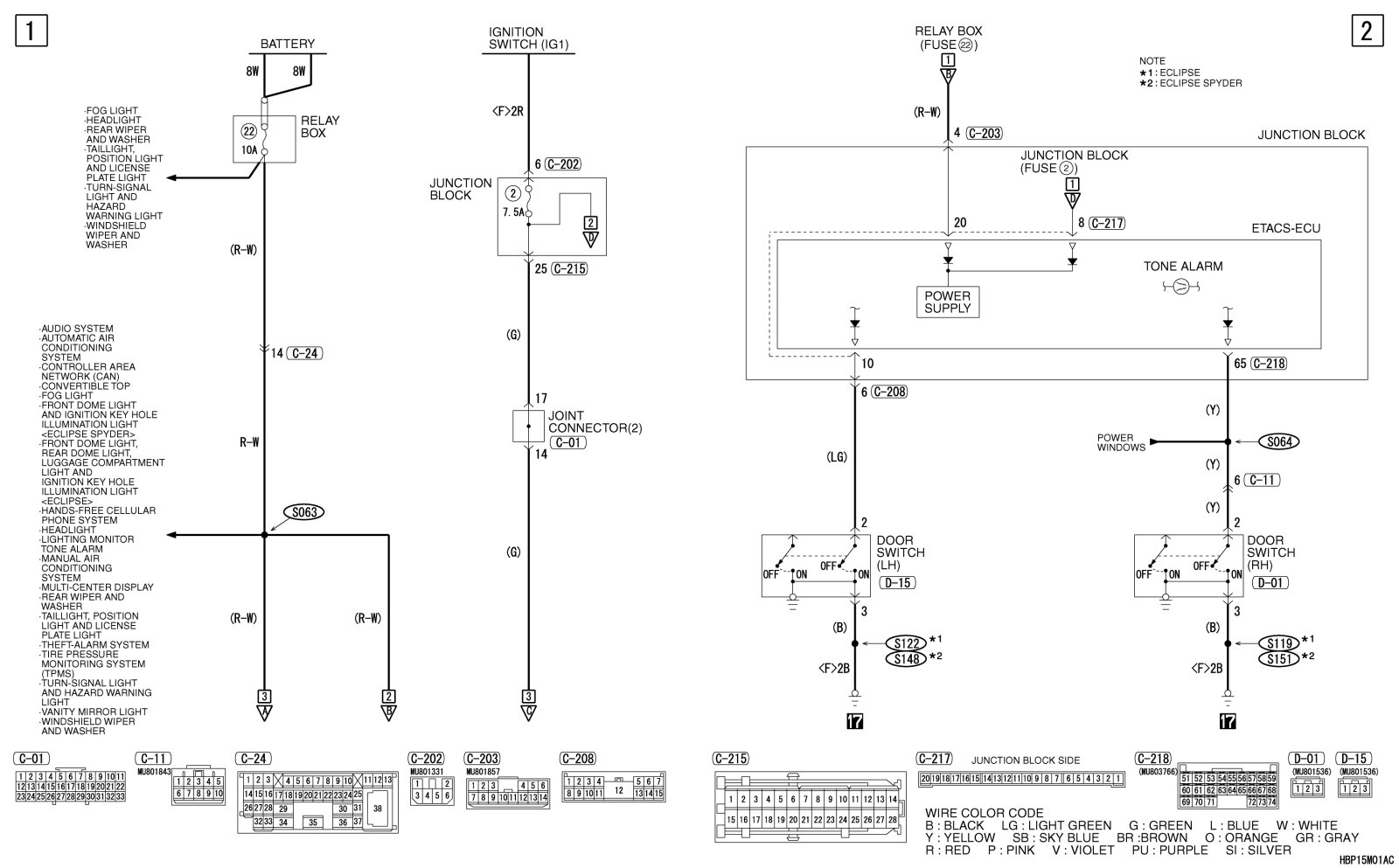

DOOR AJAR WARNING TONE ALARM [A/T]
