Overhaul

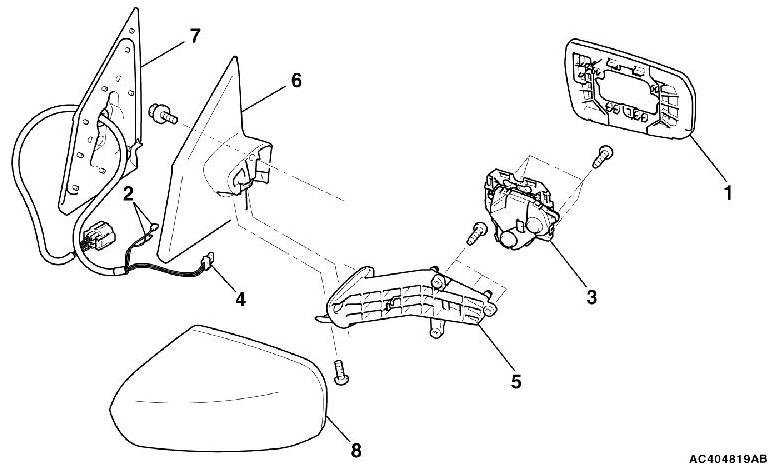

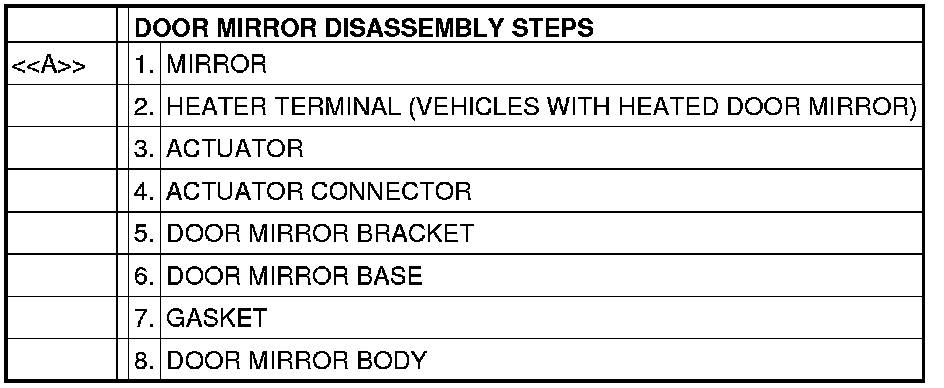

DISASSEMBLY AND ASSEMBLY









DISASSEMBLY SERVICE POINT

[[A]] MIRROR REMOVAL





CAUTION:
The claws of the mirror are prone to breakage when working in cold temperatures. Always warm up the mirror claws and their periphery to 20°C(60°F) or higher before handling.

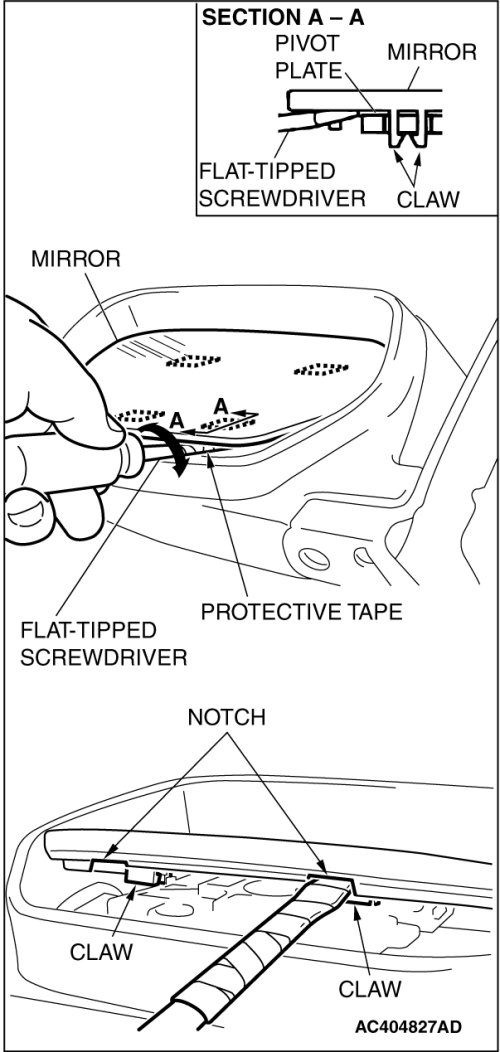

Slant the mirror upward with your hands. Then insert a flat-tipped screwdriver wrapped with protective tape between the pivot plate and mirror through the notch from behind the mirror. Now pry off the mirror claws and remove mirror as shown.
