Antilock Brakes / Traction Control Systems

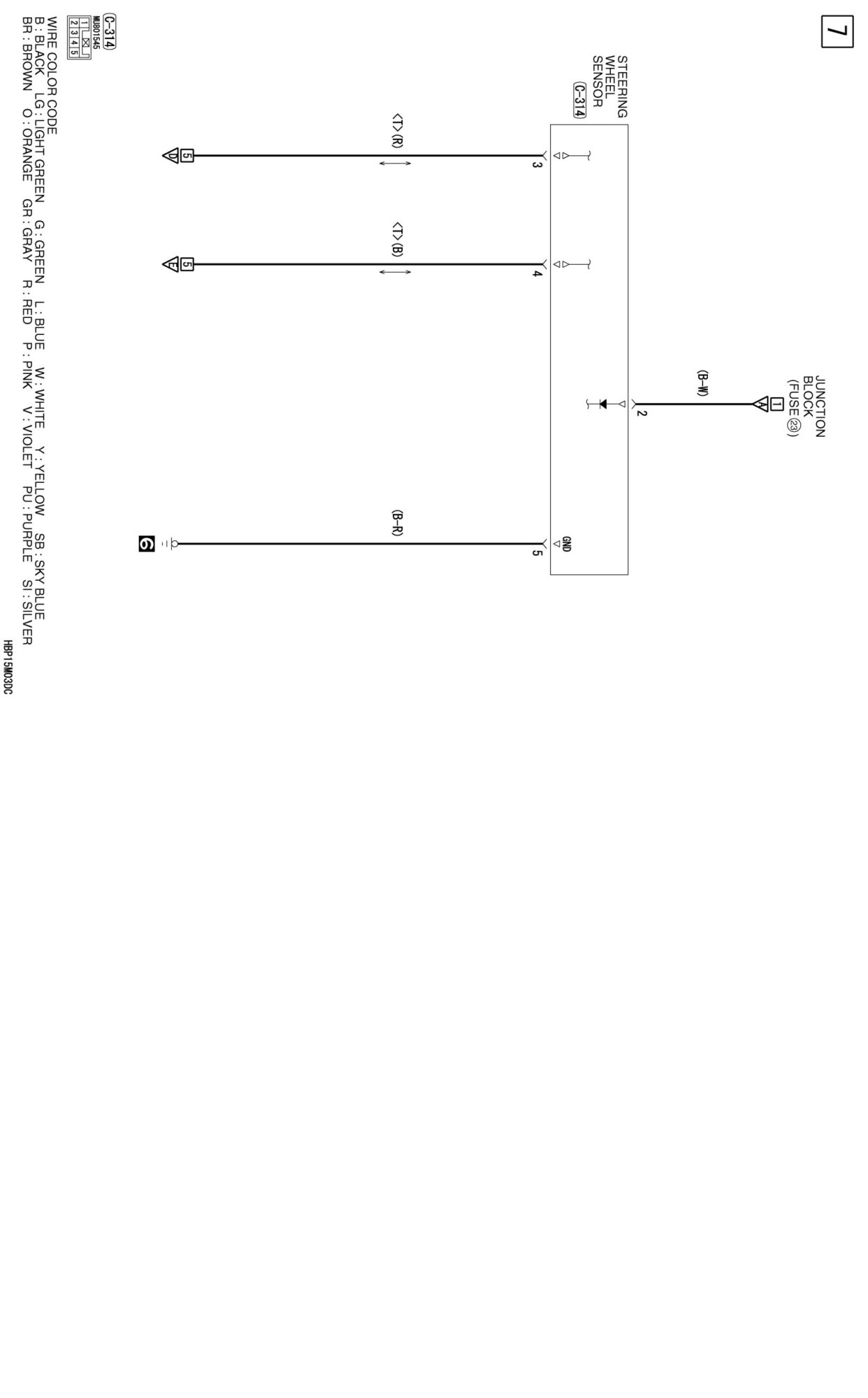

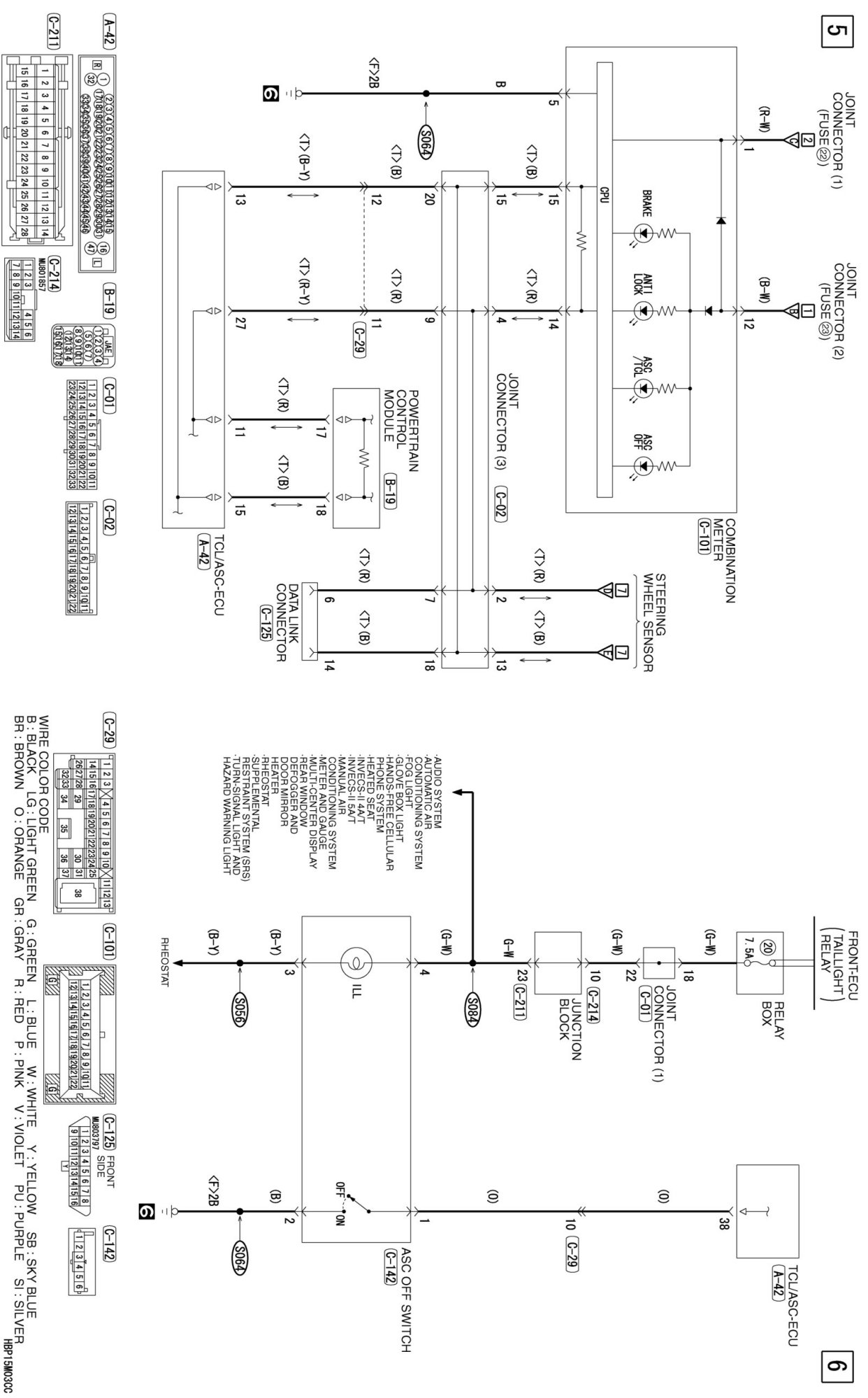

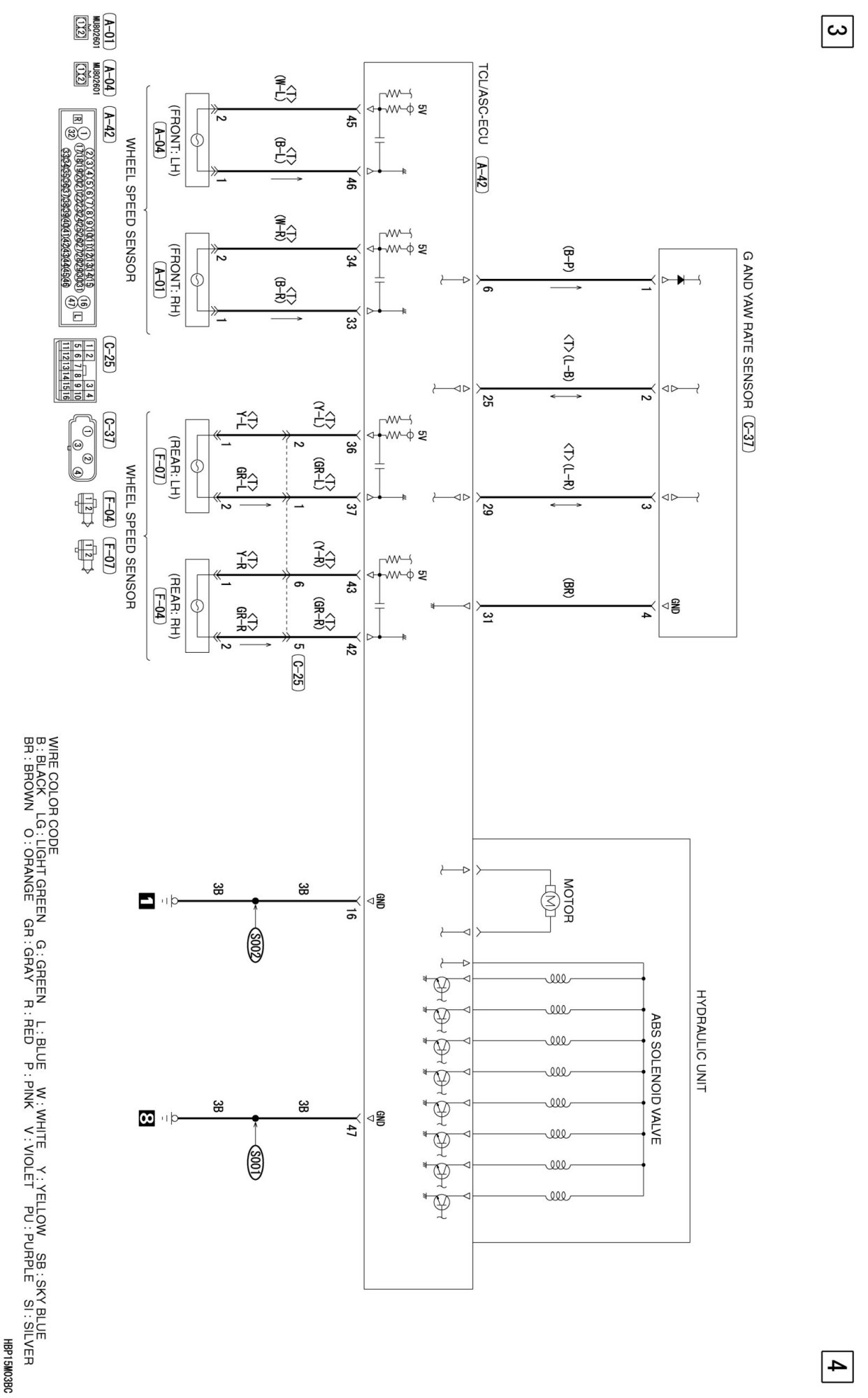

ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD), ANTI-LOCK BRAKING SYSTEM (ABS) AND ACTIVE STABILITY CONTROL SYSTEM(ASC)
