Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2011
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

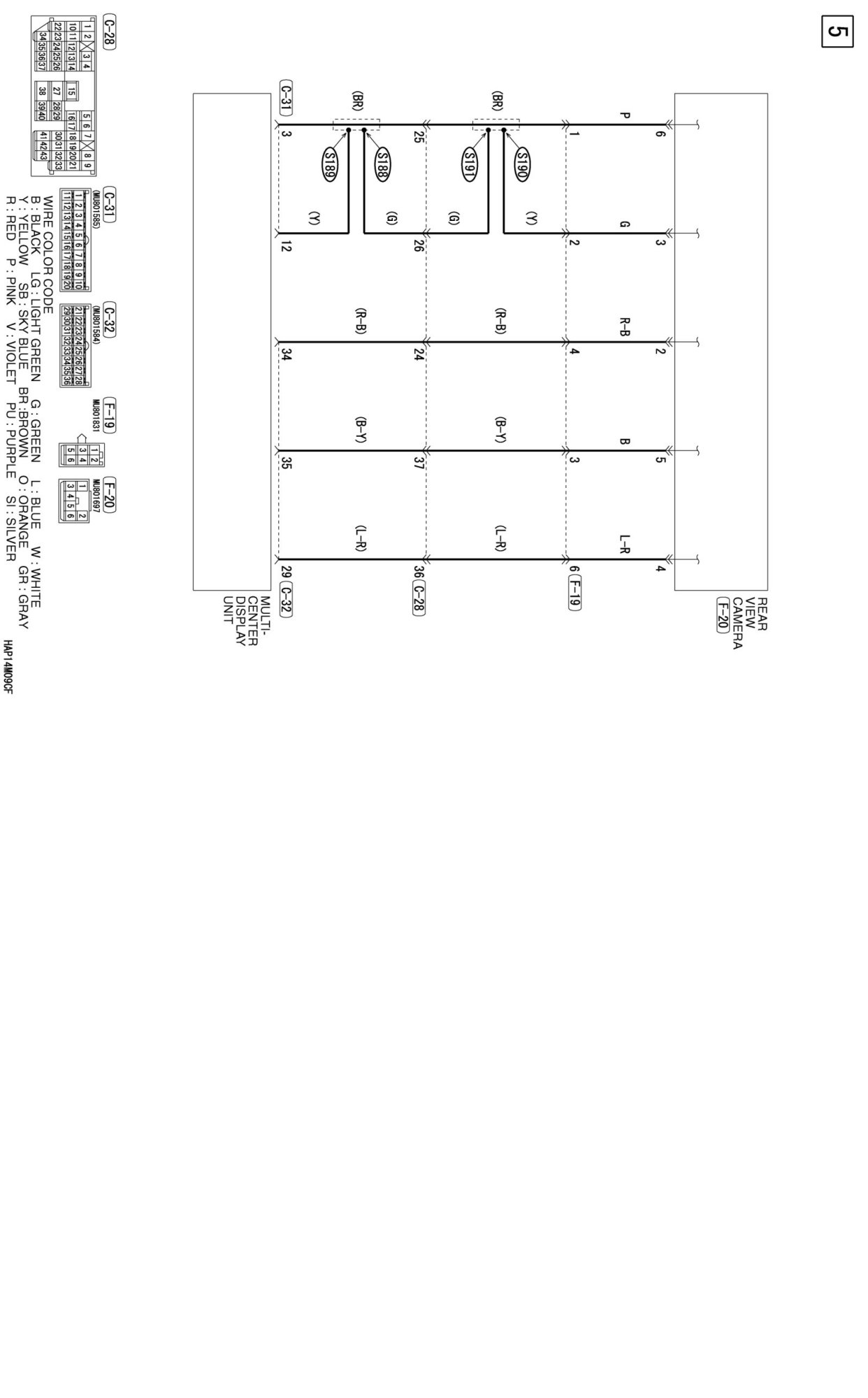

Rear Vision Camera
>>
Rear View Camera
Rear View Camera
REAR VIEW
CAMERA
