Rear Vision Camera
>>

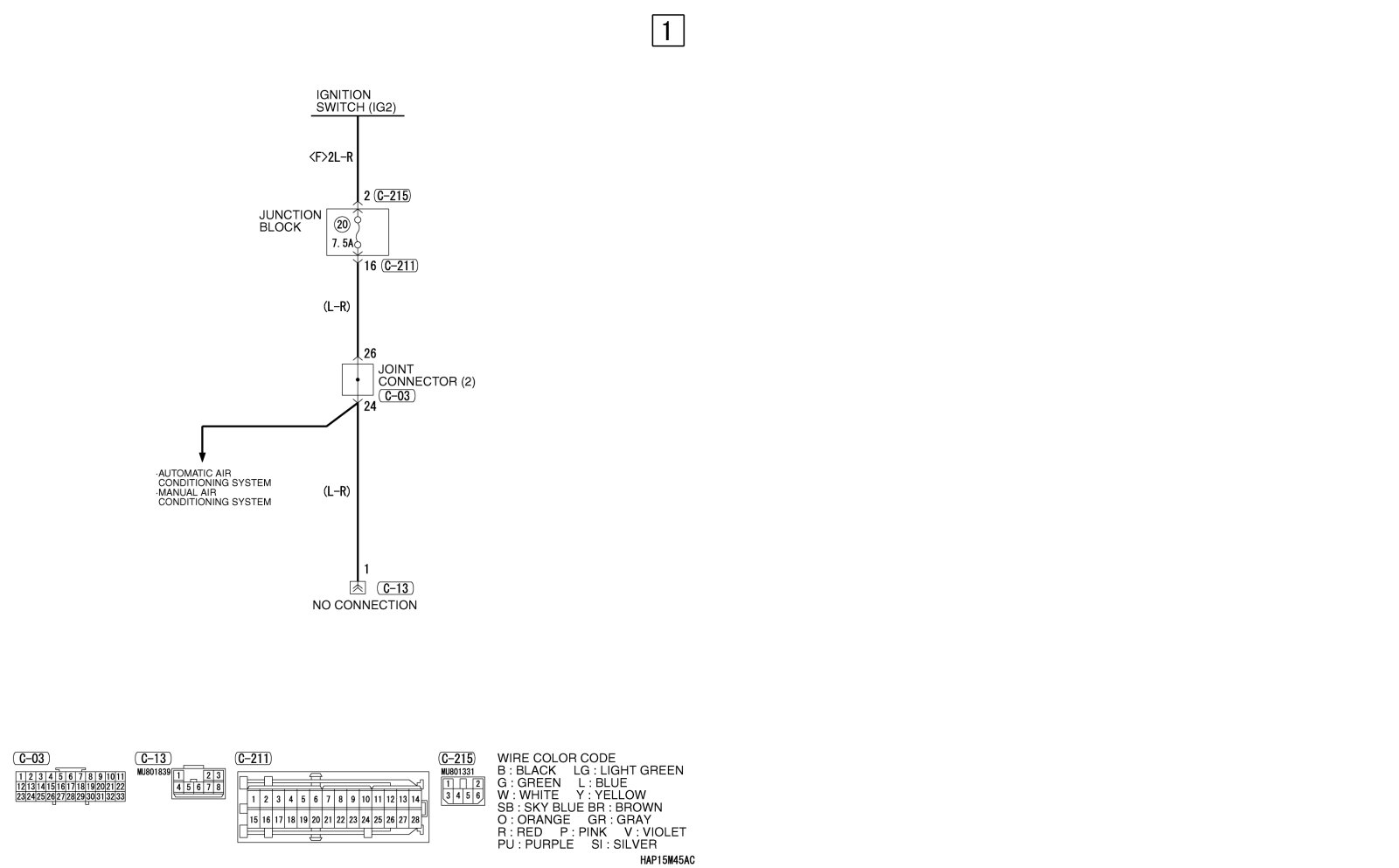

Spare Connector (For Rear View Camera)
Spare Connector (For Rear View Camera)
SPARE CONNECTOR
(FOR REAR VIEW
CAMERA
)
