System Relay: Testing and Inspection




POWER RELAY CHECK

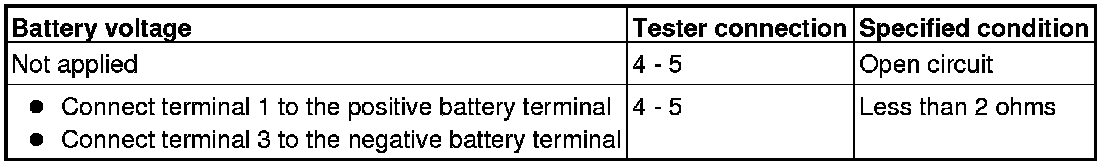

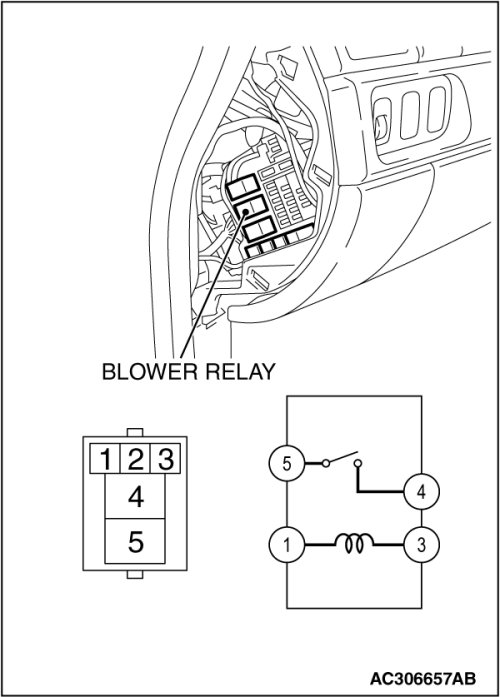

BLOWER RELAY CONTINUITY CHECK

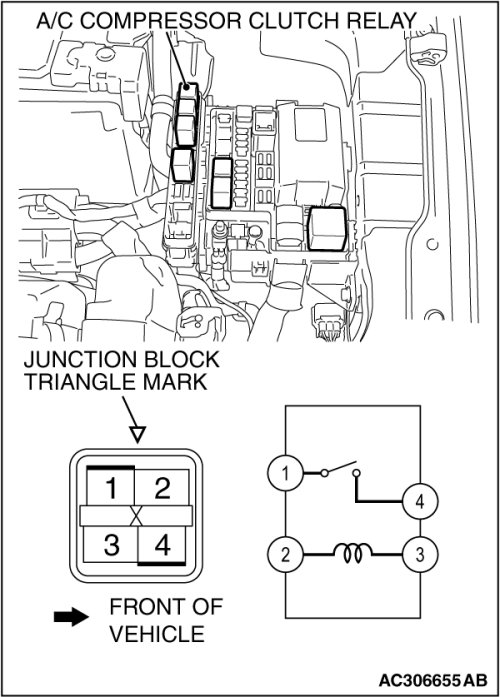

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK










FAN CONTROL RELAY CONTINUITY CHECK
