Dome Lamp: Service and Repair

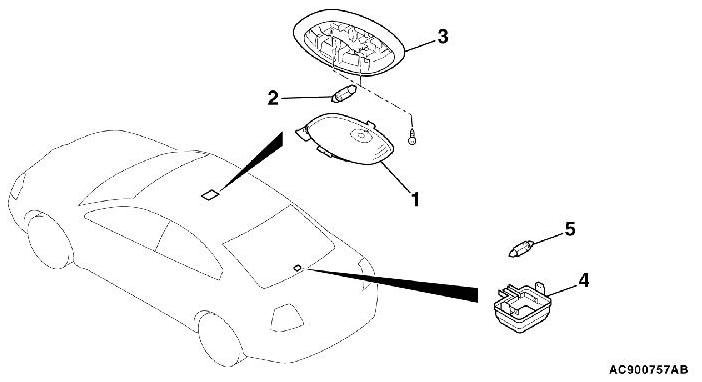

REMOVAL AND INSTALLATION

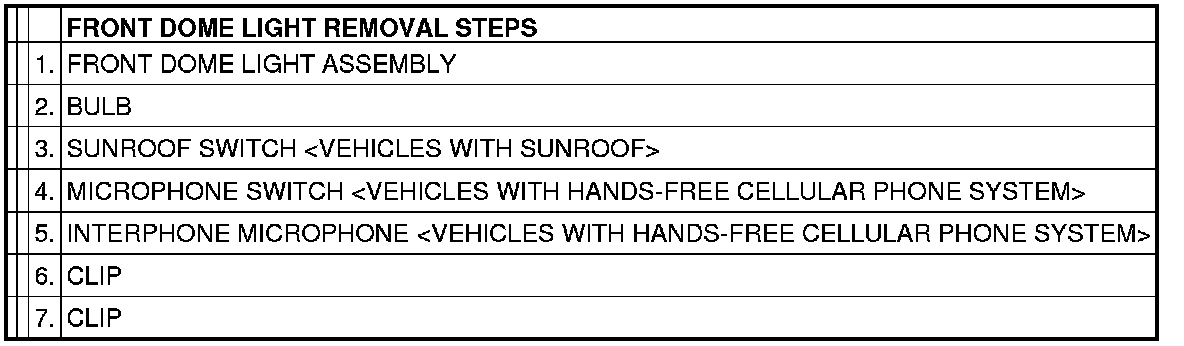

[FRONT DOME LIGHT]

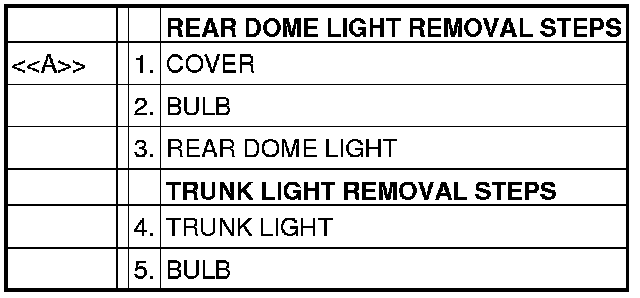

[REAR DOME LIGHT AND TRUNK LIGHT]









Required Special Tool:

- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] COVER REMOVAL





Use special tool MB990784 to remove the cover as shown in the illustration.
