Mitsubishi
>>
2011
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

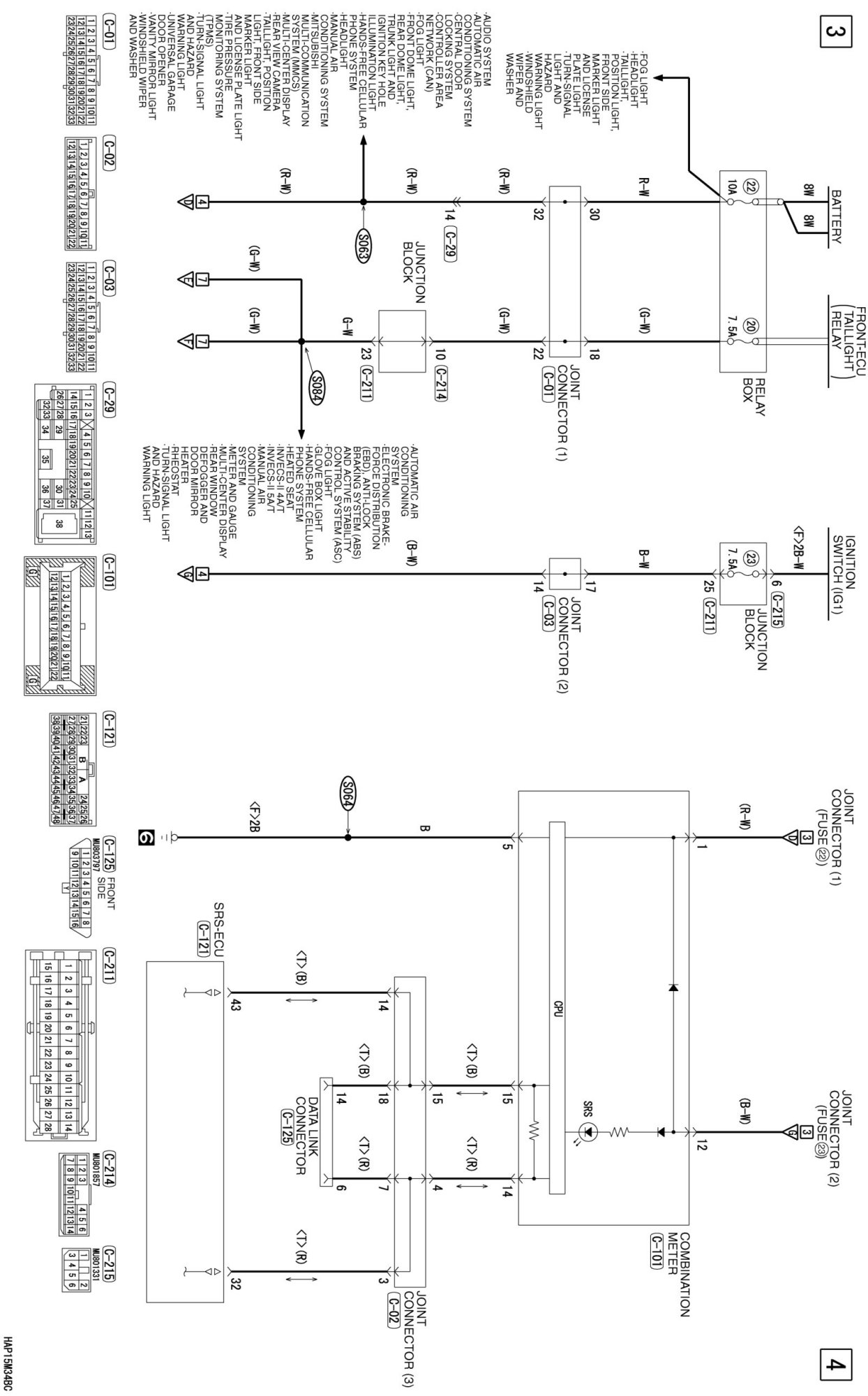

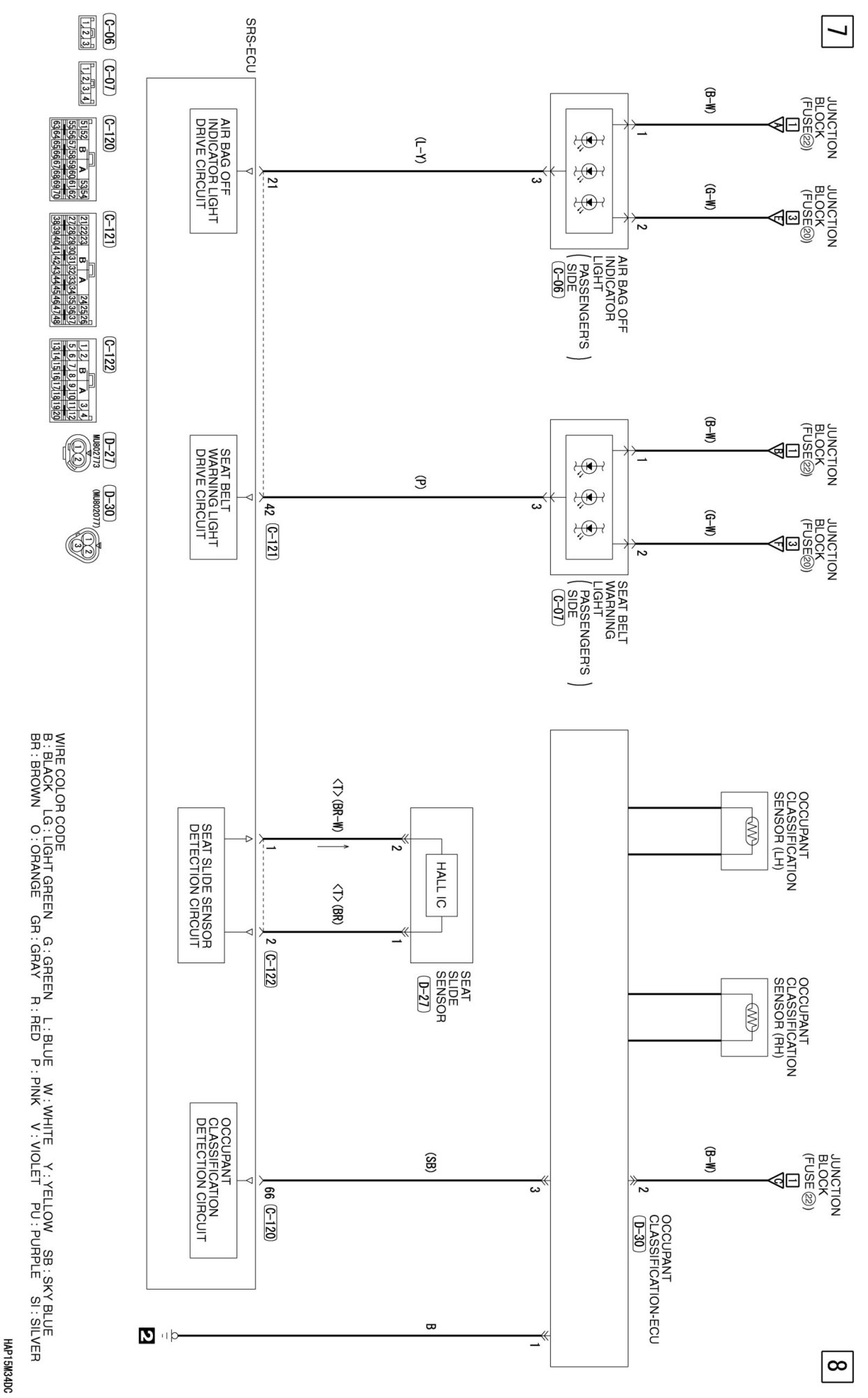

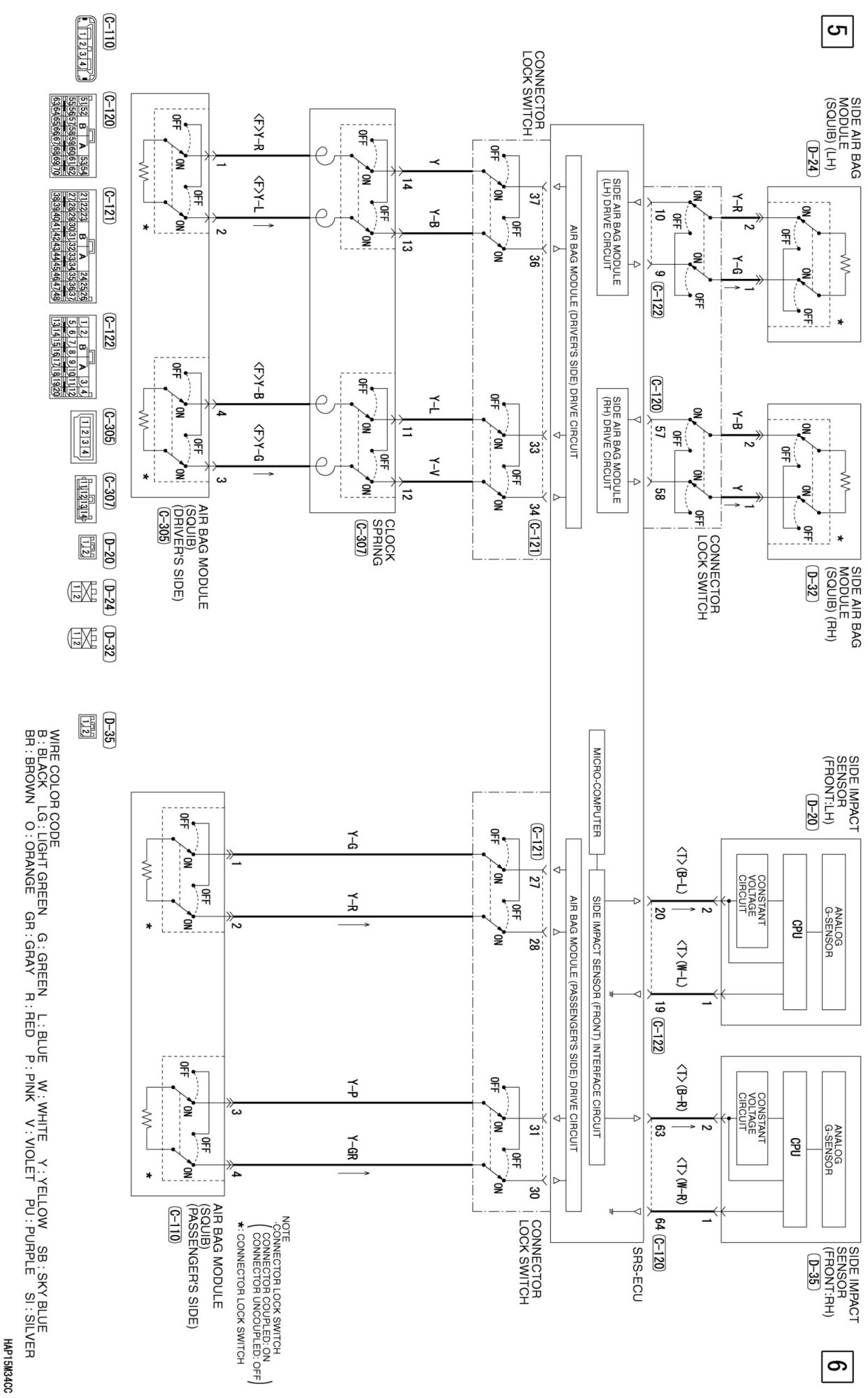

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
