SRS Air Bag Special Connector

GENERAL INFORMATION

SRS AIR BAG SPECIAL CONNECTOR

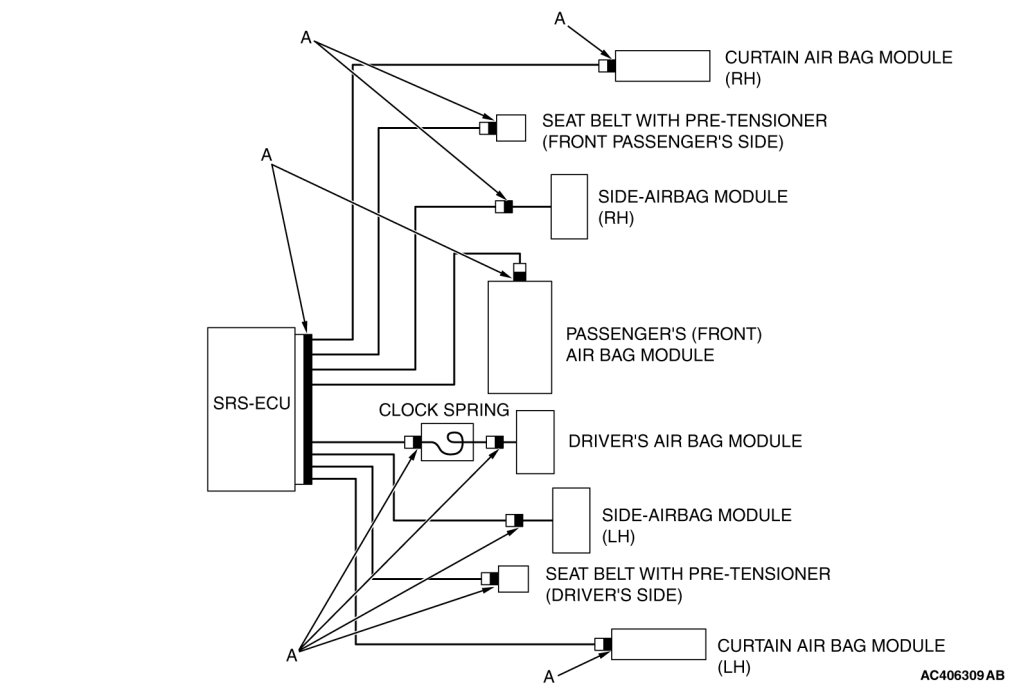

To enhance the system reliability, a connector lock switch is integrated in the SRS-ECU connector, the air bag module connectors, the clock spring connector, the seat belt pretensioner connectors (black connector "A" shown in the illustration below).






SQUIB CIRCUIT CONNECTOR LOCK SWITCH

The switch is a mechanism that shorts the power supply terminal to the ground terminal automatically in the air bag squib circuit when the connector is disconnected. A "short" spring is integrated inside the connector. This spring prevents static electricity from flowing to the squib by shorting the power supply terminal to the ground terminal (i.e. there is no potential difference between the two terminals).

CAUTION:
When the connector is disconnected, there will be short circuit between the terminals. This is not a fault.
