Engine Mount

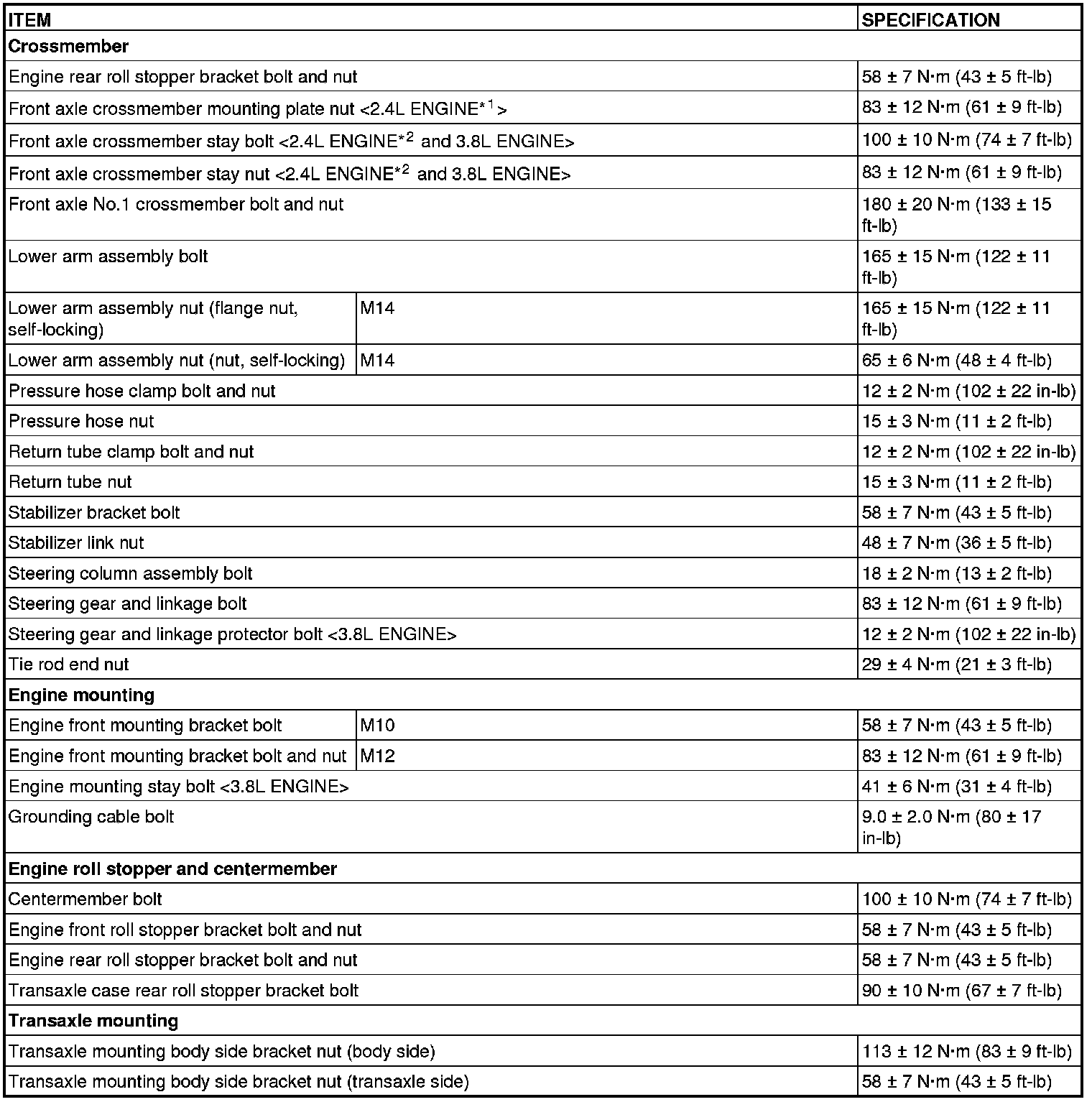

FASTENER TIGHTENING SPECIFICATIONS





NOTE:

- *1: Vehicles without 18 inch wheel
- *2: Vehicles with 18 inch wheel
