Steering: Description and Operation

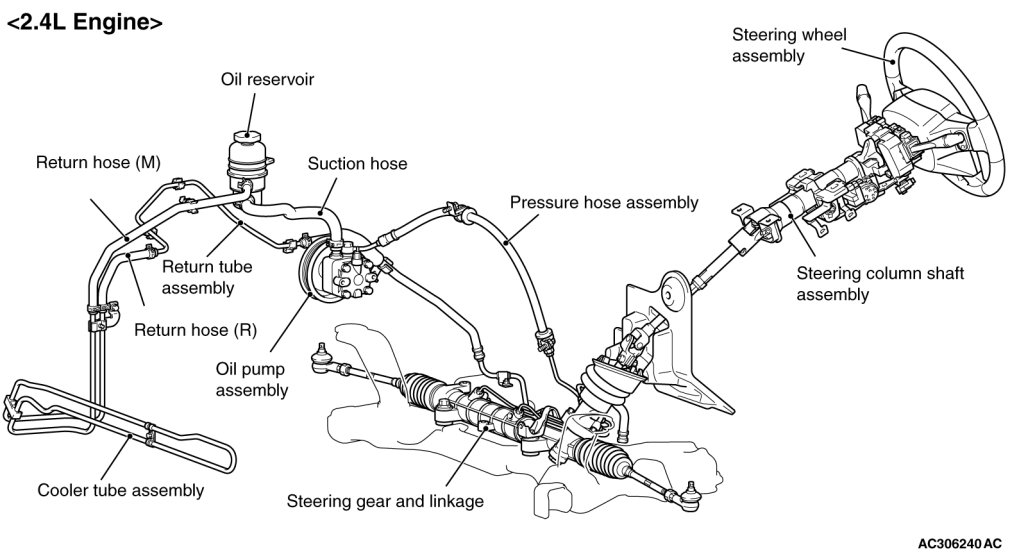

GENERAL INFORMATION

Power steering has been adopted in all vehicles to make the steering system easier to handle.

- A 4-spoke steering wheel is used.
- A steering column has a shock absorbing mechanism and a tilt steering mechanism.
- A rack and pinion steering gear is used.
- An oil pump responsive to engine RPM is used, to enhance steering stability at high speeds.
- The separate plastic resin oil reservoir is used to reduce weight and to make the fluid level checking easier.
