Home
>>
Mitsubishi
>>
2011
>>
Lancer L4-2.4L (4B12)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Accessories and Optional Equipment
>>
Navigation System

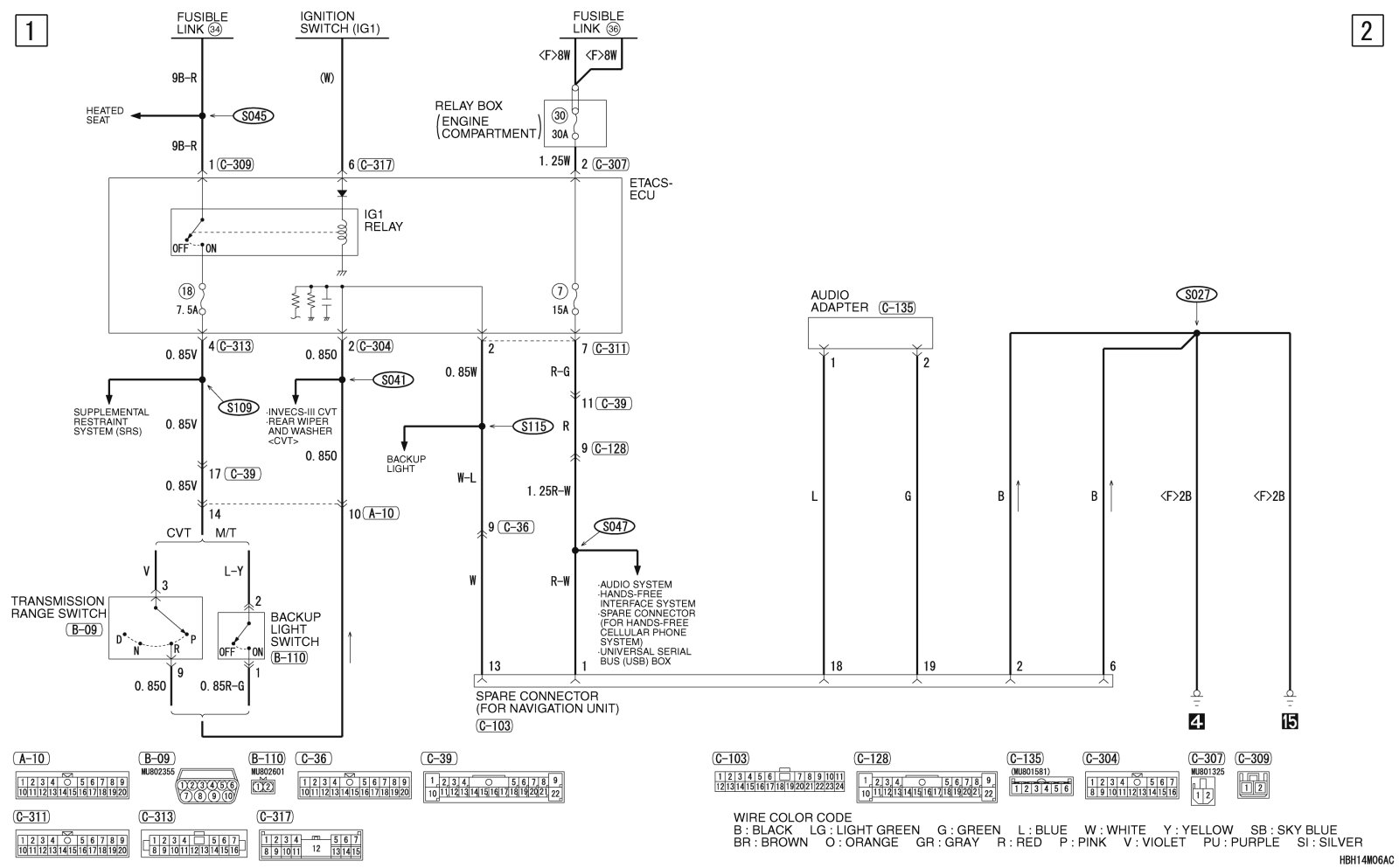

Navigation System
SPARE connector (FOR
NAVIGATION SYSTEM
) [NON-TURBO]
