ABS and ASC
ABS and ASC

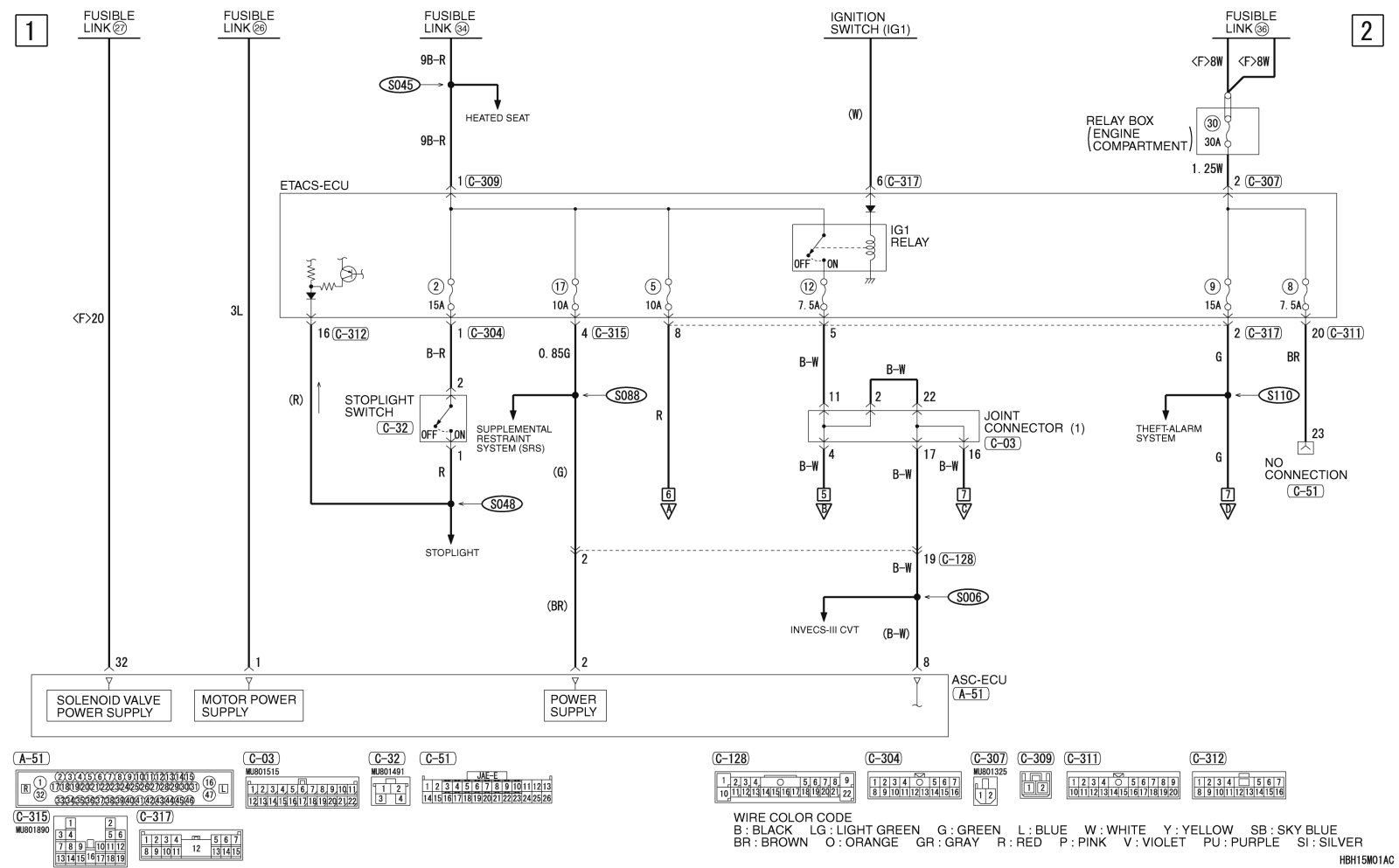

ANTI-LOCK BRAKING SYSTEM (ABS) AND ACTIVE STABILITY CONTROL SYSTEM (ASC) [NON-TURBO]
