Antenna Removal and Installation [Vehicle Without Satellite Radio Tuner]

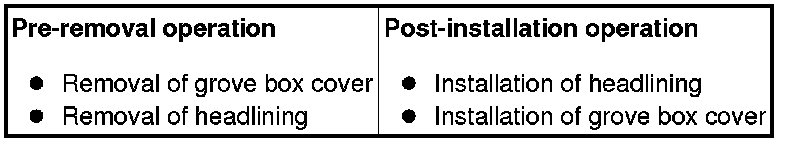

REMOVAL AND INSTALLATION [VEHICLE WITHOUT SATELLITE RADIO TUNER]

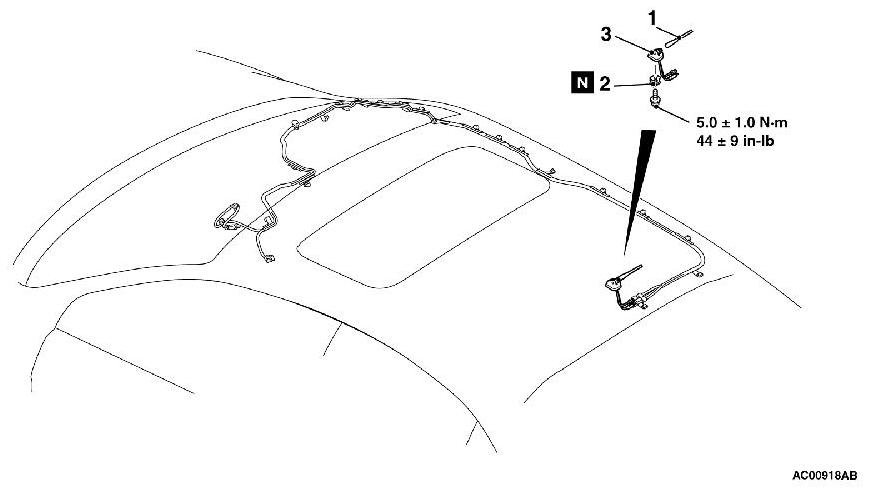

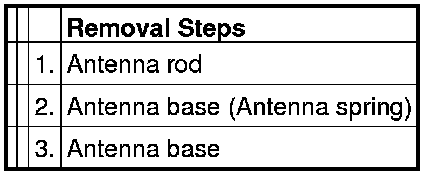

ANTENNA ROD, ANTENNA BASE

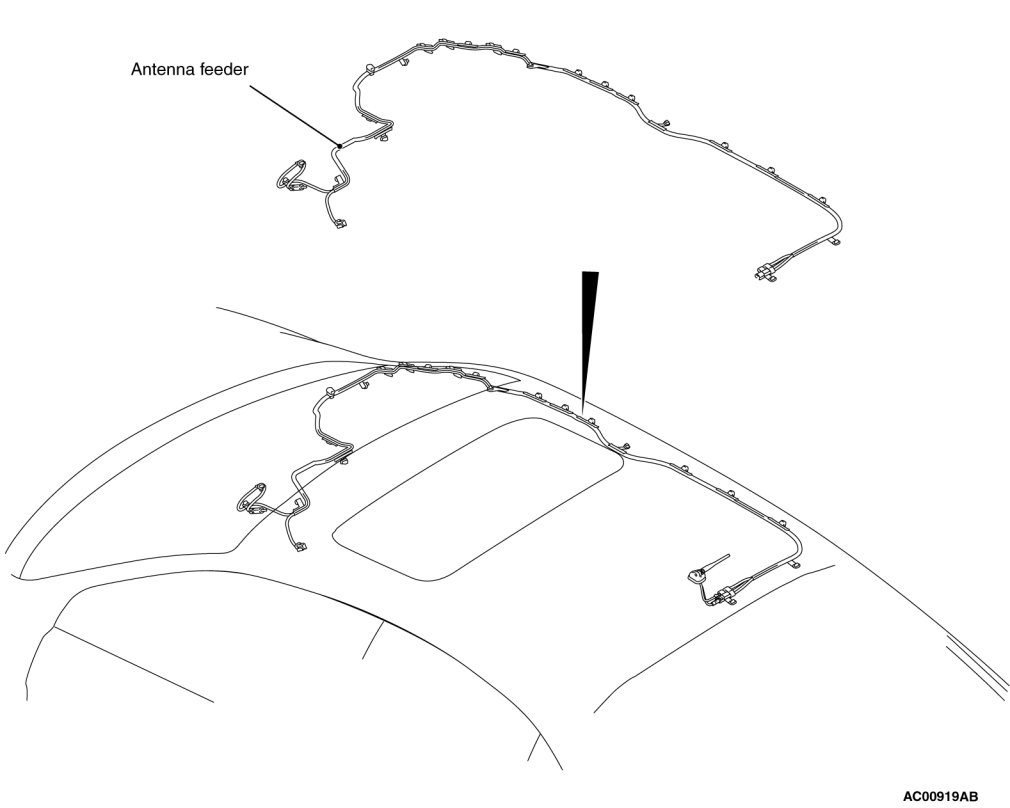

ANTENNA FEEDER
