Ignition Key Reminder Tone Alarm [Vehicles With KOS]
Ignition Key Reminder Tone Alarm [Vehicles With KOS]

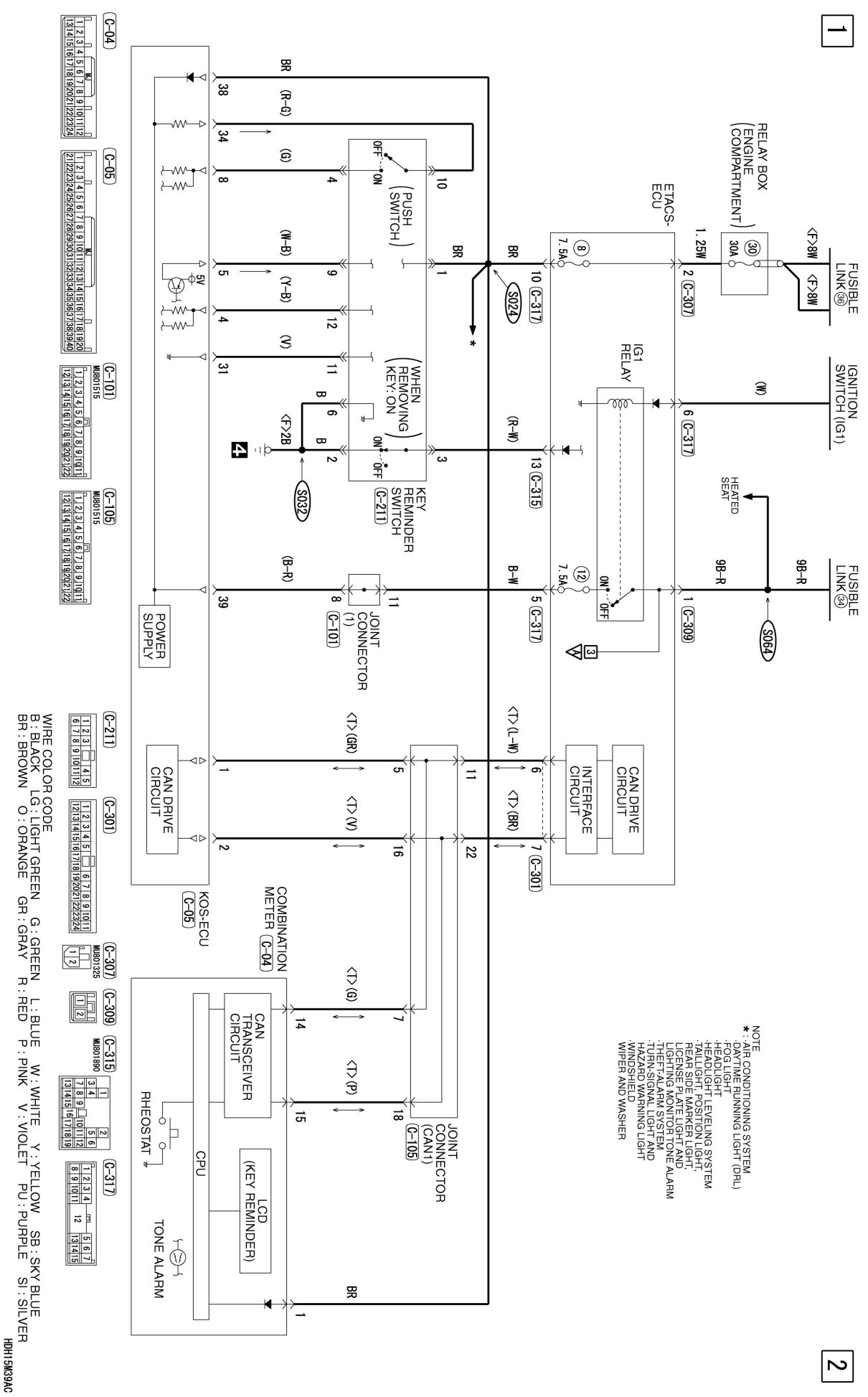

IGNITION KEY REMINDER TONE ALARM [VEHICLES WITH KOS]
