Seat Belts - Shock Absorber Type With Warning Label

86nissan13

Reference:
TECHNICAL BULLETIN TS86-060
Classification: Section:
BF86-007 Body & Frame

Date:
April 18, 1986
Models:
1987 Stanza & Sentra



SHOCK ABSORBER TYPE SEAT BELTS, 1987 STANZA AND SENTRA


APPLIED MODELS: 1987 Stanza and 1987 Sentra


SERVICE INFORMATION

The 1987 Stanza and Sentra models are equipped with new "shock absorber" type front seat belts that feature a sewn-in loop close to the lower anchor. If the belt is severely stressed, the stitching that forms this loop will intentionally break, allowing the belt to extend slightly. When this happens, a "REPLACE BELT" label will become visible above the belt loop cover, and the seat belt must be replaced.

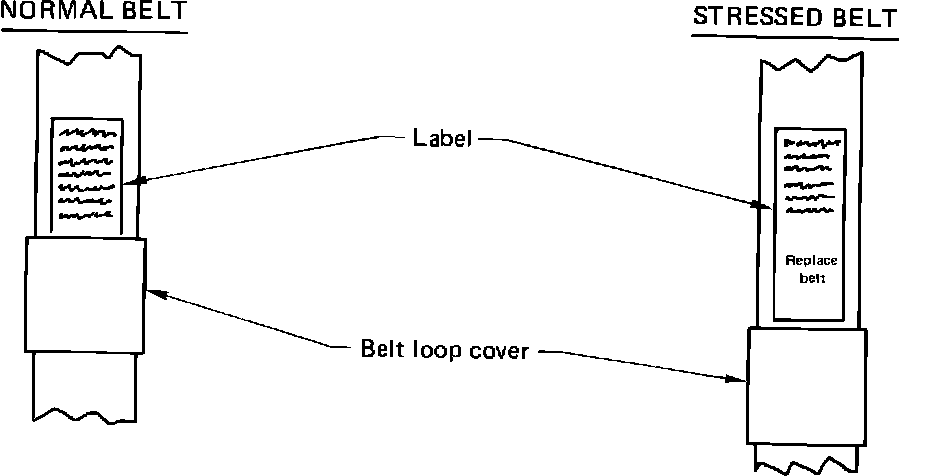

A normal and stressed belt are shown below.



NOTE: In certain Sentra models, the shoulder harness anchor location on the "B" pillar is at different heights for the driver (low) and passenger (high) sides. These locations are correct and have been selected to provide maximum seat belt effectiveness. Please disregard the section of the New Model Technical Information video (1987A Sentra/Stanza) which addressed the relocation of these attachments. Do not change the anchor location from the factory-installed position.
