A/C - Installation Caution

86nissan11

Models 1987 Stanza

Section Air Conditioning

Classification AC86-017

Bulletin No. TS86-180

Date October 17, 1986

FIGURE 1:

FIGURE 2:

A/C INSTALLATION CAUTION, 1987 STANZA


APPLIED MODEL: 1987 Stanza (T12)

SERVICE INFORMATION

When installing air conditioning in a 1987 Stanza vehicle, it is important to note the following caution in the Engine Compartment Section, Step 19:

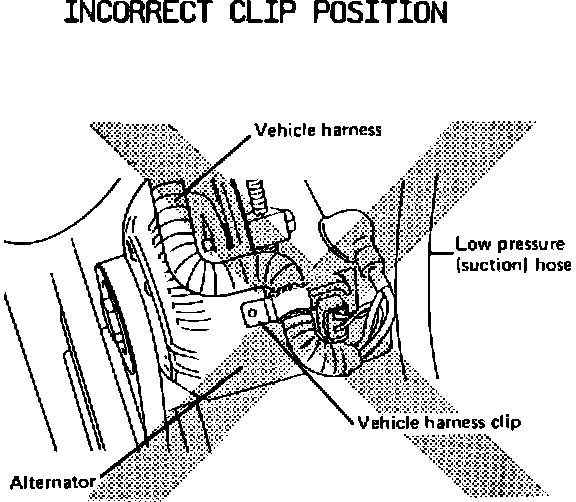

CAUTION: When securing the vehicle harness clip to the alternator adjust bar, make sure to install the clip in the original facto position (Figure 1). If installed incorrectly (Figure 2), there may be insufficient clearance between the vehicle harness and low pressure (suction) hose.
