Service Procedures (Air Conditioner)

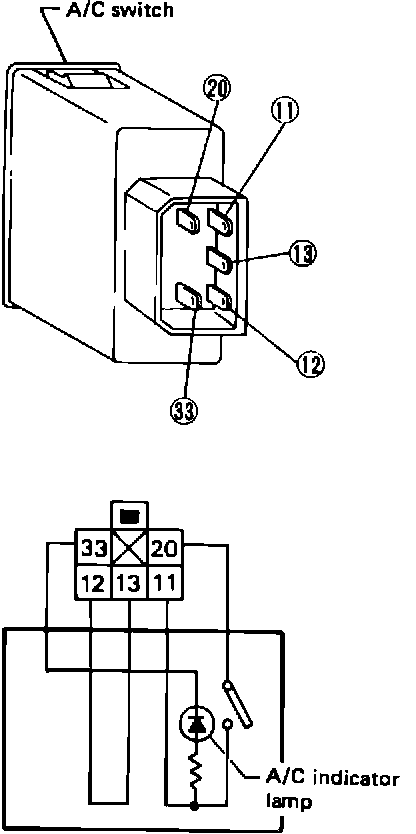

AIR CONDITIONER SWITCH

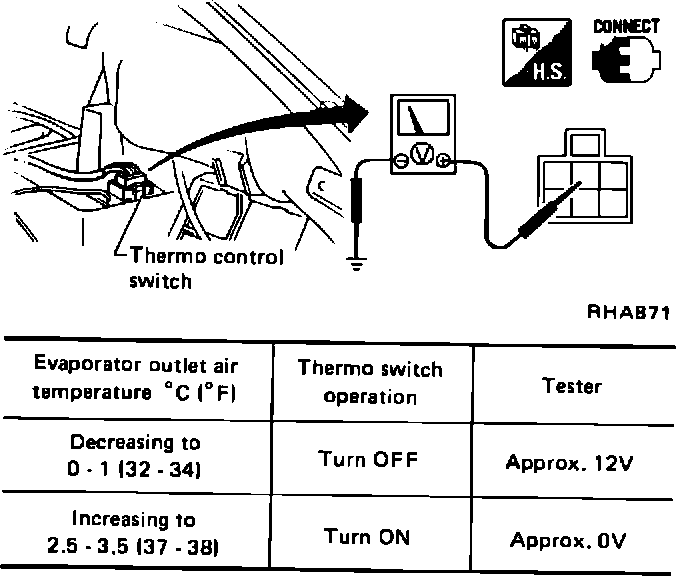

THERMO CONTROL SWITCH The thermistor detects the evaporator temperature and the thermo switch turns the compressor on or off.


Inspection
