A/C Low Pressure Tube - Modification

87nissan09

Models 1987 Stanza

Section Heater & Air Conditioner

Classification HA87-006

Bulletin No. TS87-058

Date April 6, 1987

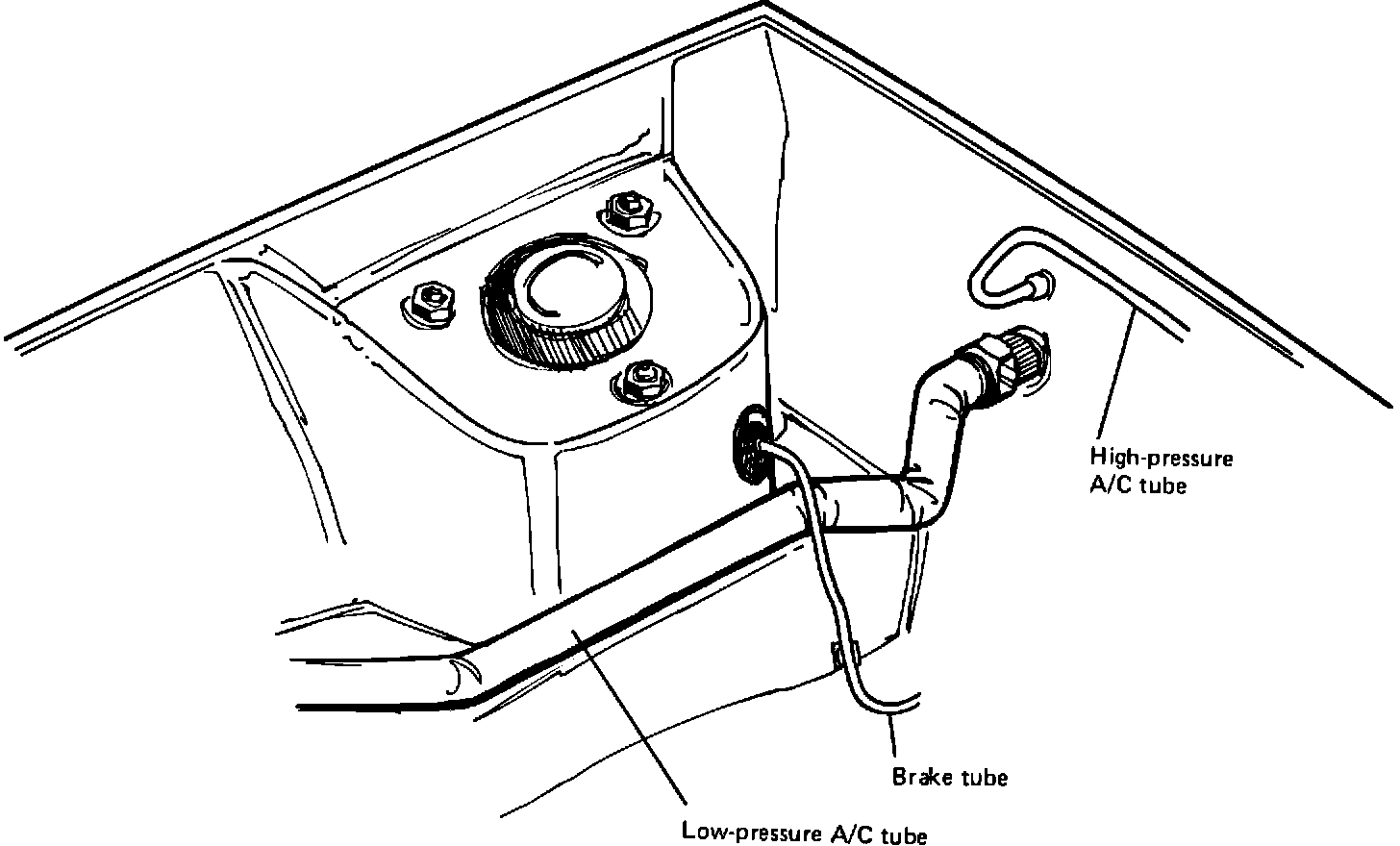

NEW LOW-PRESSURE TUBE ROUTING:

FORMER LOW-PRESSURE TUBE ROUTING:

LOW PRESSURE TUBE MODIFICATION


APPLIED MODEL: 1987 Stanza (T12)

SERVICE INFORMATION

The shape of the low-pressure tube in Stanza A/C kits (P/N B7000-D4500) has been modified to ease installation beginning with A/C kit serial number D4500-1047443. The new tube should be positioned between the brake tube and engine, not between the inner fender panel and brake tube like former low-pressure tubes.

This change affects step 23 in the A/C Installation Manual. The new and former tube positions are shown for your reference.
