A/T - RE4F02A Slips In First Gear

TRANSMISSION: RL4F02A

BULLETIN: # 033

SUBJECT: Slips In 1st Gear

DATE: January 1991

RL4F02A

A MISSING CHECK BALL WILL CAUSE A SLIP IN 1ST GEAR

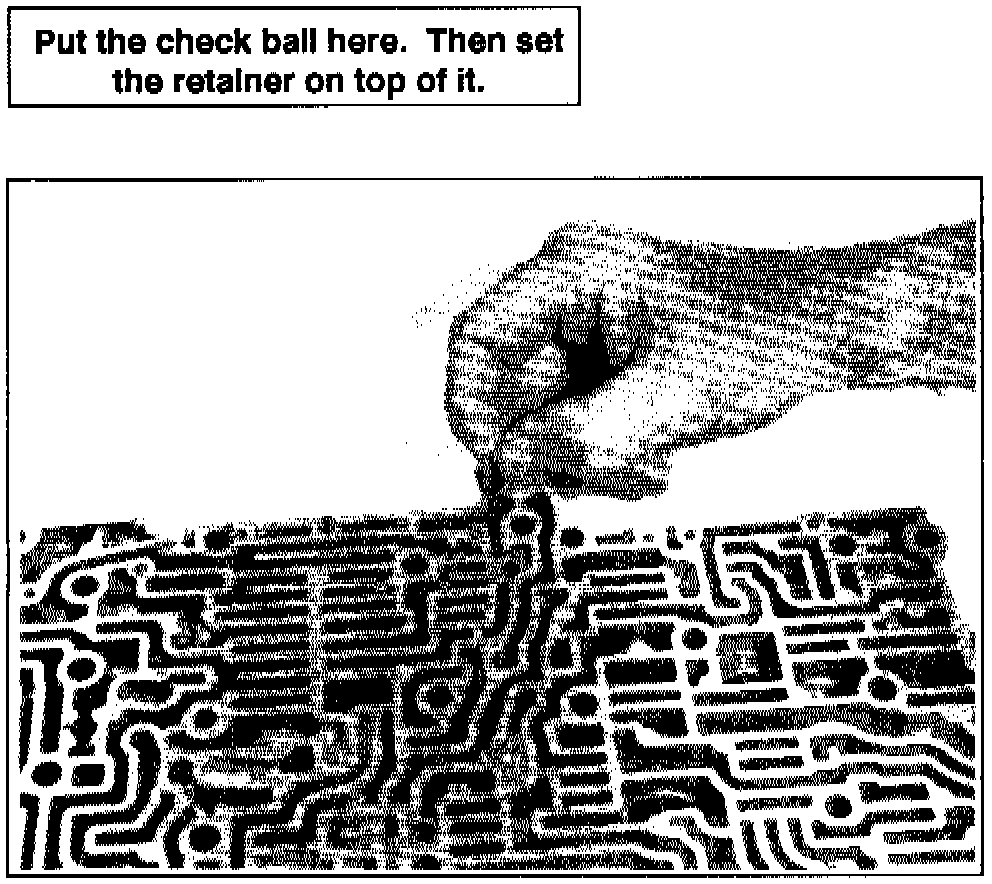

A slip in 1st gear can be caused by a missing low clutch exhaust check ball. The picture below shows the correct position of the check ball and the retainer used to keep it in place. If you've lost the check ball, replace it with one that is 4.75 mm (0.187").
