A/T - Selector Lever Direction Repair Manual Corrections
88nissan07Classification: Section: Automatic
AT88-007 Transmission
Reference:
TECHNICAL BULLETIN TS88-107
Models:
1986, 1987, 1988 Stanza Wagon
Date:
August 18, 1988
M10 SERVICE MANUAL CORRECTION
APPLIED MODELS: 1986, 1987 & 1988 Stanza Wagon (M10)
SERVICE INFORMATION

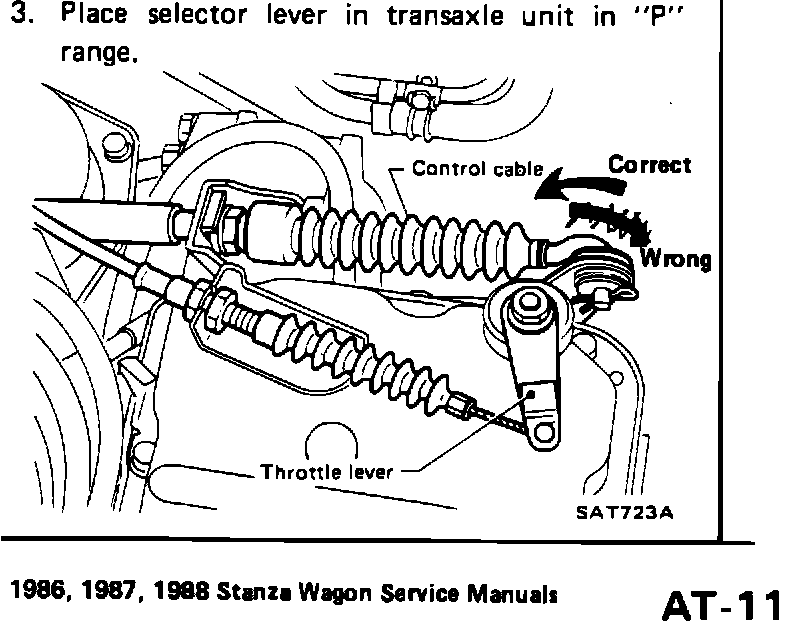

Page AT-11 of the 1986, 1987 and 1988 Stanza Wagon Service Manuals shows an illustration with the selector lever of the transaxle being placed into the "P" range. However, the arrow in the illustration is pointing in the wrong direction. Please correct your copies of subject Service Manuals by hand, as shown below.
