A/T - Shift Schedule, Repair Manual Corrections

88nissan09

Classification:
AT88-008 Section: Automatic Transmission
Reference:
TECHNICAL BULLETIN TS88-133
Models:
1987 & 1988 Stanza Wagon

Date:
October 13, 1988
STANZA WAGON SHIFT SCHEDULE


APPLIED MODELS: 1987 & 1988 Stanza Wagon (M10)

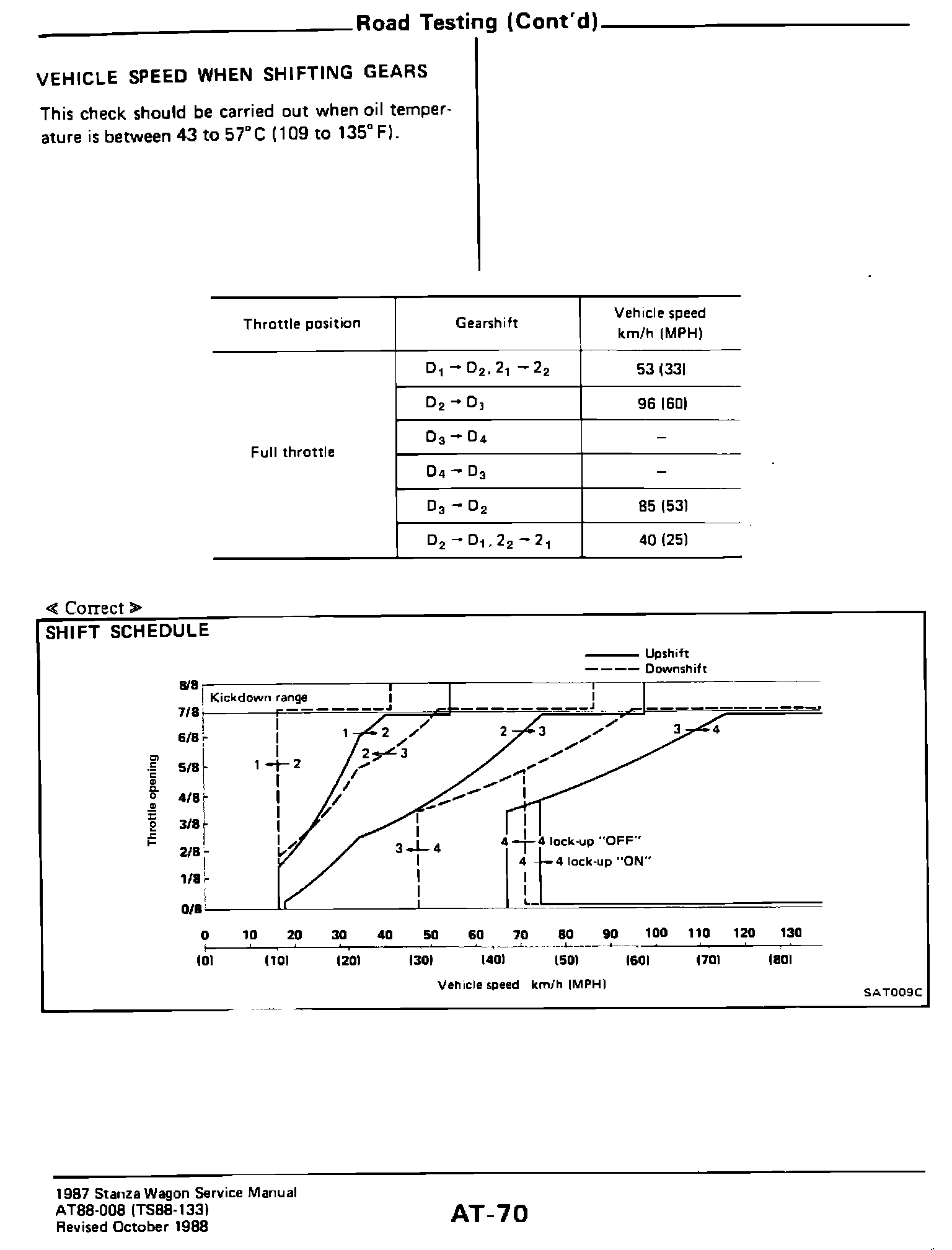

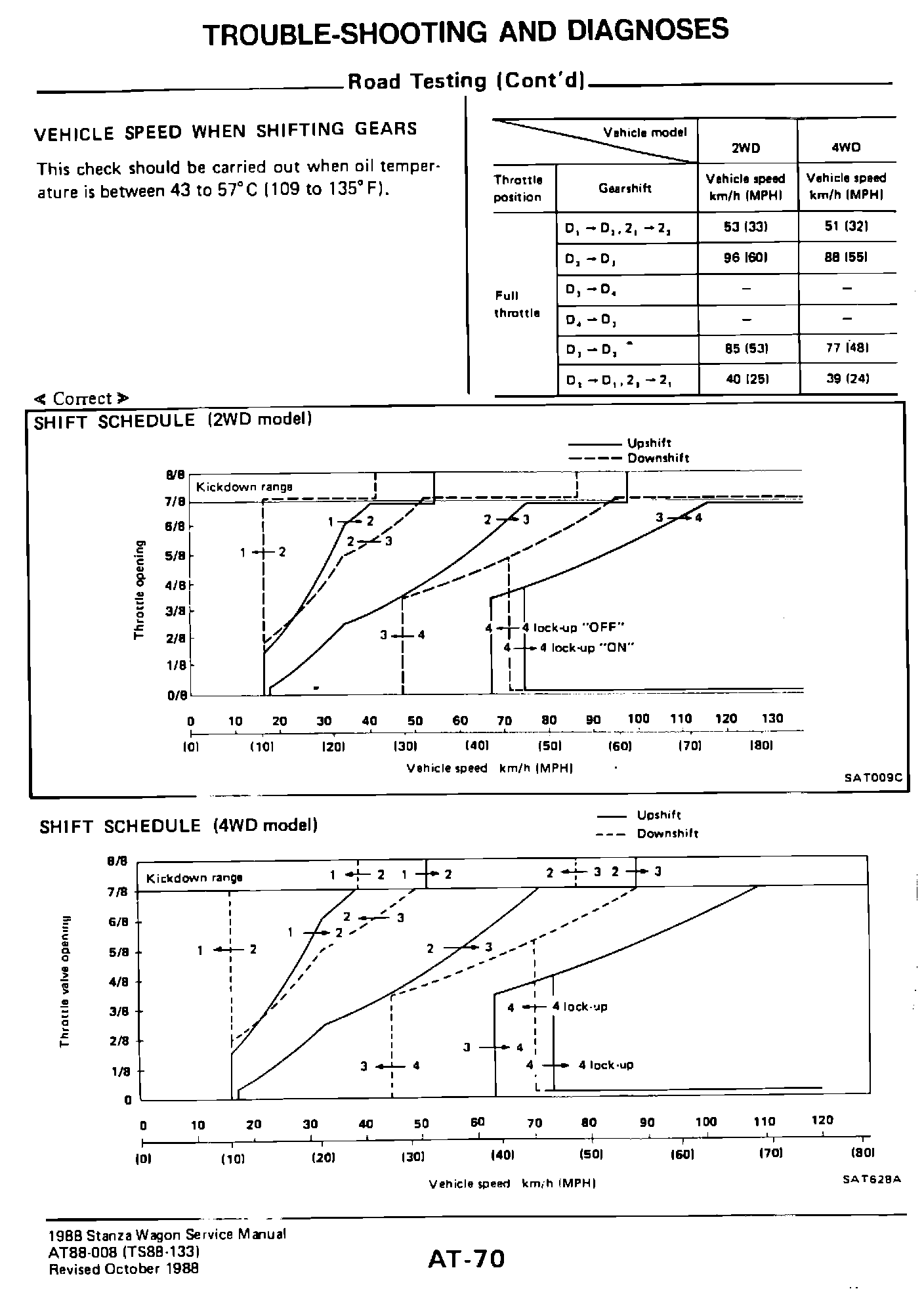

The attached pages AT-70 for the 1987 and 1988 Stanza Wagon Service Manuals contain a corrected Shift Schedule to use when Road Testing. Please paste these pages in your copies of the following Service Manuals.

1987 Stanza Wagon (August 1986 (03) printing) 1988 Stanza Wagon (August 1987 (05) printing)






TROUBLE-SHOOTING AND DIAGNOSES
