A/T - Slipping or Erratic Shift: Overview

89nissan01

Classification: Section: Automatic
AT89-001 Transmission/Transaxle

Reference:
TECHNICAL BULLETIN TS89-010
Models: 1985-88 Maxima, 1987-88 Stanza, 1986-88 Stanza Wagon, 1988 Pulsar

Date:
February 9, 1989
RL4F02A SLIPPING OR ERRATIC SHIFT


APPLIED MODELS: 1985-1988 Maxima (U11) 1986-1988 Stanza Wagon (M10) 1987-1988 Stanza Sedan (T12) 1988 Pulsar (KN13) with CA18DE



SERVICE INFORMATION

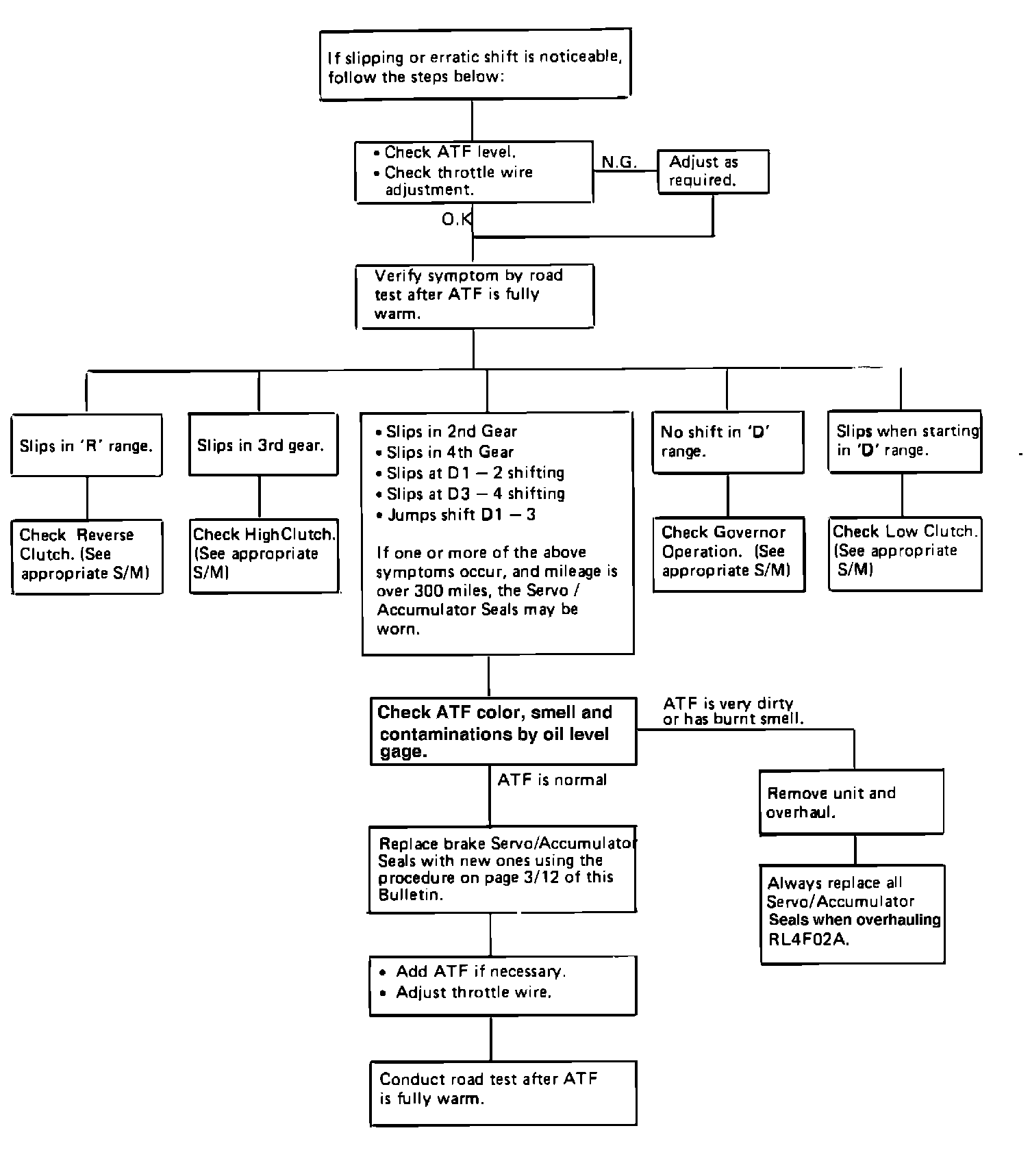

Use the Flowchart on page 2/12 to diagnose RL4F02A slipping or erratic shifting.


IMPORTANT NOTICE

The band servo/accumulator lathe-cut seals are not included in the overhaul gasket and seal kit. When overhauling a transmission, be sure to order the appropriate servo seal kit and replace all seals.
