Doors - Popping Noise From Hinges

Reference: TECHNICAL BULLETIN TS87-073 Date: April 27, 1987

Classification: BF87-015 Section: Body & Frame Models: 1985 - 1987 Maxima, 1987 Stanza & 1987 Pulsar NX


DOOR HINGE NOISE


This bulletin supersedes Technical Bulletin BF85-011 with improved information. DO NOT use the procedure described in the previous bulletin.


APPLIED MODELS: 1985 - 1987 Maxima, 1987 Stanza and 1987 Pulsar NX


SERVICE INFORMATION

Some vehicles may exhibit a "popping" noise from the door hinges. This condition is most noticeable when the vehicle is driven over rough roads or during acceleration and deceleration.

Vehicles which exhibit these symptoms may be corrected by installing countermeasure hinge pins. The countermeasure pins have been coated with molybdenum disulfide. DO NOT remove this coating when installing the pins. Countermeasure hinge pins have been applied to production vehicles beginning with the Applied VINs below.


APPLIED VINs:


MODEL BODY APPLIED VINS


1987 Sedan From JN1HU11P ( ) HT - 308950
Maxima Sedan From JN1HU11P ( ) HX - 860443
Wagon From JN1HU15P ( ) HX - 060698

1987 Sedan From JN1HT211 ( ) HT - 044178
Stanza Hatchback From JN1HT231 ( ) HT - 005906

1987 Coupe (E16i) From JN1PN34S ( ) HM - 006068
Pulsar Coupe (CA16DE) From JN1EN34S ( ) HM - 001976

PARTS INFORMATION

PART DESCRIPTION PART NUMBER QUANTITY REQUIRED

Door Hinge Pin 80406-01L02 2 Per Door

E-Ring (Clip) 00922-50610 2 Per Door

E-Ring Removal:

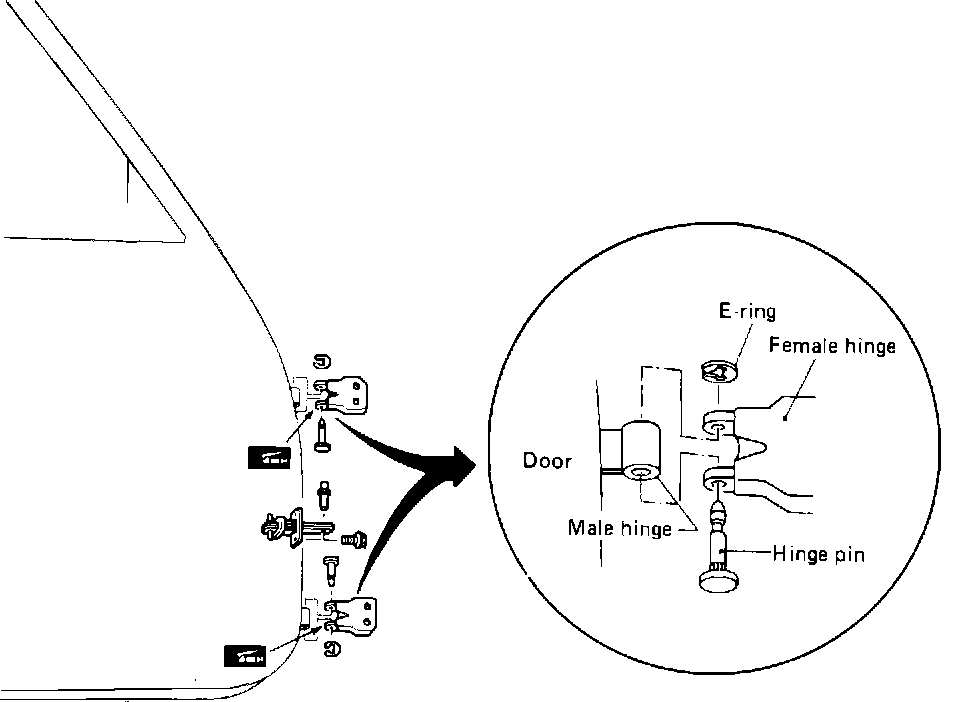

SERVICE PROCEDURE

1. Remove the E-ring from the top hinge pin and discard.


2. Have a second person support the door and remove the top hinge pin. Install the new hinge pin (P/N 80406-01L02) and a new E-Ring (P/N 00922-50610).

CAUTION: To prevent damage to the door and hinge, the door must be supported when a hinge pin is removed.

3. Repeat steps 1 and 2 for bottom hinge.

WARRANTY INFORMATION

CS PNC CT OP CODE FLAT RATE

4R 80400 35 RF99AJ 0.2/hr. - 2 door
0.4/hr. - 4 door
