Hood - Vibration at Idle
86nissan2Reference: Date:
TECHNICAL BULLETIN TS86-158 September 5, 1986
Classification: Section: Models:
BF86-026 Body and Frame 1987 Stanza
HOOD VIBRATION, 1987 STANZA
APPLIED MODEL: 1987 Stanza (T12)
APPLIED VIN RANGE
MODEL VIN RANGE
4 Door Sedan JN1HT21S()HT - 000101 thru 018283
5 Door Hatchback JN1HT23S()HT - 000101 thru 003501
SERVICE INFORMATION
Some early production 1987 Stanza vehicles may exhibit hood vibration at idle which may be objectional to some customers. Vehicles built within the Applied VIN Range above can be improved by applying additional adhesive between the hood and the reinforcing panel as described in this bulletin. On M/T models, a hood insulator should also be installed.
SERVICE PROCEDURE
Materials Needed
QUANTITY SOURCE PART NUMBER DESCRIPTION
1 3M* 8105 Hood Flutter Repair Kit
1 3M* 8984 GeneraL Purpose Adhesive
Cleaner (cleans many vehicles)
15 NMC 65832-F5000 Insulator Clip
1 NMC 65840-D4500 Insulator (M/T models only)
*The 3M products are available from a body shop supply company.
The instructions provided by 3M in the Hood Flutter Repair Kit are general in nature. The specific preparation and the application procedure is described below. Use the 3M Mixing Instructions after reading the directions below.
Directions For Use
1. Raise the hood and carefully remove hood insulator blanket found on automatic transaxle (A/T) models. Place the insulator (A/T models) or sheet of cardboard (M/T models) over the engine area to protect it from adhesive drips. Clean the area shown below with 3M General Purpose Adhesive Cleaner (3M P/N 08984) and allow to dry.

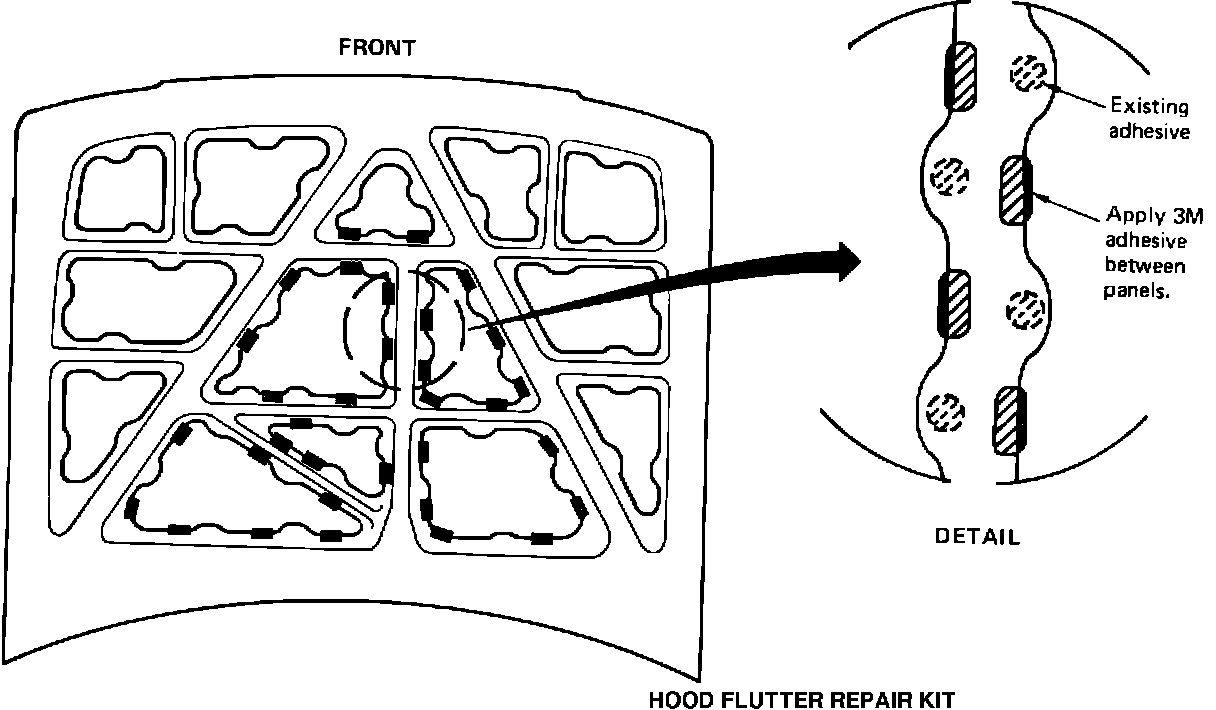

HOOD FLUTTER REPAIR PROCEDURE:
2. Apply a generous daub of adhesive (from 3M repair kit) between the inner and outer panels where shown in the illustration.
3. Lower the hood to the secondary latch and allow one hour for proper cure.
4. A. A/T Models: Raise hood and reinstall the hood insulator using 15 new clips (P/N 65832-F5000).
B. M/T Models: Raise hood and install a hood insulator (P/N 65840-D4500) using 15 clips (P/N 65832-F5000).
ADHESIVE TIME LINE:
Adhesive Time Line
WARRANTY INFORMATION
CS PNC CT OP CODE
FLAT RATE
4S 65100 41 RC99AA
0.4/hr.
