Ambient Temperature Sensor / Switch HVAC: Locations

Ambient Sensor:

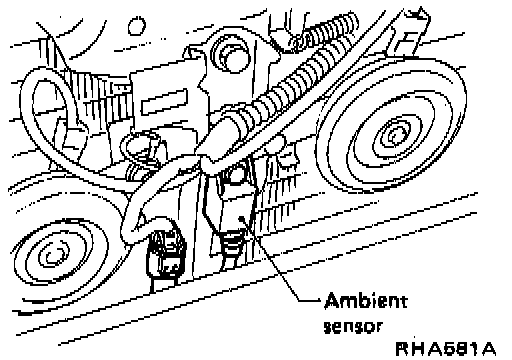

The ambient sensor is attached to hood lock stay. It detects ambient temperature and converts it into a resistance value which is then input to the auto amplifier.
