Page At-146 of 1990 Maxima Service Manual

30. Move manual lever until parking pawl engages idler gear. Measure clearance between parking pawl and parking actuator. If clearance is outside specifications, replace parking pawl.

Part number Identification letter

31989-21X00 D

31989-21X01 E

31989-21X02 F





Example:
When parking pawl with identification letter "E" is used:
Clearance "L" is larger.
--> Replace with parking pawl with identification letter "D".
Clearance "L" is smaller.
--> Replace with parking pawl with identification letter "F".





31. Install side cover and gasket.

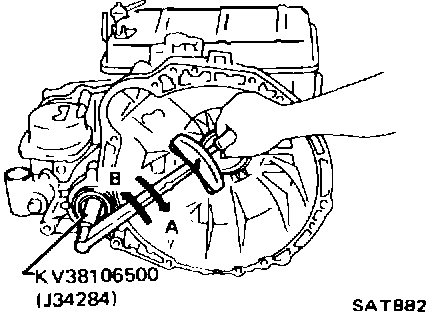

32. Insert Tool into final drive portion to see if internal parts rotates smoothly. Rotating in direction "B" is slightly harder than in direction "A".
If abnormalities are noted, proceed with the following:
^ Disassemble parts to see if they are properly assembled.
^ Readjust bearing preloads of final drive, output shaft and idler gear.

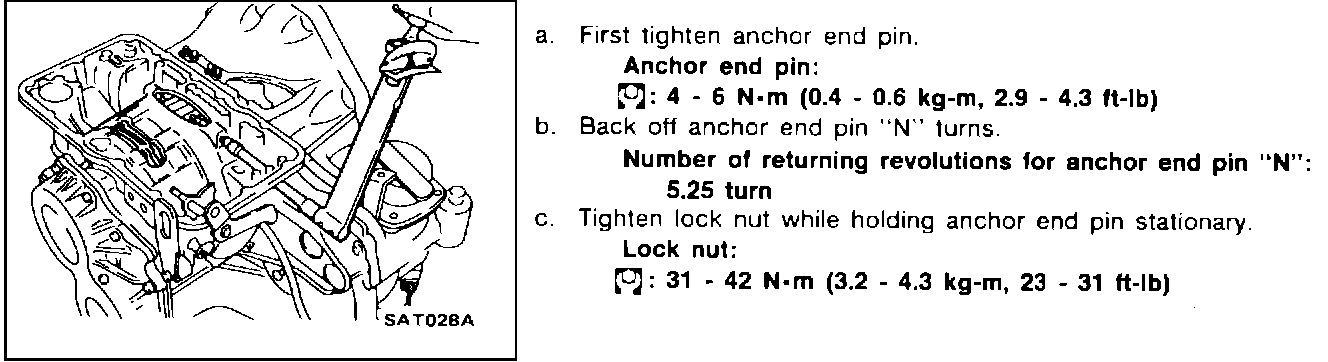

33. Adjust brake band.


AT - 146
