A/T - Pin Point Checks
TECHNICAL BULLETIN # 149TRANSMISSION: RE4F02A
SUBJECT: PIN POINT CHECK
APPLICATION: NISSAN
DATE: DEC 92
Nissan Maxima Pin Point Check

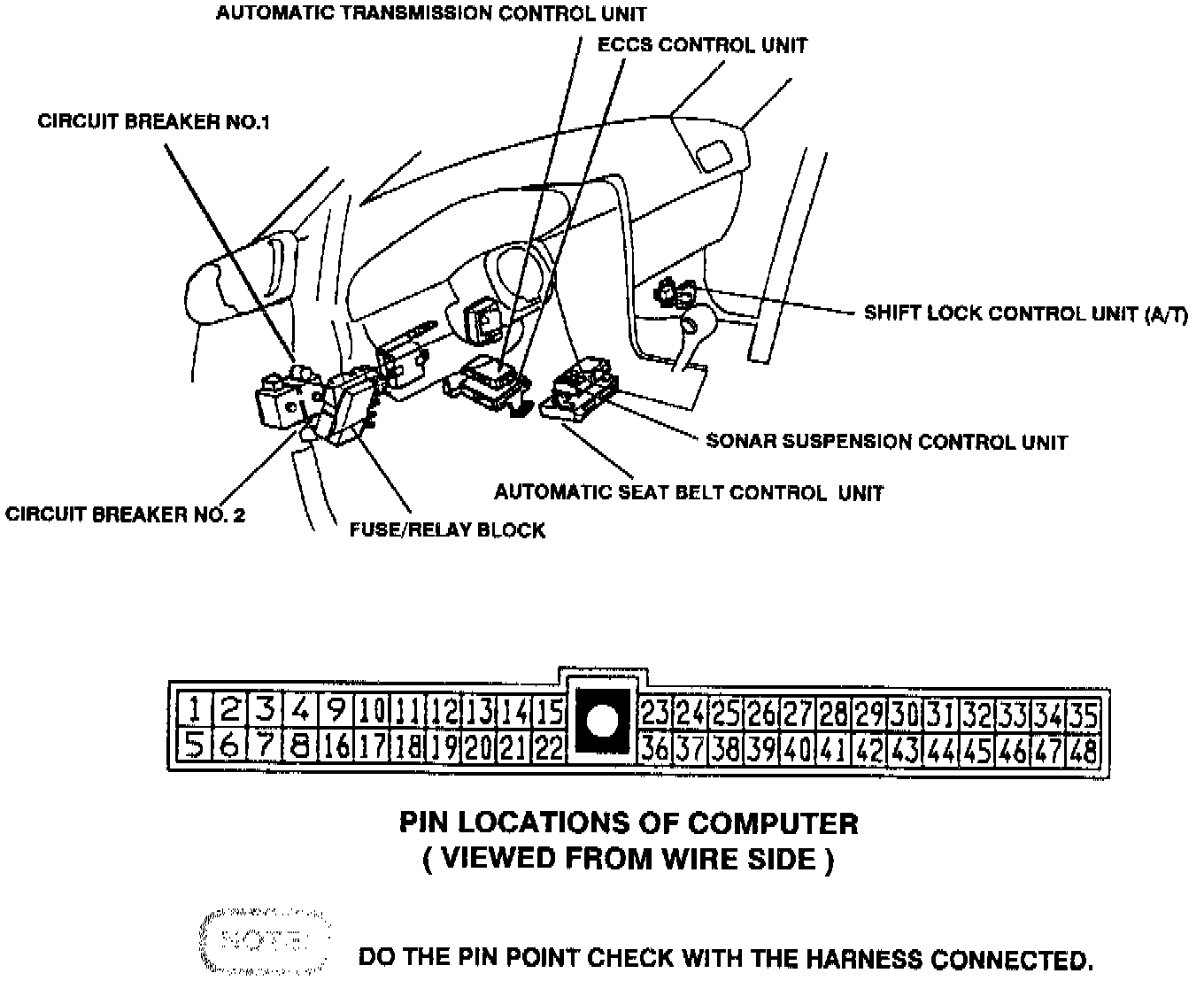

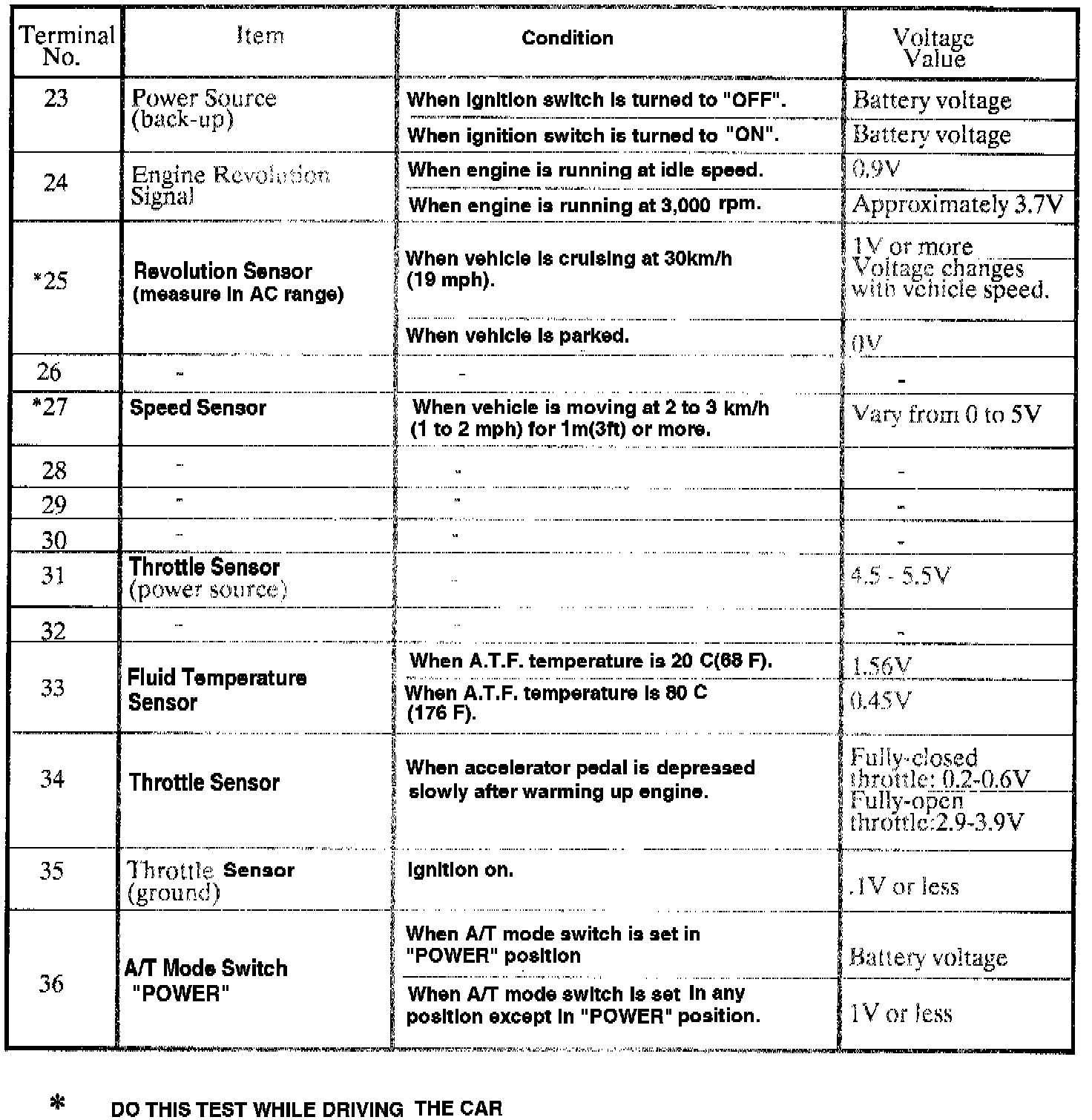

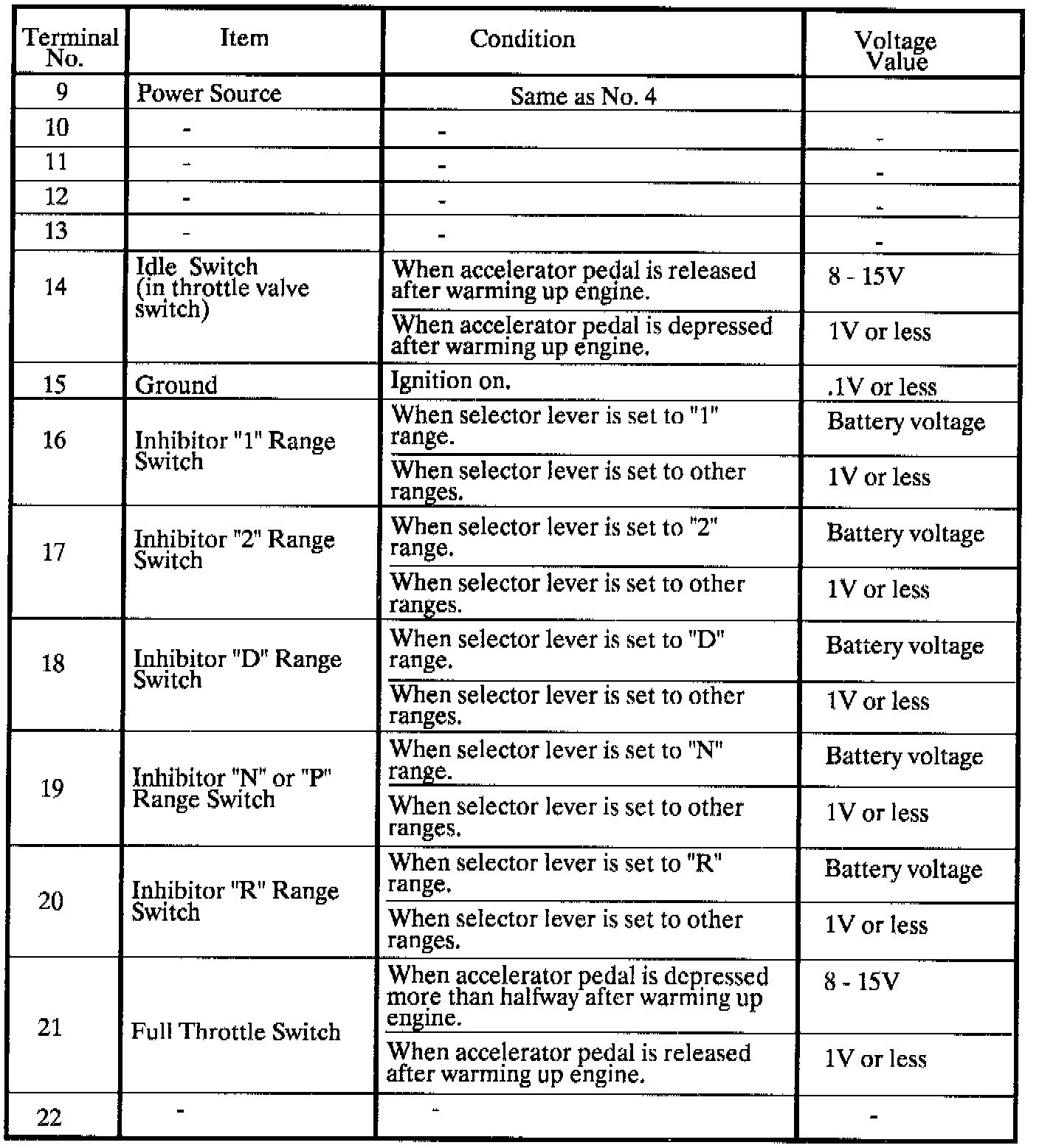

Use the charts to locate computer related electrical problems. Refer to ATRA Bulletin # 132 for more details on checking bad grounds. Use the figure below to locate the computer.
TROUBLE DIAGNOSES
Electrical Components Inspection
