A/T - Starts Out In D4 or Delayed Downshifting
90nissan05Classification: AT90-004 Auto Trans. Section:
Reference:
TECHNICAL BULLETIN NTB90-081
Models: 1990 Stanza 1989-90 Maxima
Date:
September 27, 1990
DELAYED DOWNSHIFTING: RE4F02A AUTOMATIC TRANSAXLE
APPLIED MODEL: 1990 Stanza(U12) with Automatic Transaxle 1989-90 Maxima(J30) with Automatic Transaxle
APPLIED DATE: April 10, 1990
APPLIED A/T UNIT NUMBER: A405712
SERVICE INFORMATION:

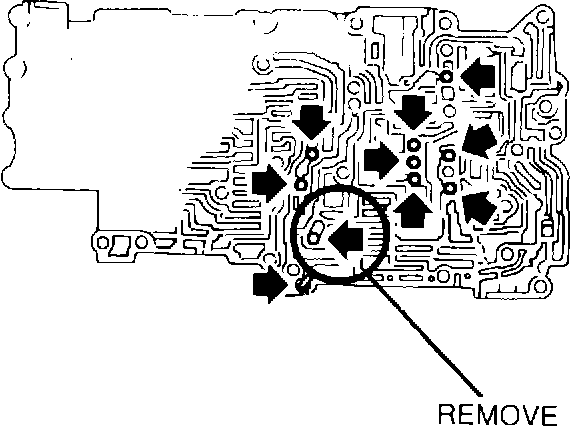

Figure 1:
If Stanza and Maxima vehicles, produced before the applied date, exhibit symptoms of starting in D4 or delayed downshifting after stopping, a new valve body separator plate is available which eliminates this incident. In addition to the installation of this separator plate, 1 shuttle ball must be removed from the valve body (Figure 1).
After installing the countermeasure separator plate and removing the shuttle ball, test drive the vehicle to verify that the incident has been resolved. If the incident is not resolved, call the FIXS Hotline (800-662-3497).

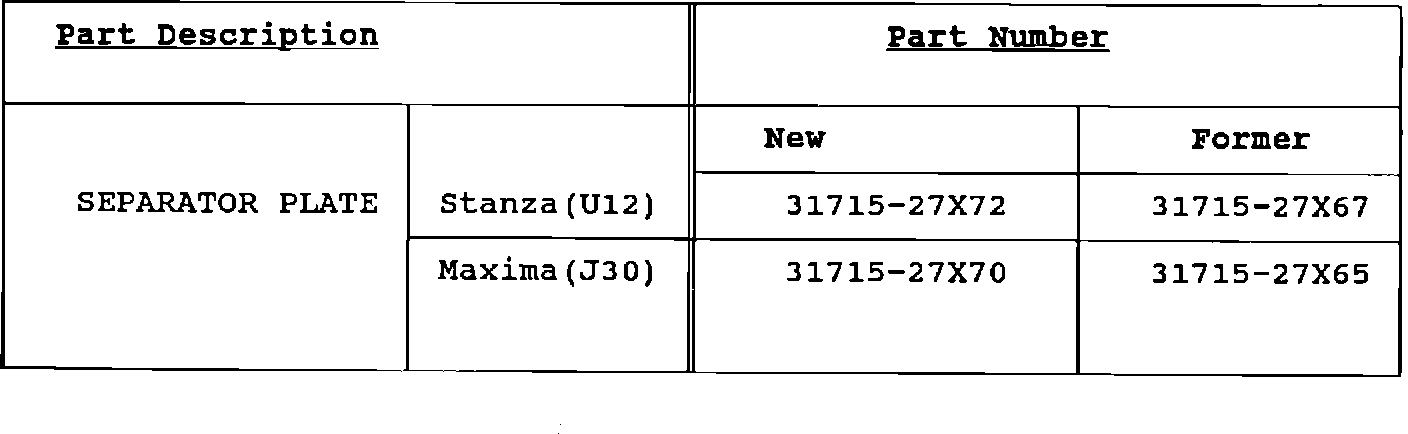

PARTS INFORMATION:
