Fuel - Tank Capacity Correction

89nissan13

Classification: Section: Engine Fuel &
FF&FC89-009 Emission Control
Reference:

TECHNICAL BULLETIN TS89-155
Models:

1989-90 Maxima
Date:

November 16, 1989



J30 FUEL TANK CAPACITY


APPLIED MODEL: 1989 & 1990 Maxima (J30)

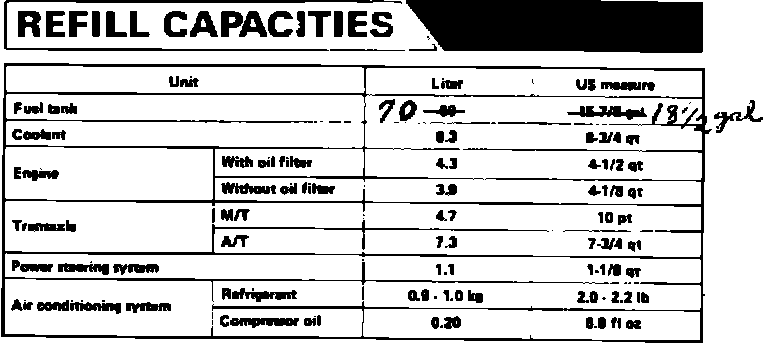

The reference chart on the back cover of the 1989 and 1990 Maxima Service Manuals gives the fuel tank capacity as 60 liters (15-7/8 gal). This is incorrect. The correct fuel capacity is 70 liters (18-1/2 gal). The attached corrected pages should be pasted on the back cover of your 1989 and 1990 Maxima Service Manuals.



1990 Maxima Service Manual EF&EC89-009 (TS89-155) Revised November 1989



1989 Maxima Service Manual EF&EC89-009 (TS89-155) Revised November 1989
