Steering - Diagnosis and Repair For Pull: Overview

Models: 1989-91 Maxima
Section: Steering
Classification: ST92-002
Bulletin No.: NTB92-079
Date: October 6, 1992

MAXIMA STEERING PULL DIAGNOSIS AND REPAIR

This bulletin supercedes Service Advisory NTB92-005 for the applied model.

APPLIED MODELS:
1989-91 Maxima (J30)

SERVICE INFORMATION

This bulletin will assist Service Advisors and Technicians in identifying and resolving complaints of steering pull on Maxima vehicles.

Service Advisors should be familiar with and able to identify the three (3) types of incidents which customers may describe as "steering pull":

1. Steering wheel off-center
The steering wheel is not in the straight ahead position when driving on a straight, flat road.

2. Wander
The vehicle wanders right and left, depending on road surface conditions.

3. Pull
Consistent pull to one side on a straight, flat road while maintaining a constant speed.

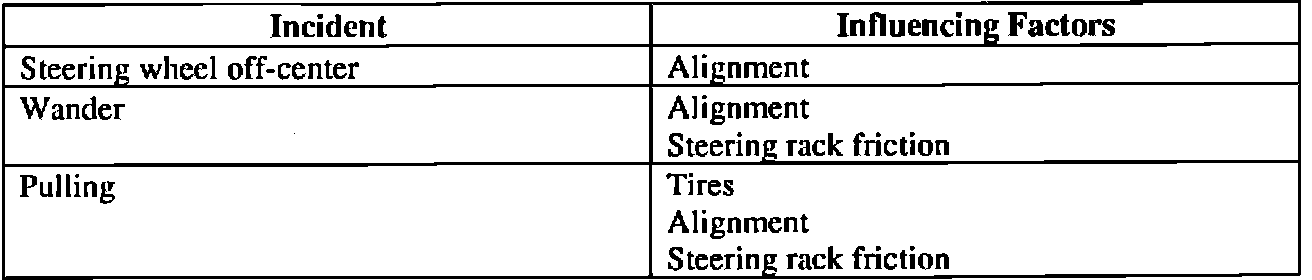

The factors which influence pulling, wander and wheel off-center are highlighted in the chart.

Please note that diagnostic flowcharts for each of the incidents are included. An overview of the adjustable steering/suspension angles is also provided.
