Steering - Knocking Noise From the Column

Classification:
ST93-003

Section:
Steering

Reference:
TECHNICAL BULLETIN NTB93-101

Models:
1989-91 Maxima(J30)
1990-91 Stanza(U12)

Date:
July 2, 1993

KNOCKING NOISE FROM THE STEERING COLUMN

APPLIED MODELS:
1989-1991 Maxima(J30); 1990-91 Stanza(U12)

APPLIED VIN/PRODUCTION DATE:
Stanza-JN1FU21P(*)MX852153; 11/5/90.
Stanza-JN1FU21P(*)MT311102; 11/5/90.
Maxima-JN1HJ01P1MT523305; 11/15/90.

SERVICE INFORMATION:

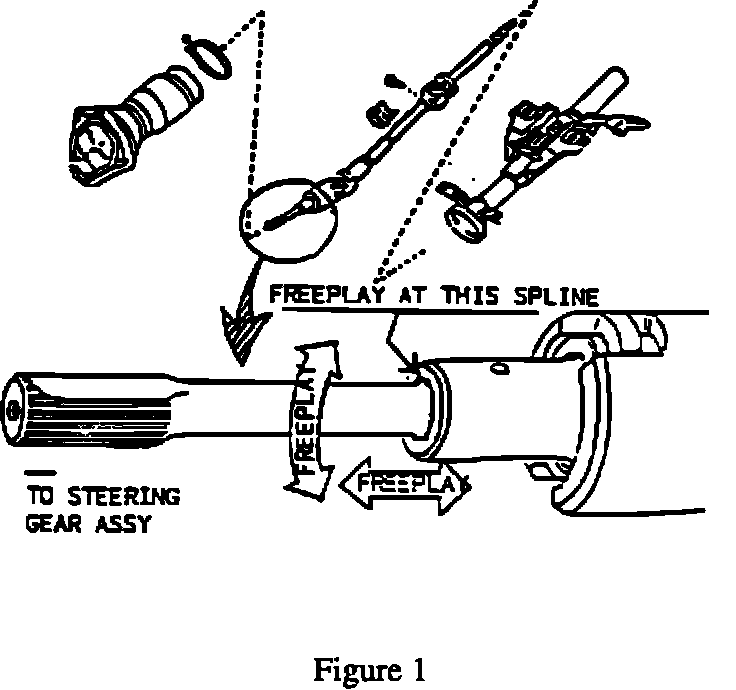

On some vehicles before the Applied VIN and Production Date, a knocking noise may sometimes be heard when the steering wheel is turned in one direction and, then, the other. (Figure 1)

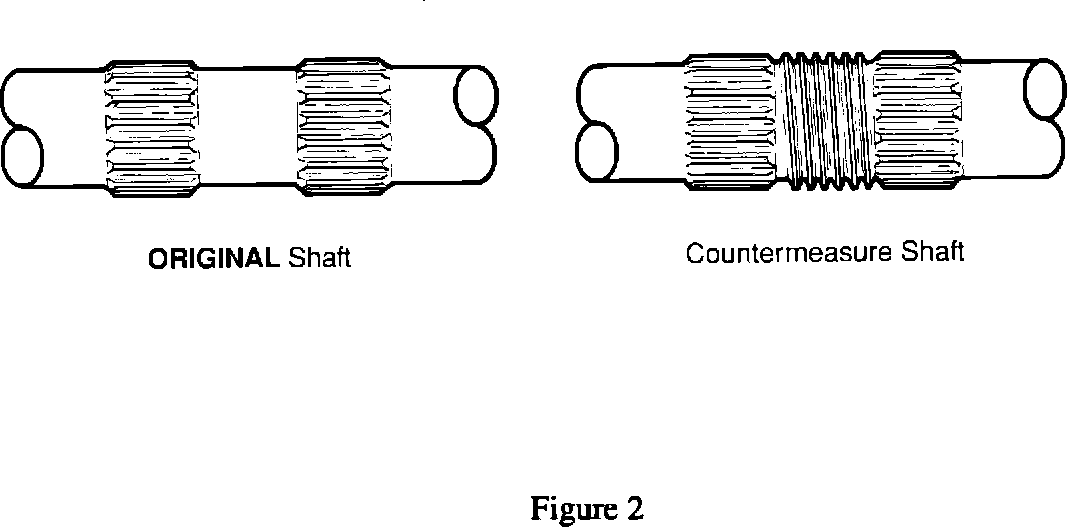

As of the Applied VIN/Production Date, a countermeasure steering shaft was integrated into production. To optimize contact between the steering shaft and the tube, a serrated section has been added to the shaft (Figure 2).

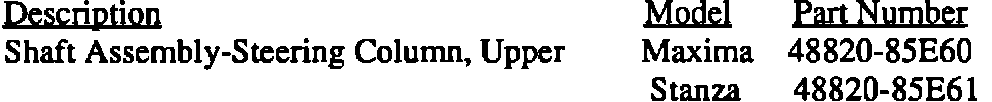

PARTS INFORMATION:

NOTE:





The Part Number was not changed, However, all parts in stock at the VPC's are countermeasure.

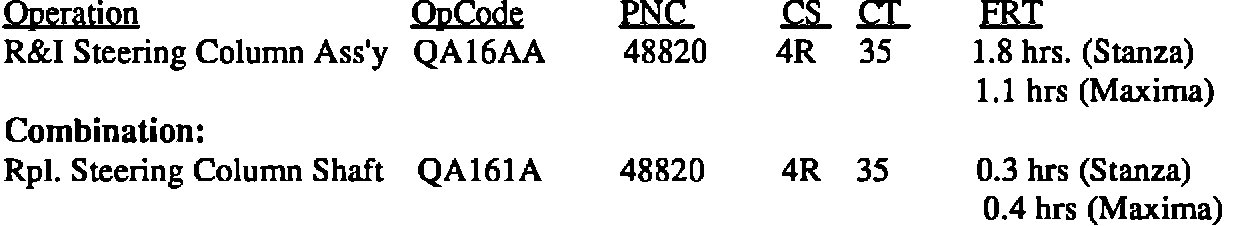

WARRANTY INFORMATION:
