Rear Air Outlet Grille and Parcel Shelf Trim Clip

PARTS/LOCATION AFFECTED:
Rear Air Outlet Grille

SYMPTOM:
Squeaking noise develops around the rear window and rear parcel shelf trim while driving.

REPAIR INFORMATION:





Parts required:
Non-Woven Cloth Tape, P/N 68239-13E00.
Method:

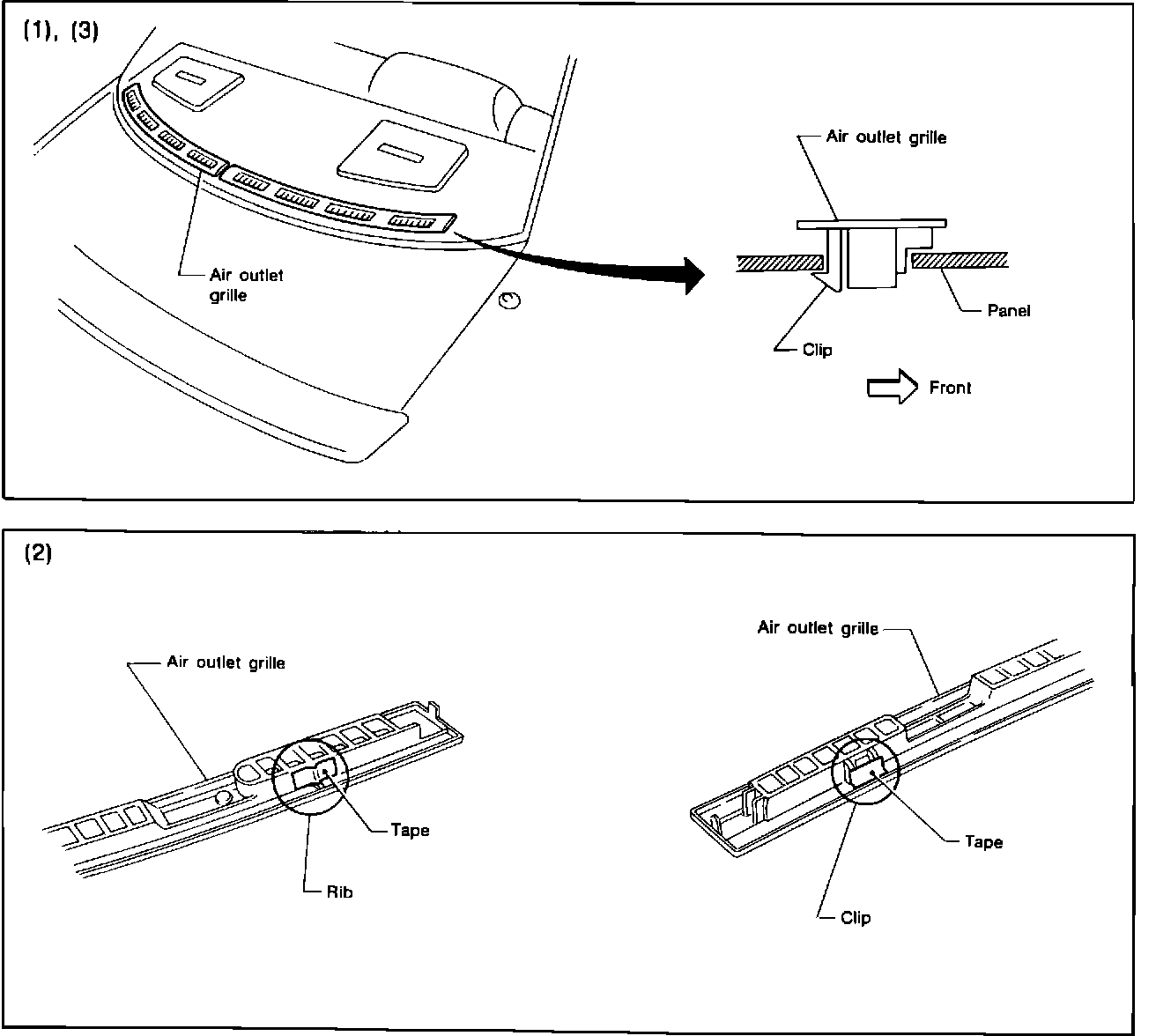

Using the following procedures, repair the looseness of the air outlet grille with the rear parcel shelf trim and the contact between the air outlet grille and the rear window.

1. Remove the air outlet grille from the rear parcel shelf trim.

2. Apply non-woven cloth tape to the ribs and clips of the air outlet grille.
3. Install the air outlet grille to the rear parcel shelf trim.

NOTE:
Make sure that the rear of the air outlet grille is secured.

PARTS/LOCATION AFFECTED:
Rear Parcel Shelf Trim Clip

SYMPTOM:
Buzzing noise develops around the rear parcel shelf trim while driving.

REPAIR INFORMATION:





Parts Required:

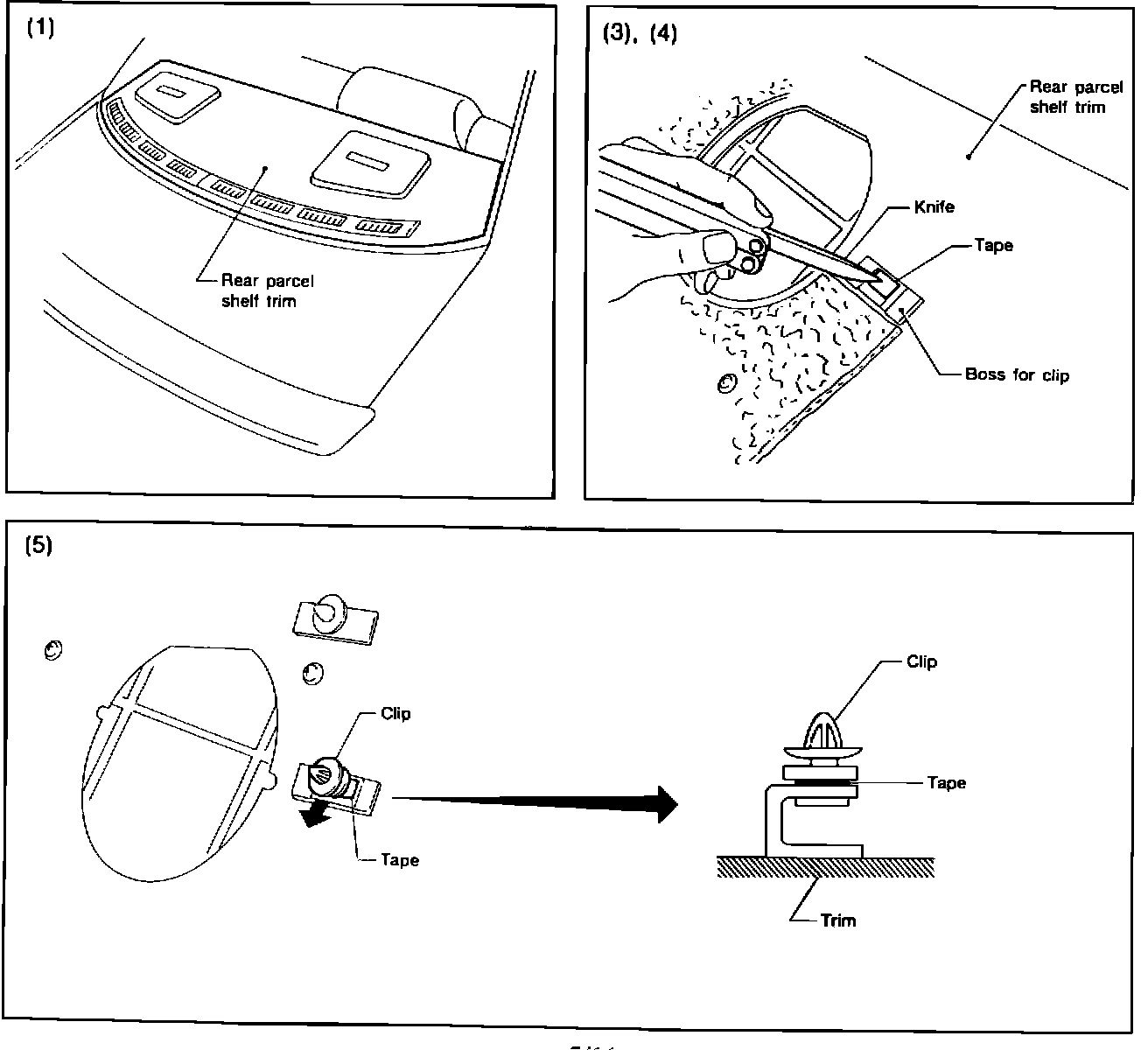

Non-Woven Cloth Tape, P/N 68239-13E00; Knife. Method:

1. Remove the rear seat and the rear parcel shelf trim.
2. Remove clips from the rear parcel shelf trim.
3. Apply the non-woven cloth tape on to the clip bosses.

4. Using a knife, cut a hole in the tape for the clip.
5. Install clips on the bosses.

NOTE:
Make sure there is no looseness between the clip and the boss.

6. Install the rear parcel shelf trim and the rear seat into the vehicle.
