Major Overhaul

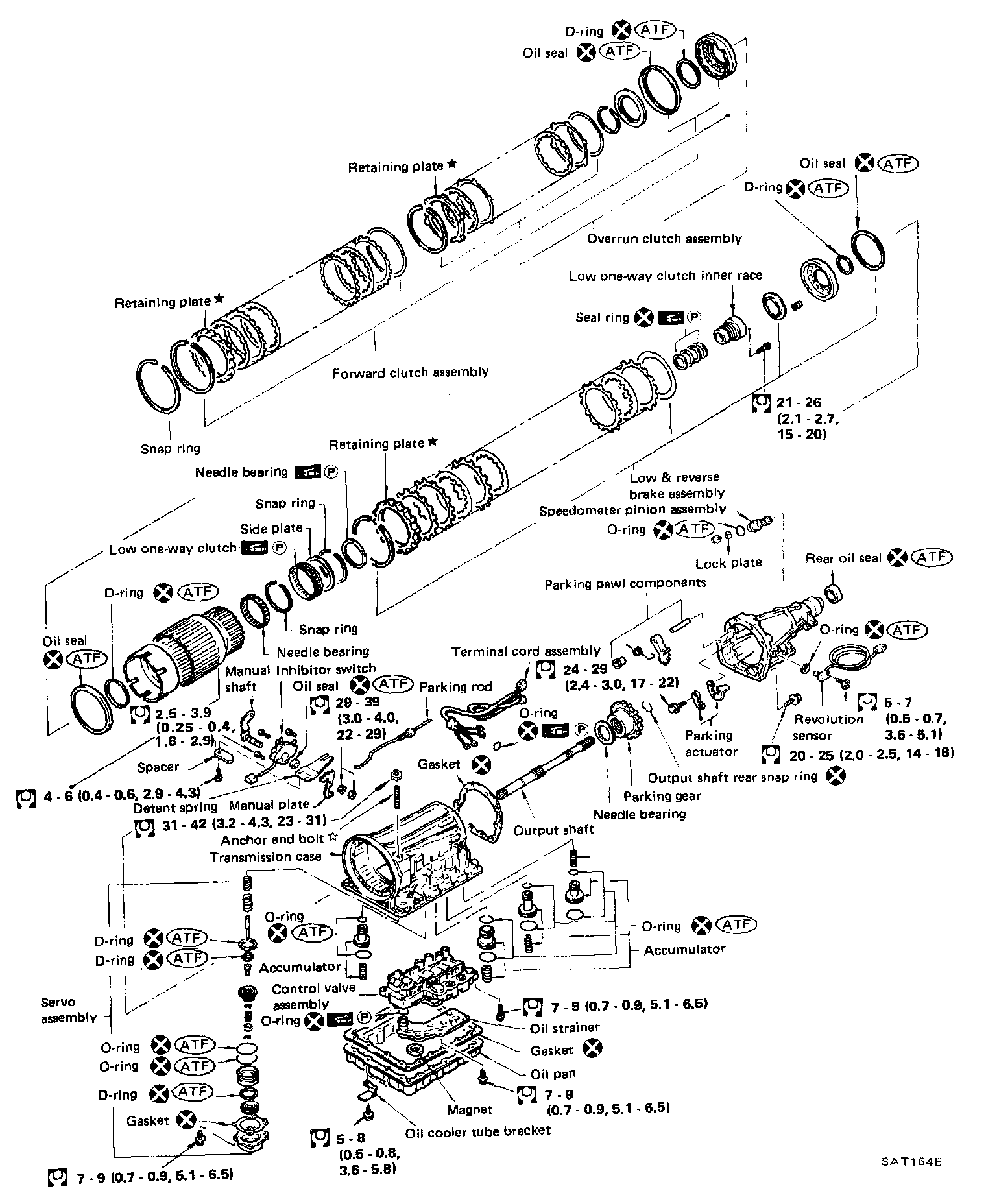

RE4R01A Part 1:

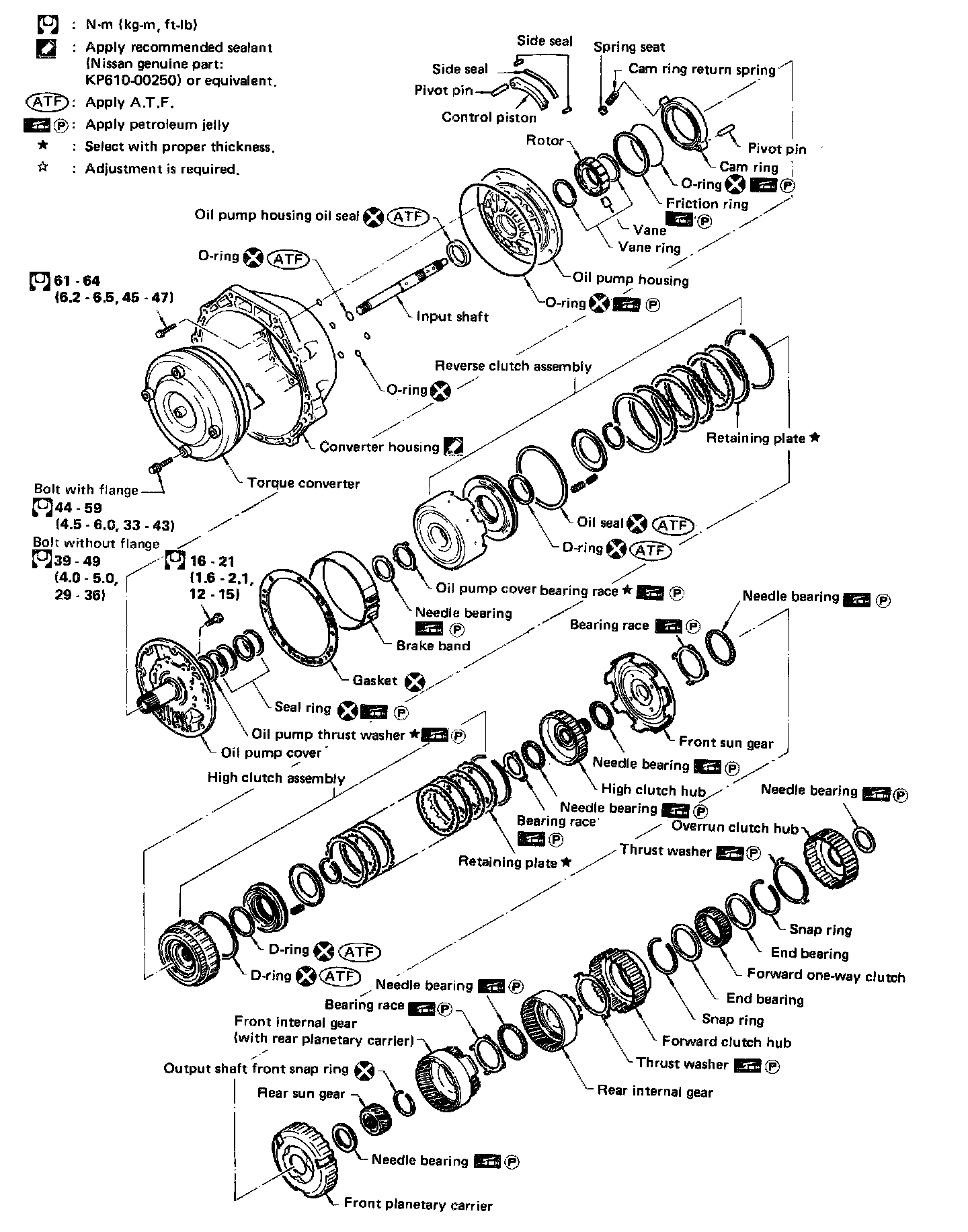

RE4R01A Part 2:

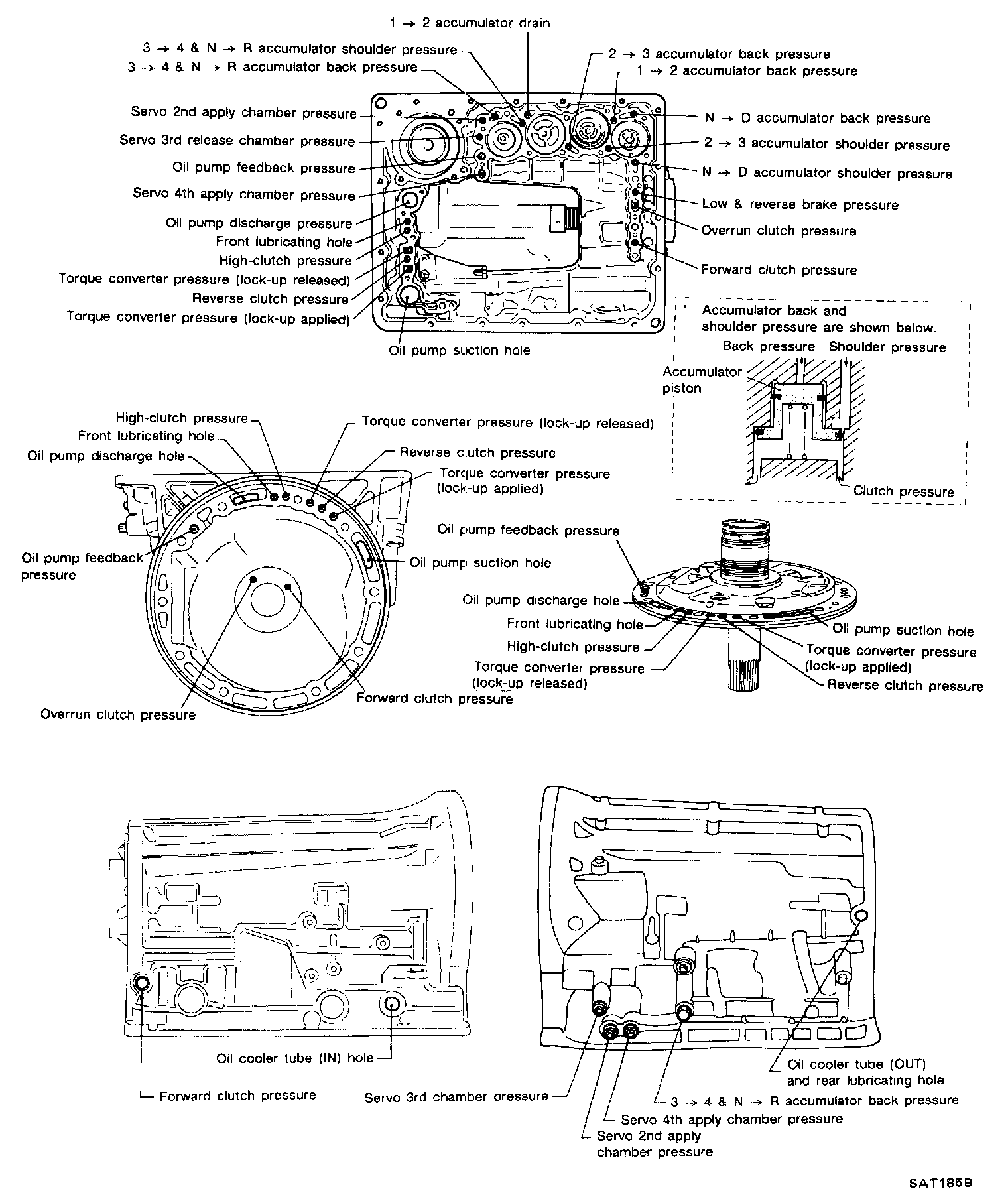

Oil Channel - RE4R01A:



Locations Of Needle Bearings, Thrust Washers And Snap Rings - RE4R01A:
