Fuel Gauge: Testing and Inspection

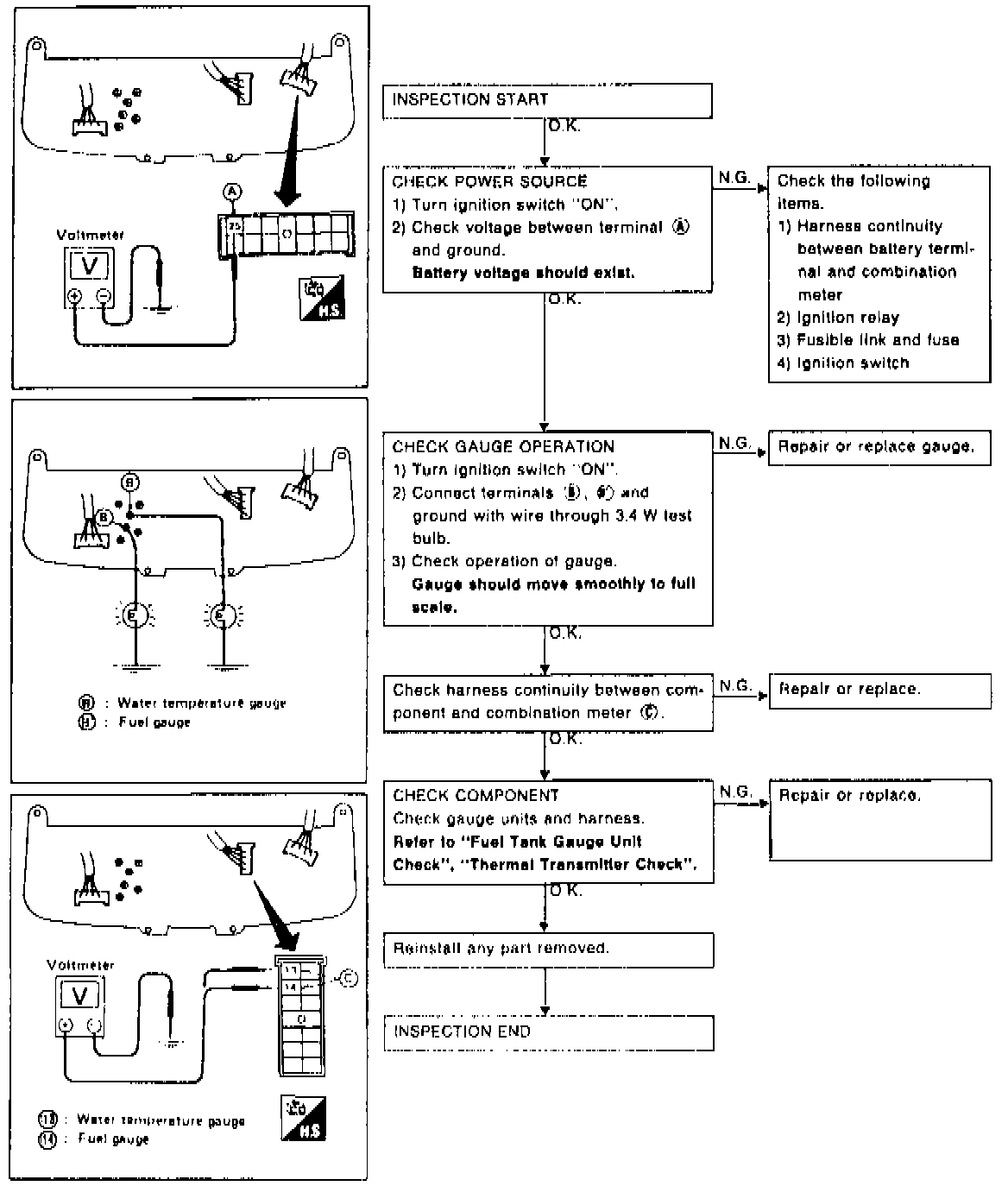

Fig. 19 Fuel Gauge & Water Temperature Gauge Inspection:
GAUGE DIAGNOSIS
Refer to
Fig. 16
for fuel and/or
temperature gauge
diagnosis.
