Radiator Cooling Fan: Testing and Inspection

1. Disconnect radiator fan motor electrical connector.

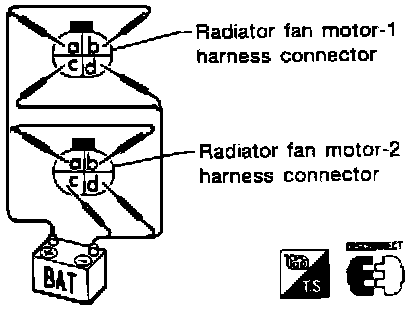

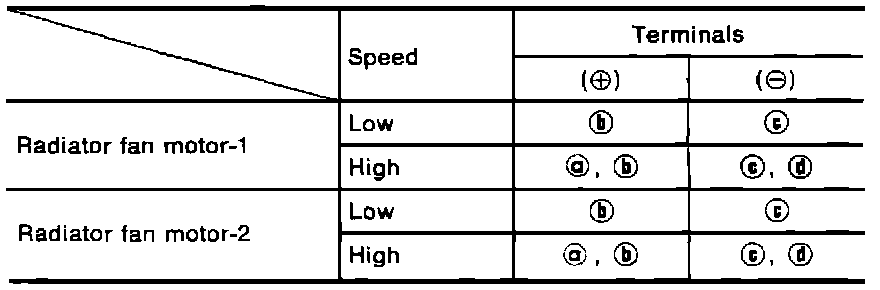

2. Using the shown chart as a reference, verify proper fan motor operation.
3. If desired results cannot be achieved, replace fan motor.
