Home >> Nissan-Datsun >> 1993 >> Maxima V6-2960cc 3.0L SOHC MFI (VG30E) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

Compressor Clutch Relay: Locations

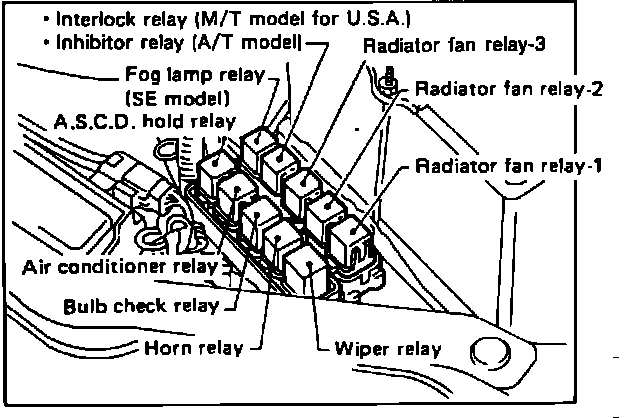

Relay Box Components:






AIR CONDITIONER RELAY
Located in the relay box ahead of the battery
