Nissan-Datsun
>>
1993
>>
Maxima V6-2960cc 3.0L SOHC MFI (VG30E)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Major Overhaul Diagrams and Information
Major Overhaul Diagrams and Information

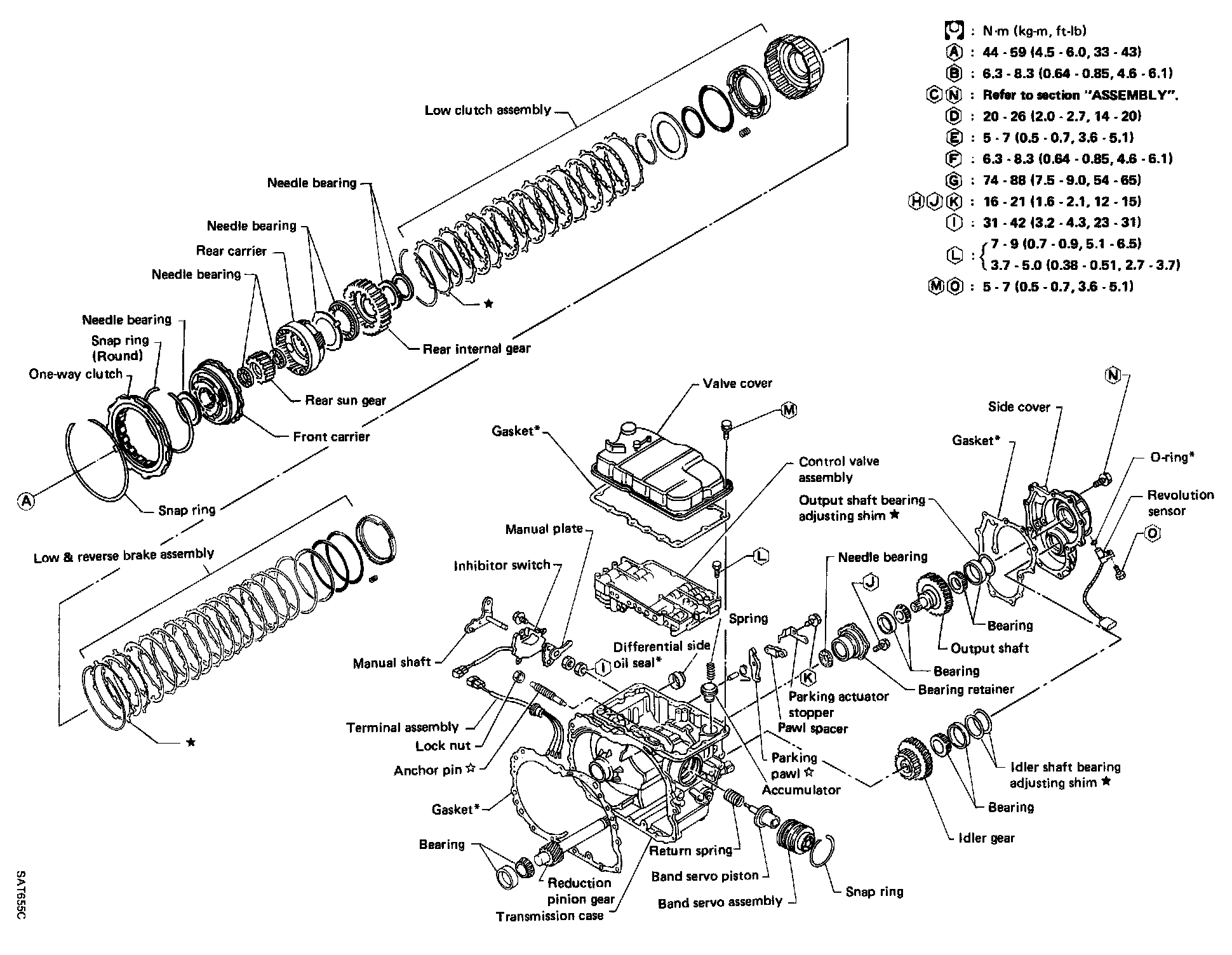

RE4F02A Part 1:
RE4F02A Part 2:
Oil Channels In Oil Pump Cover:
Oil Channels In Transmission Case:
Oil Channels In Converter Housing:
