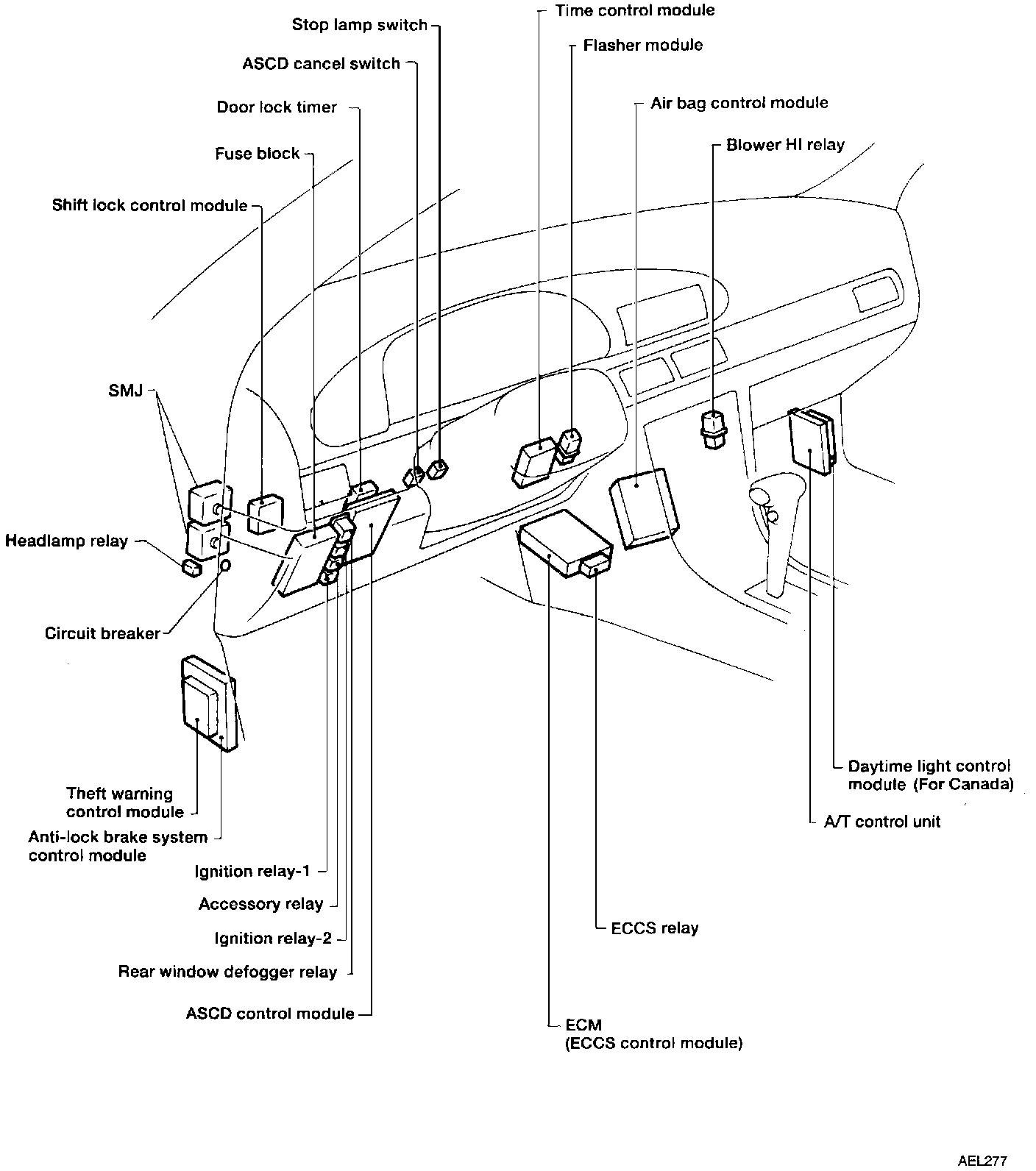

Electronic Concentrated Control System (ECCS) Relay
Electronic Concentrated Control System (ECCS) Relay
Passenger Compartment:
