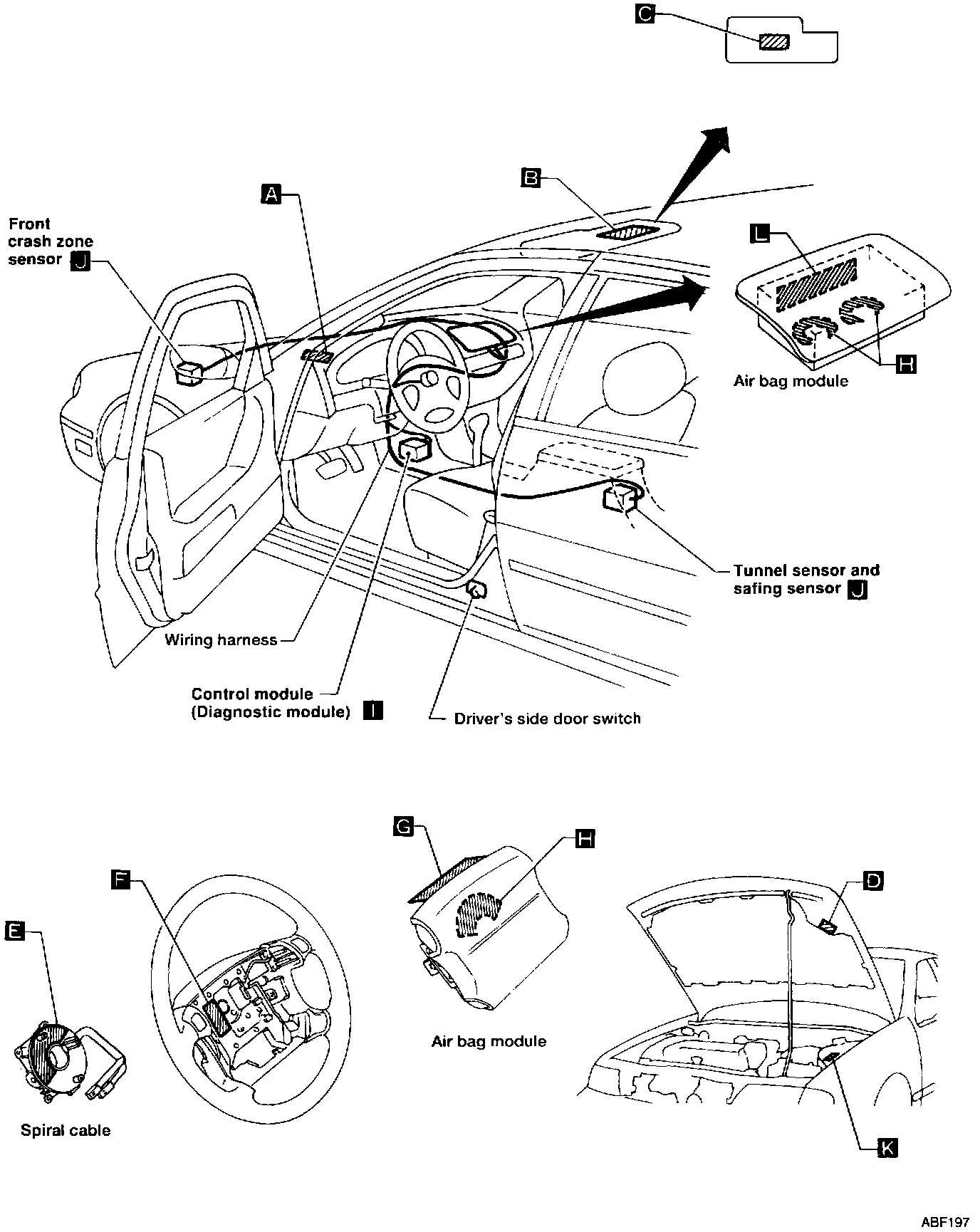

SRS Component Parts

SRS Component Parts:

A. SRS AIRBAG

B. INFORMATION

^ This car is equipped with air bag as a supplemental restraint system (S.R.S.). To help protect front occupants in a frontal collision.
^ Always use seat belts or child seat.
^ The system must be inspected 10 years after date of manufacture, as noted on the certification label located on the left front door.
^ If any of the following conditions occur, the system must be serviced: the air bag" lamp does not go on, flashes intermittently or remains on.

C. NOTICE

^ This car is equipped with air bags to supplement the seat belts.
^ Always use seat belts and child seat.
^ Child seats: use in rear seat. If used in passenger seat, set child seats forward facing and move as far from dash as possible.

D. WARNING

^ This car is equipped with air bag system to supplement the seat belt(s).
^ All SRS electrical wiring and connectors are colored yellow.
^ Do not use electrical test equipment on these circuits.
^ Tampering with or disconnecting the SRS wiring and connectors could result in accidental deployment of the air bags or make the system inoperative, which may result in serious injury.

E. CAUTION

^ Before assembly;
- Line up the front wheels straight ahead.
- Align the arrow with the yellow mark on the side gear.
^ No serviceable parts inside.
^ Do not disassemble or tamper.

G. WARNING

^ This airbag module can not be repaired. see service manual for instructions. (on diagnosis and replacement.)
^ Do not diagnose using electrically powered test equipment or probing devices.
^ Tampering or mishandling can result in personal injury.
^ Store the removed airbag module with the pad surface up.

H. DANGER POISON

^ Keep out of the reach of children.
^ Contains Sodium Azide and Potassium Nitrate.
^ Contents are poisonous and extremely flammable.
^ Contact with Acid, water or heavy metals may produce harmful and irritating gases or explosive compounds.
^ do not dismantle, incinerate or bring into contact with electricity or store at temperatures exceeding 200°f.
^ First Aid: If contents are swallowed, induce vomiting
- For Eye contact, flush eyes with water for 15 minutes.
- If gases from acid or water contact are inhaled, seek fresh air.
- In every case, get prompt medical attention.


I. CAUTION

^ No serviceable parts inside.
^ Do not disassemble or tamper.
^ Do not drop; keep dry.
^ While removed, store in a clean and dry area.
^ If wet condition occurs. this unit must be serviced.


J. WARNING

^ Do not disassemble or tamper.
^ Dismantling and installation should only be performed by trained personnel.

K. CAUTION

^ To avoid damaging the SRS spiral cable, remove the steering wheel before removing the steering joint.

L. WARNING

^ This air bag module can not be repaired.
^ Do not diagnose using electrically powered test equipment or probing devices.
^ Tampering or mishandling can result in personal injury.
^ Store the removed airbag module with the pad or cover surface up.
