Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

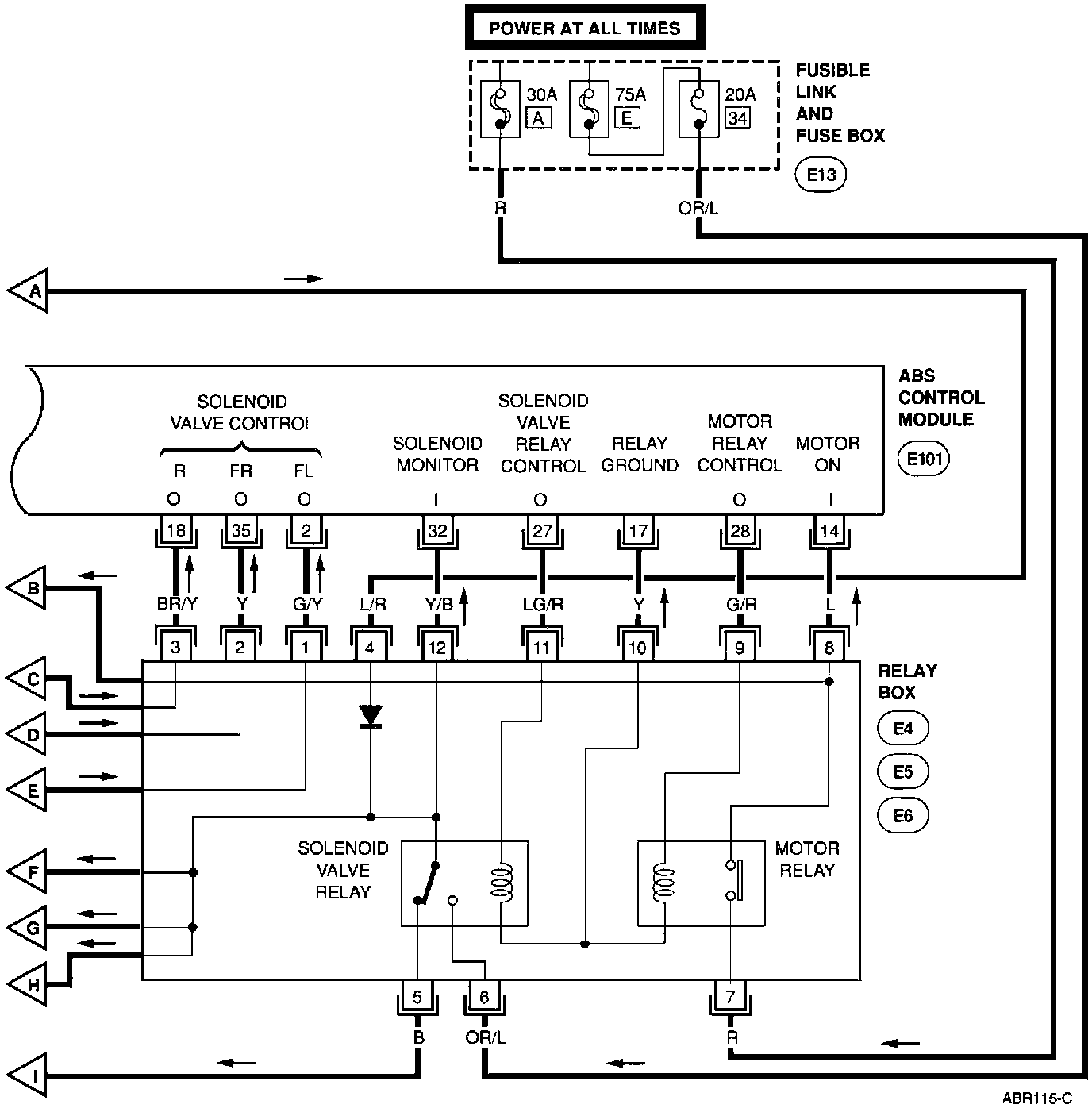

Anti-Lock Brake System, Part 1 Of 3:
Anti-Lock Brake System, Part 2 Of 3:
Anti-Lock Brake System, Part 3 Of 3:
