Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
1994
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

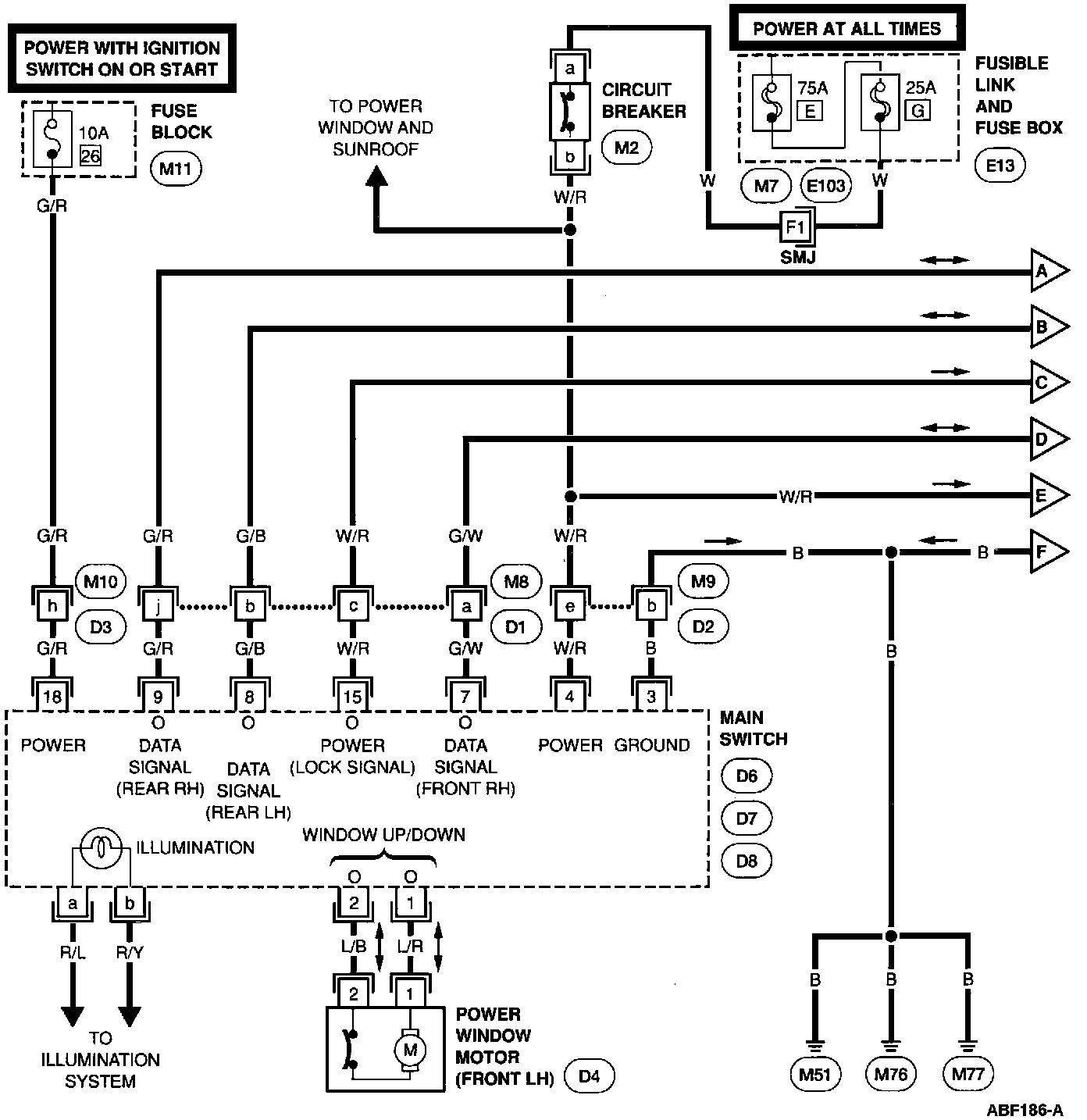

Power Window Wiring Diagram (Part 1 Of 3):

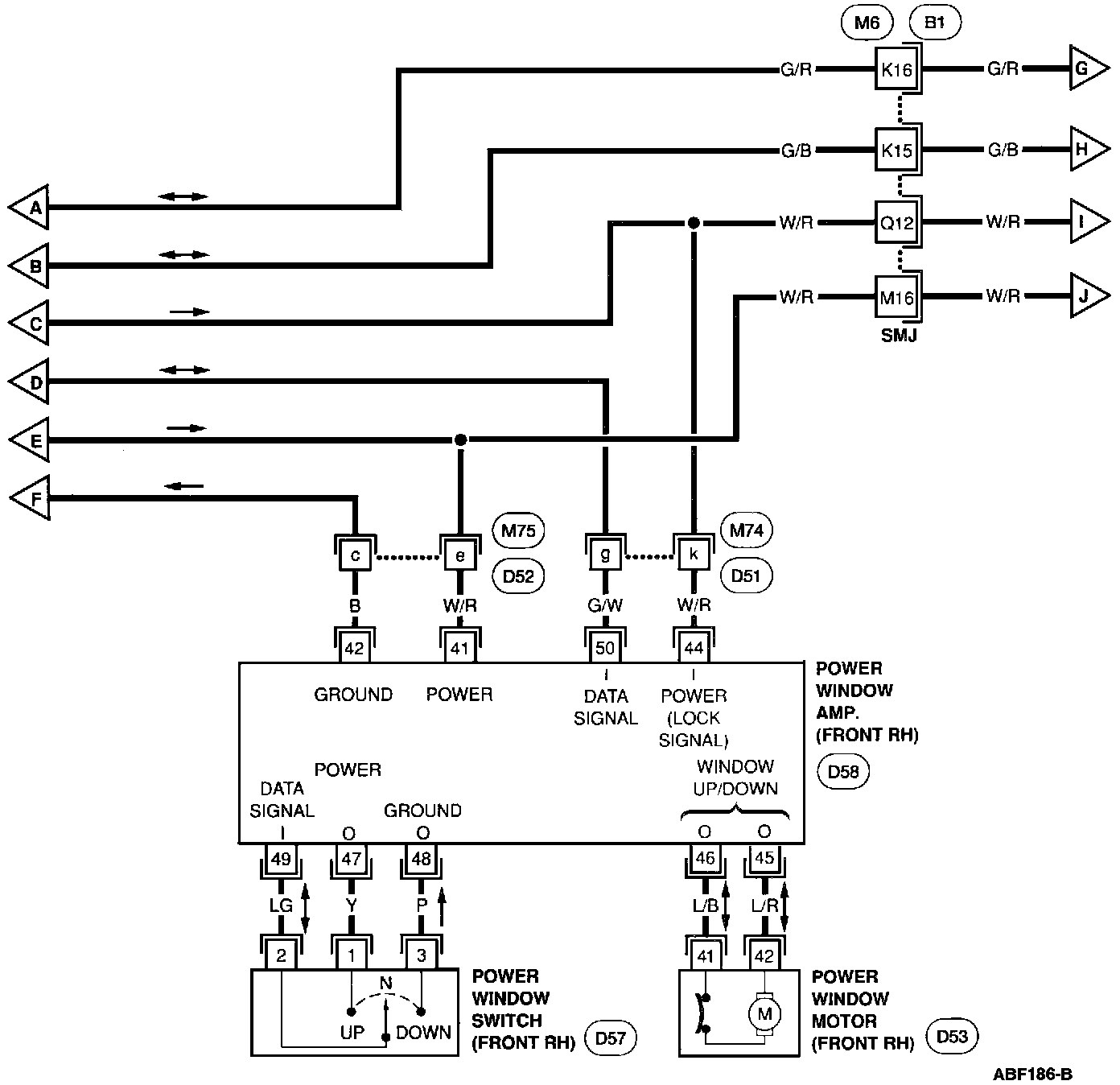

Power Window Wiring Diagram (Part 2 Of 3):
Power Window Wiring Diagram (Part 3 Of 3):
