Electrical Diagrams

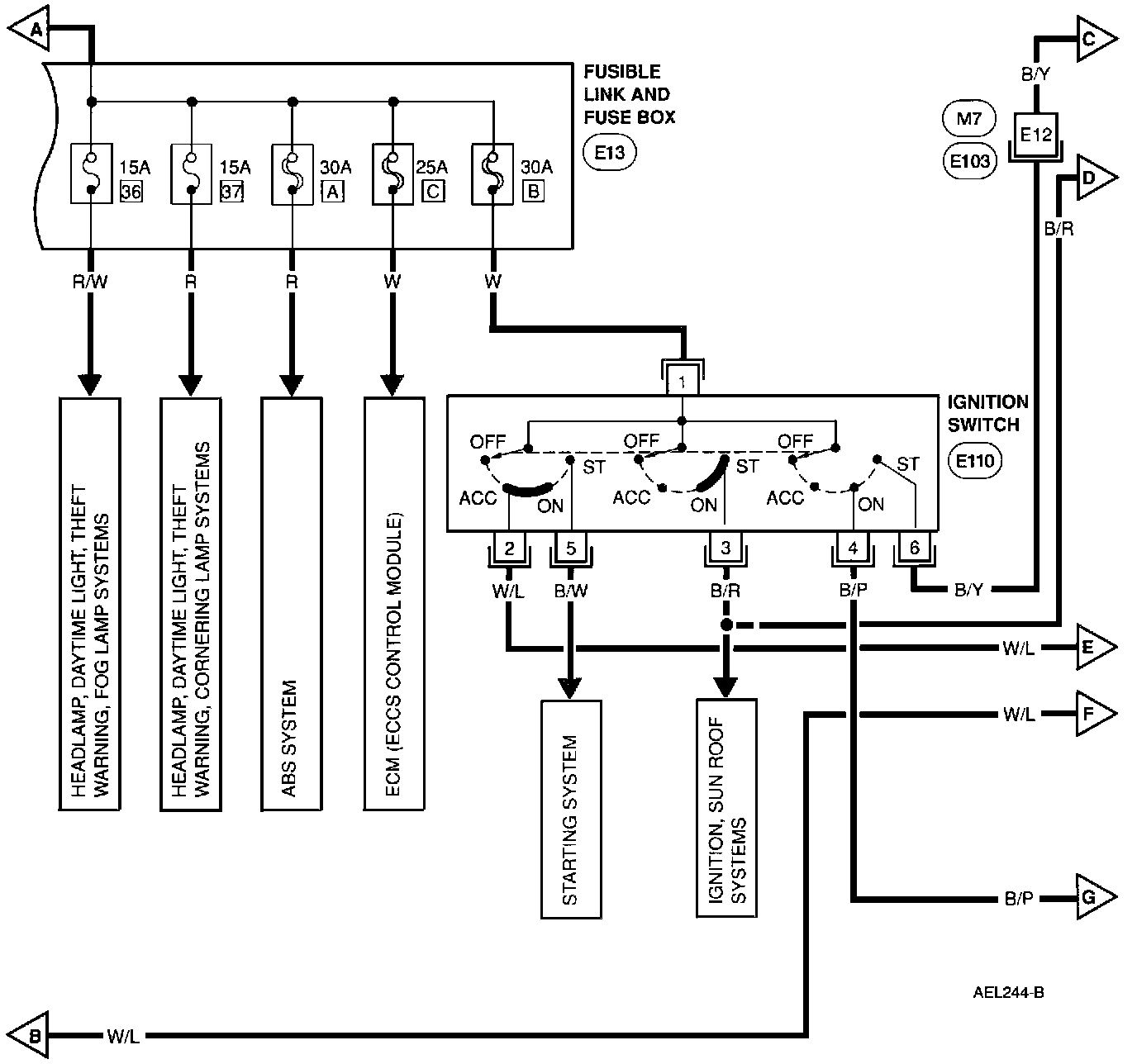

Power Supply Routing Wiring Diagram (Part 1 Of 5):

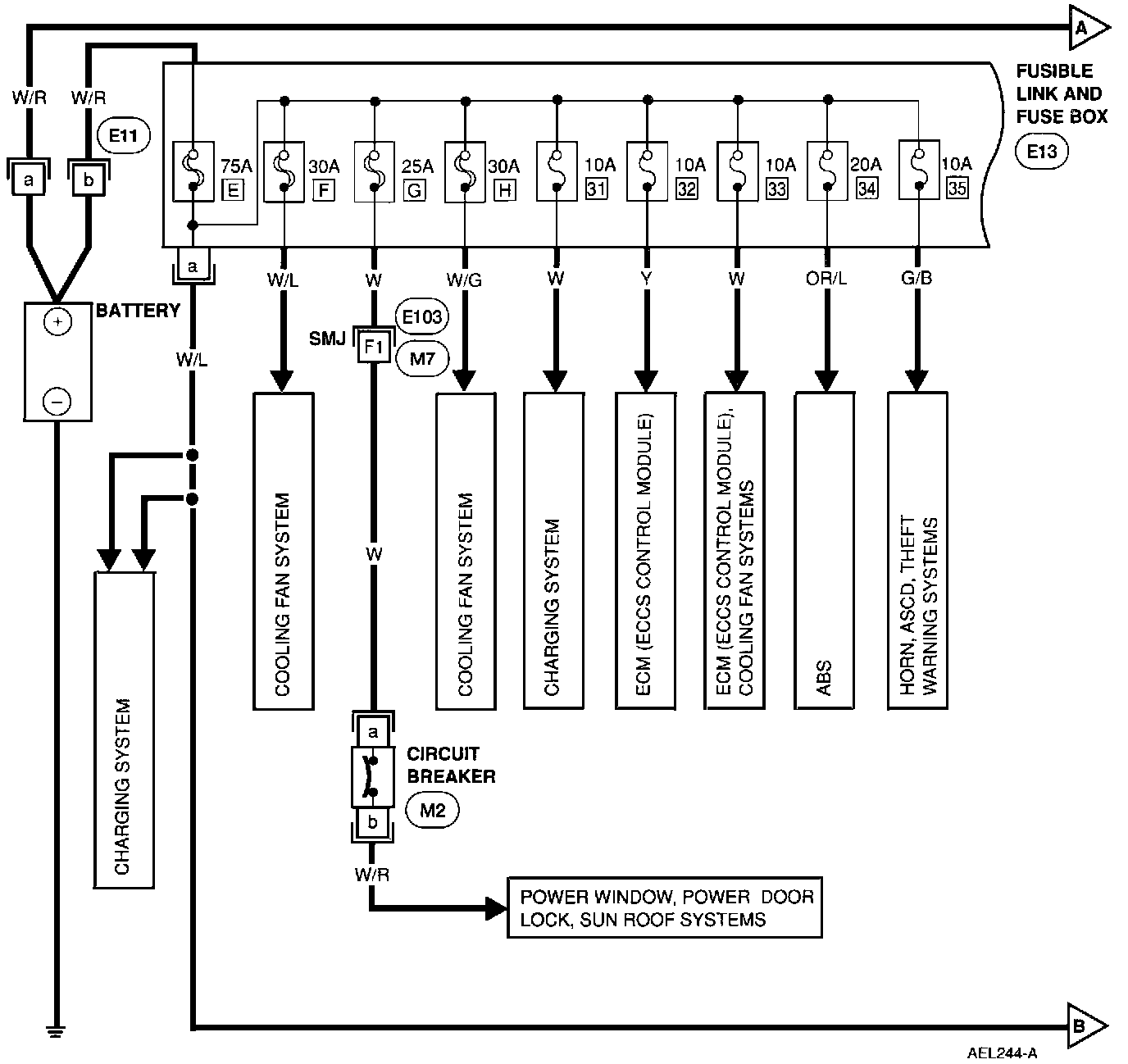

Power Supply Routing Wiring Diagram (Part 2 Of 5):

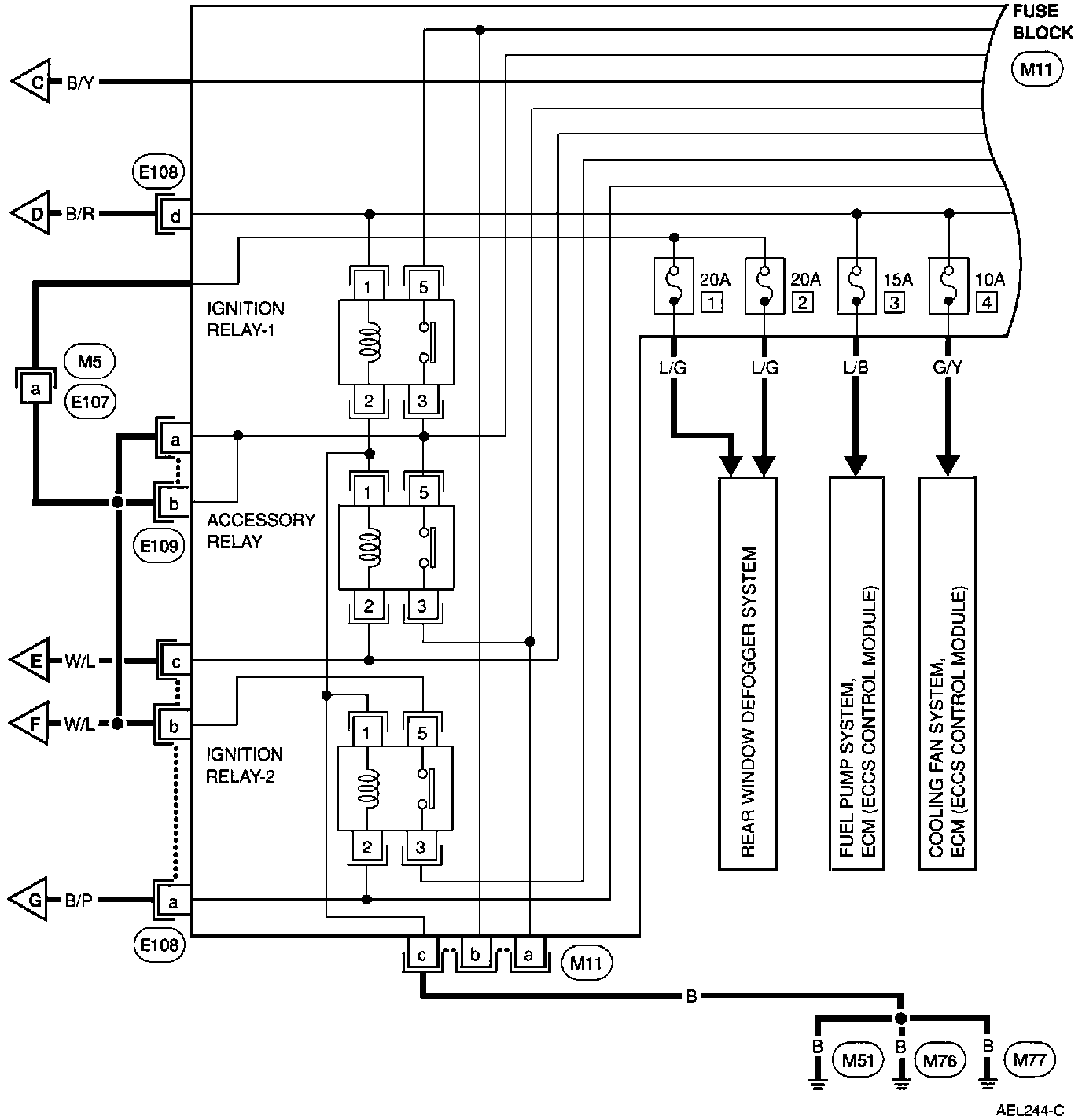

Power Supply Routing Wiring Diagram (Part 3 Of 5):

Power Supply Routing Wiring Diagram (Part 4 Of 5):

Power Supply Routing Wiring Diagram (Part 5 Of 5):
