A/T - No Reverse
Classification: AT94-003aSection: Auto. Transmission
Reference: TECHNICAL BULLETIN NTB94-058a
Models: Altima; Quest; Maxima
Date: July 28, 1994
F04 AUTOMATIC TRANSMISSION, NO REVERSE
NOTE:
This is an amended Service Bulletin which presents revised Warranty Information. Please the previously-issued Service Bulletin, NTB94-058 (AT-003).
APPLIED MODELS:
1993 - 1994 Altima (U13)
1993 - 1994(*) Quest (V40)
[(*) 10/01/93 Build Date: refer to date stamped on driver's
side front strut tower.]
1993 - 1994 Maxima SE (J30)
COUNTERMEASURE APPLIED UNIT #: 4X00838 [Altima (U13); Maxima (J30)]
(Transmission Serial #) 4X50237 [Quest (V40)]
SERVICE INFORMATION:
Some of the above-referenced vehicles may not engage reverse gear when the selector lever is placed into "R". CONSULT may not detect any malfunction(s). There are no external ATF leaks. The ATF is at the correct level, but is burned.
REPAIR INFORMATION:
Replace the Control Valve Assembly and the Low & Reverse Brake Parts (Dished Plate, Piston, and Retainer), together (as a set), to resolve this incident. Refer to the "AT" Section of the appropriate Service Manual for information concerning disassembly/assembly operations.
CAUTION:
Replacement of the Control Valve Assembly, without changing the Low & Reverse Brake Parts, will cause a secondary incident of N -> R shock.

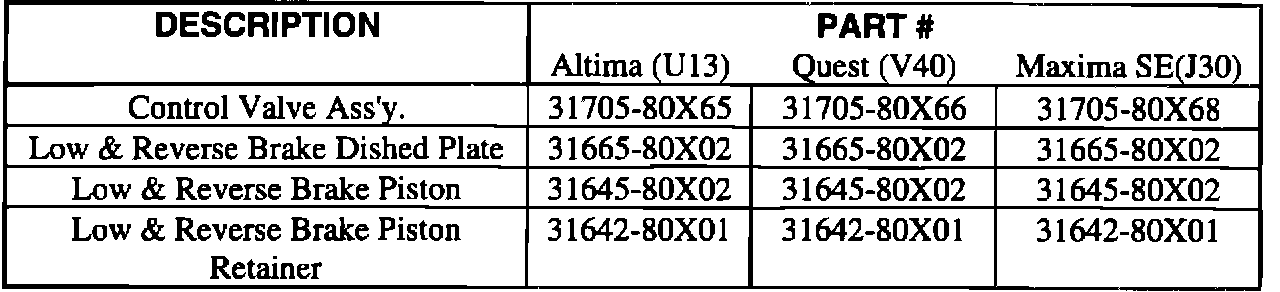

PARTS INFORMATION

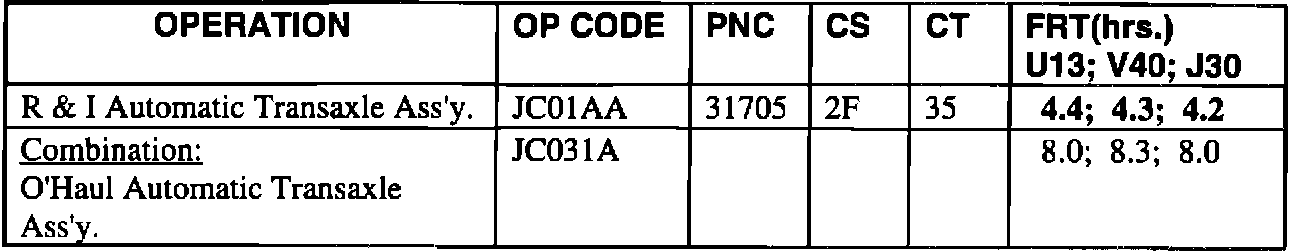

WARRANTY INFORMATION
