Radiator Cooling Fan: Testing and Inspection

Cooling Fan Test:

COOLING FAN MOTORS 1 AND 2
1. Disconnect cooling fan motor harness connectors.

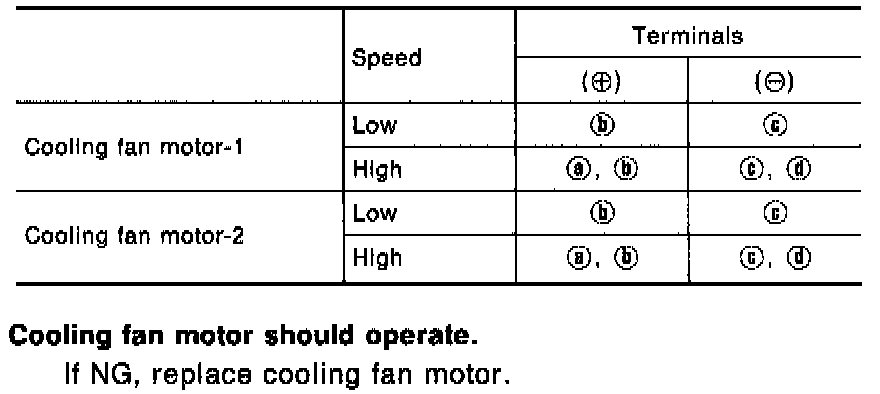

Cooling Fan Operation:

2. Supply cooling fan motor terminals with battery voltage and check operation.
Cooling fan motor should operate. If NG, replace cooling fan motor.
