Computers and Control Systems: Locations

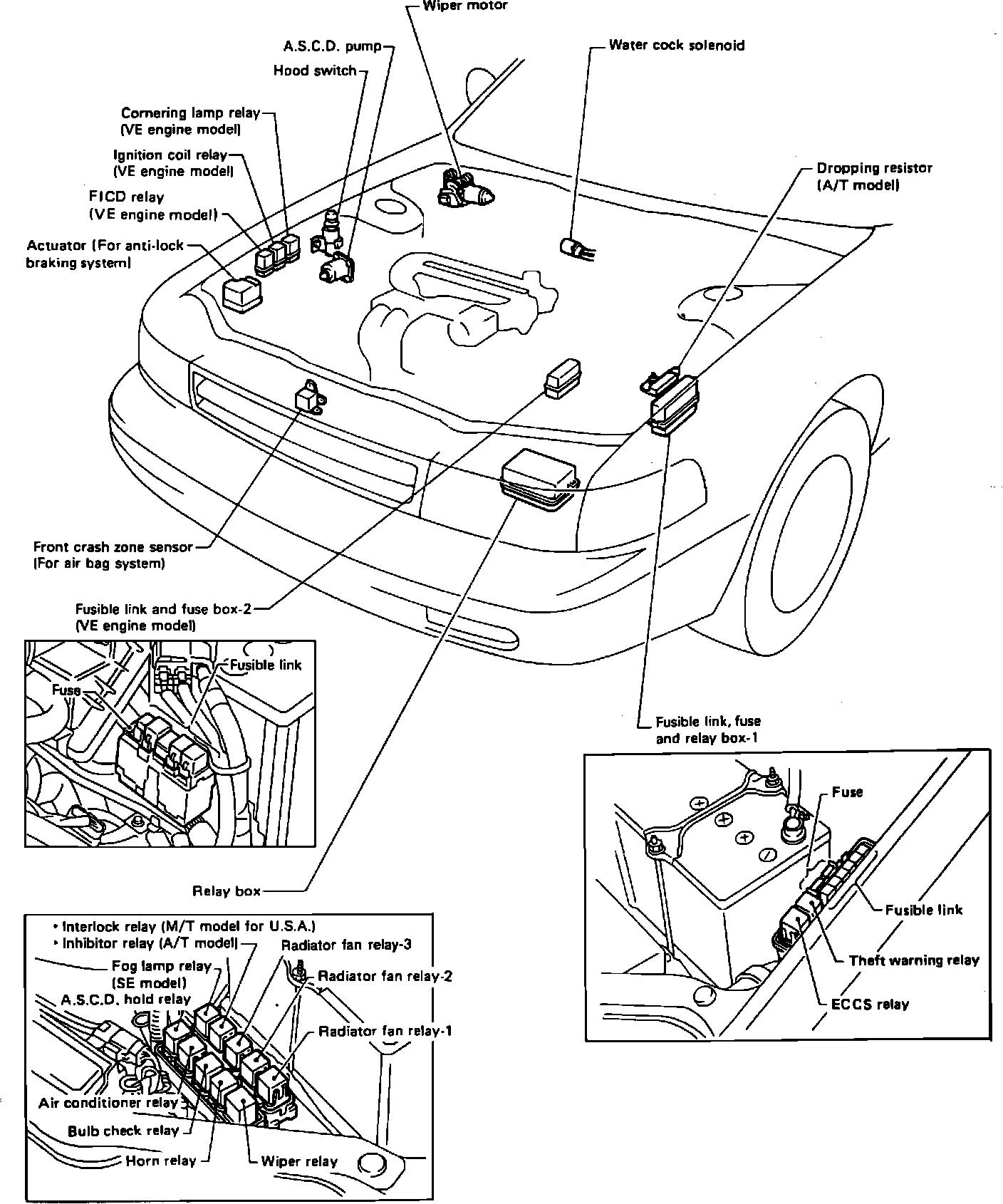

Fuse And Relay Box Underhood Locations:

FUSE AND FUSE LINKS

Engine Compartment
Located in the Fuse Link Box next to the battery.

Interior
Located in the Fuse Box Panel, left side dash.
