Evaporator Core: Service and Repair

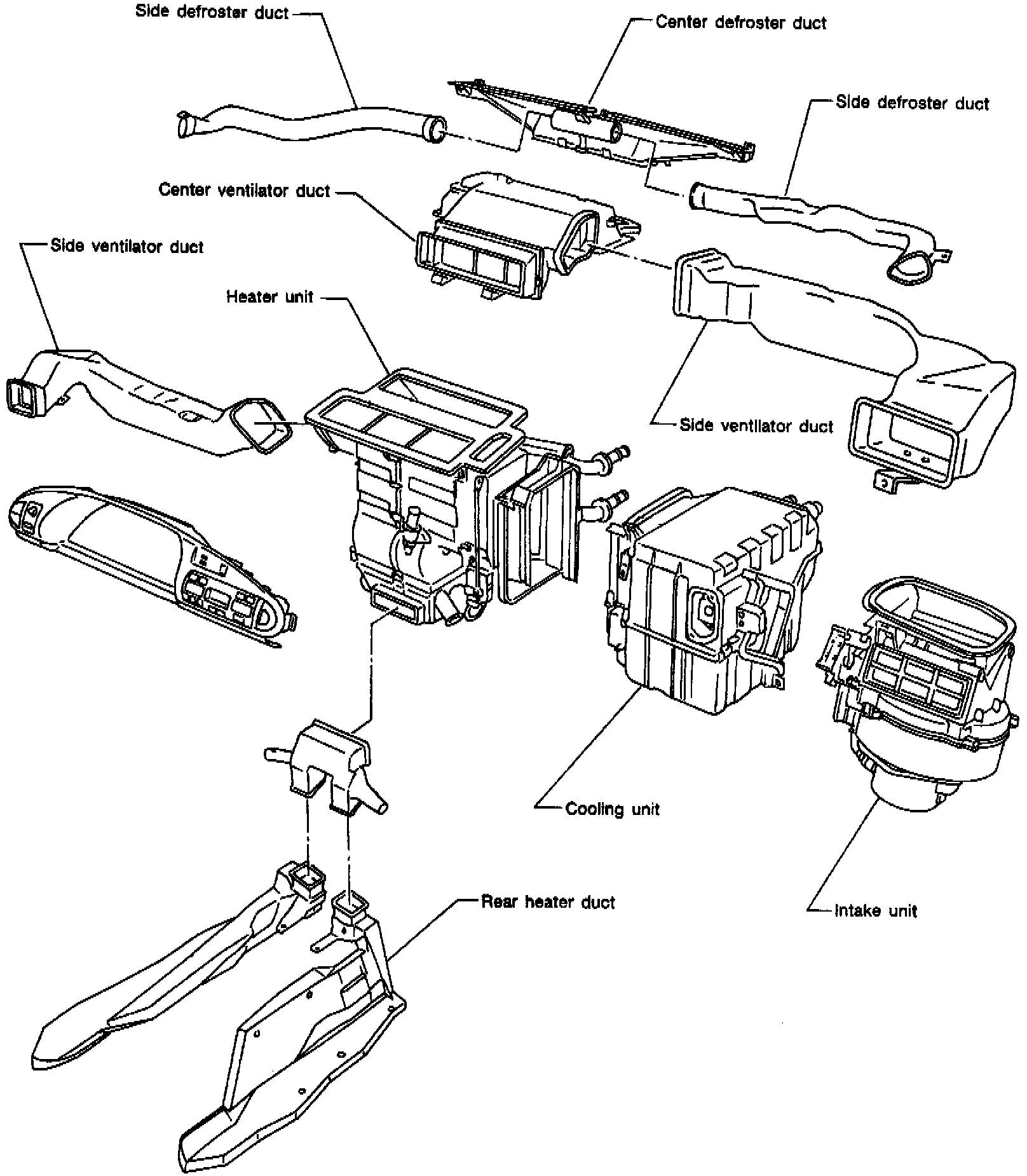

Fig. 7 Exploded View Of Heater System:

1. Disconnect battery ground cable and discharge A/C system.
2. Remove passenger side instrument lower cover and glove compartment.
3. Disconnect wiring harness connectors to intake unit.
4. Remove intake unit.
5. Disconnect wiring harness connectors to evaporator.
6. Remove cooling unit.
7. Separate cooling unit case halves and remove evaporator, Fig. 7.
8. Reverse procedure to install.
