Low Fuel Lamp/Indicator: Testing and Inspection

Fuel Warning Lamp Sensor Check:

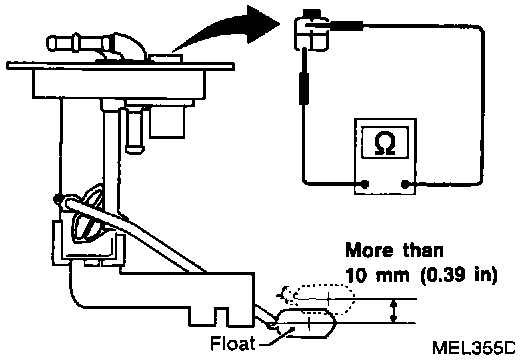

^ Raise the float with fingers more than the distance shown in the figure at left. Make sure that continuity does not exist.

CAUTION: Do not move the float beyond its mobile range
